LH60G-QD (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )WG..DLX,STD

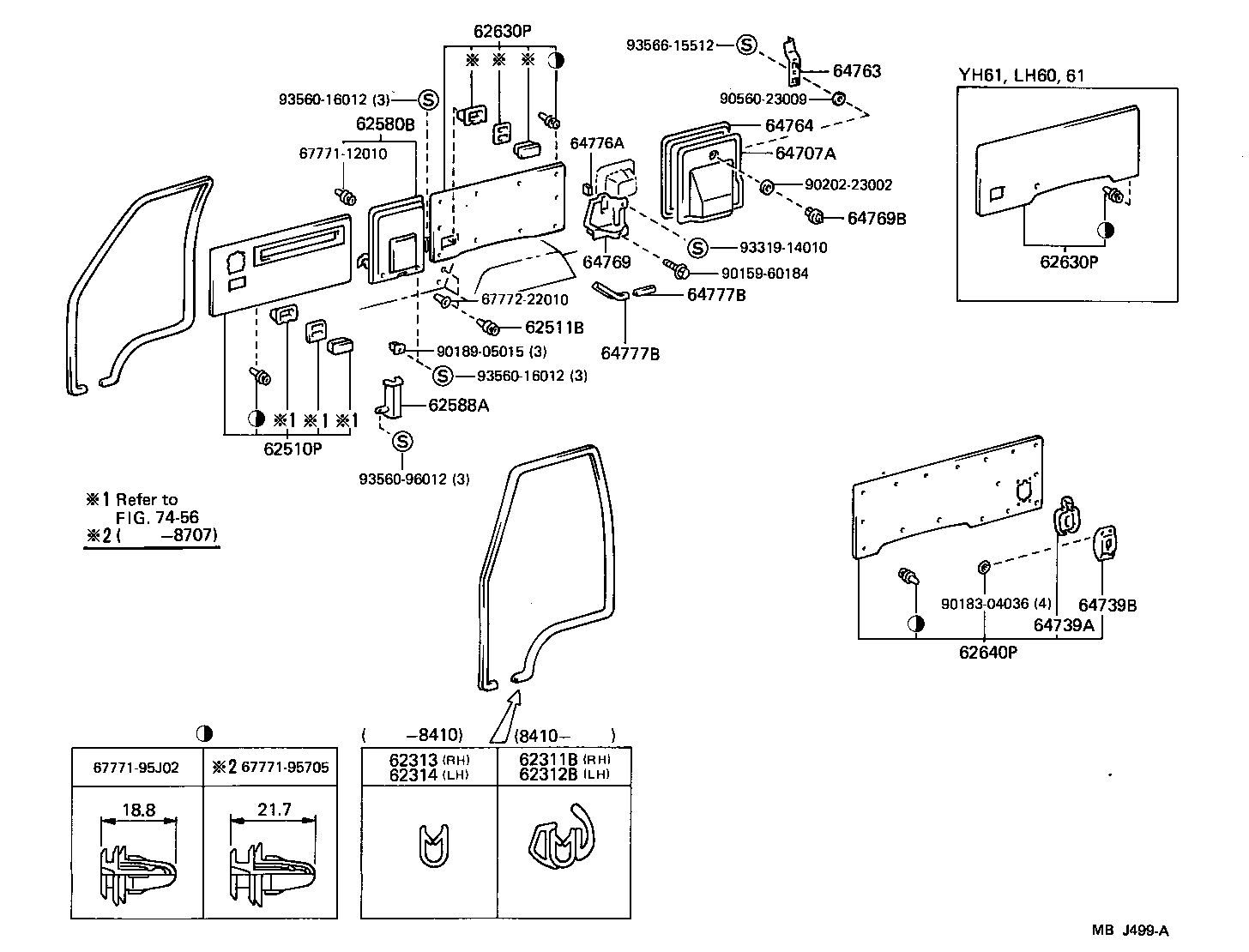

Click highlighted areas on diagram

diagram 62311B 62312B 62313 62314 62510P 62511B 62580B 62588A 62630P 62630P 62640P 64707A 64739A 64739B 64763 64764 64769 64769B 64776A 64777B 64777B 6777112010 6777195705 6777195J02 6777222010 7456 9015960184 9018304036 9018905015 9020223002 9056023009 9331914010 9356016012 9356016012 9356096012 9356615512
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-95J0605

LH50,60,YH51,61..(COM,WG)..(DLX,STD)

BEIGE,BEIGE

 1
62510-95J0805

LH50,60,YH51,61..WG..(DLX,STD)

W/*REH,BEIGE,BEIGE

 1
62580B - BOARD ASSY, SIDE HEATER COVER, RH
62580-95J0005

LH50,60,70,YH51,61,71..(DLX,GL,STD)..(09S,10S)

BEIGE,BEIGE

 1
62580-95J0004

LH5#,6#,YH51,61..(CTM,DLX,GL)..(09S,10S)

BLUE GRAY,BLUE

 1
62588A - COVER, SIDE HEATER, LOWER
62588-95J0004

LH5#,6#,YH51,61..(CTM,DLX,GL)..(09S,10S)

BLUE GRAY,BLUE

 1
62588-95J0005

LH50,60,70,YH51,61,71..(DLX,GL,STD)..(09S,10S)

BEIGE,BEIGE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95J0605

LH60,YH61..10S

W/*REH,BEIGE,BEIGE

 1
62630-95J0805

LH60,YH61..10S

BEIGE,BEIGE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95J0605

LH60,YH61..10S

W/*REH,BEIGE,BEIGE

 1
62630-95J0805

LH60,YH61..10S

BEIGE,BEIGE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J0905

LH60,YH61..10S

BEIGE,BEIGE

 1
62640-95J0705

LH60,YH61..DLX..10S

W/*RW,BEIGE,BEIGE

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-95J01

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

 1
64739A - COVER, DECK TRIM REAR WASHER
85365-95J0005

LH50,60,70,YH5#,61,71..DLX,GL

BEIGE,BEIGE

 1
85365-95J0004

LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S)

BLUE GRAY,BLUE

 1
64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER
85366-95J0005

LH50,60,70,YH5#,61,71..DLX,GL

BEIGE,BEIGE

 1
85366-95J0004

LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S)

BLUE GRAY,BLUE

 1
64763 - STOPPER, TOOL COVER
64763-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

 1
64764 - PACKING, TOOL COVER
64764-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

 1
64769 - CASE SUB-ASSY, TOOL BAG
64709-95J01

LH6#,7#,YH6#,71

 1
64769B - KNOB, TOOL COVER
64769-1301001

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

BLACK,BLACK

 1
64776A - SPACER, TOOL BAG CASE
64776-95J00

LH5#,6#,7#,YH5#,6#,71

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

*H,L=40

 1
58426-95700

LH5#,6#,7#,YH5#,6#,71

L=170

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD

*H,L=40

 1
58426-95700

LH5#,6#,7#,YH5#,6#,71

L=170

 1
Common parts
67771-12010
67771-95705
67771-95J02
67772-22010
90159-60184
90183-04036
90189-05015
90202-23002
90560-23009
93319-14010
93560-16012
93560-96012
93566-15512
Linked diagrams
7456
