LH60B-QD (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)CTM,DLX,GL,STD ; (8508- )CTD,DLX,GL

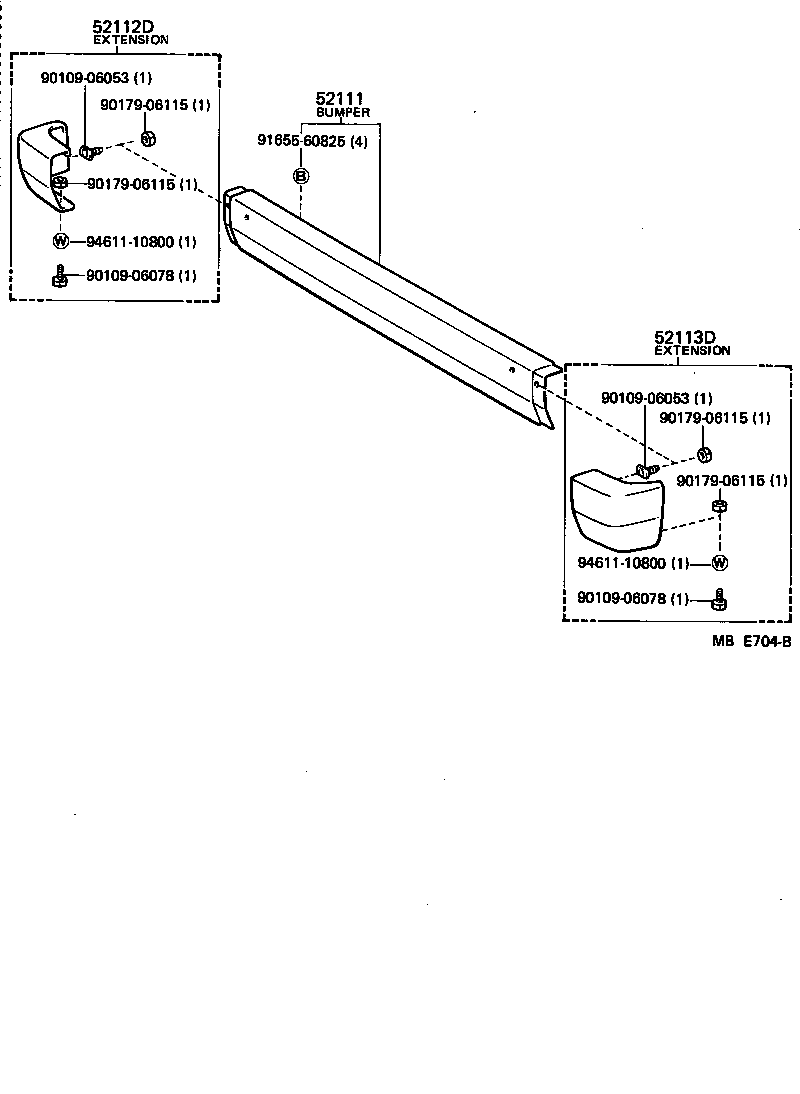

Click highlighted areas on diagram

diagram 52111 52112D 52113D 9010906053 9010906053 9010906078 9010906078 9017906115 9017906115 9017906115 9017906115 9165560825 9461110800 9461110800
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52018-29065

LH6#,YH6#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-29045

LH6#,YH6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-29045

LH6#,YH6#

 1
Common parts
90109-06053
90109-06078
90179-06115
91655-60825
94611-10800
