LH56V-MNFE (1987)
Toyota Hiace Van,Wagon

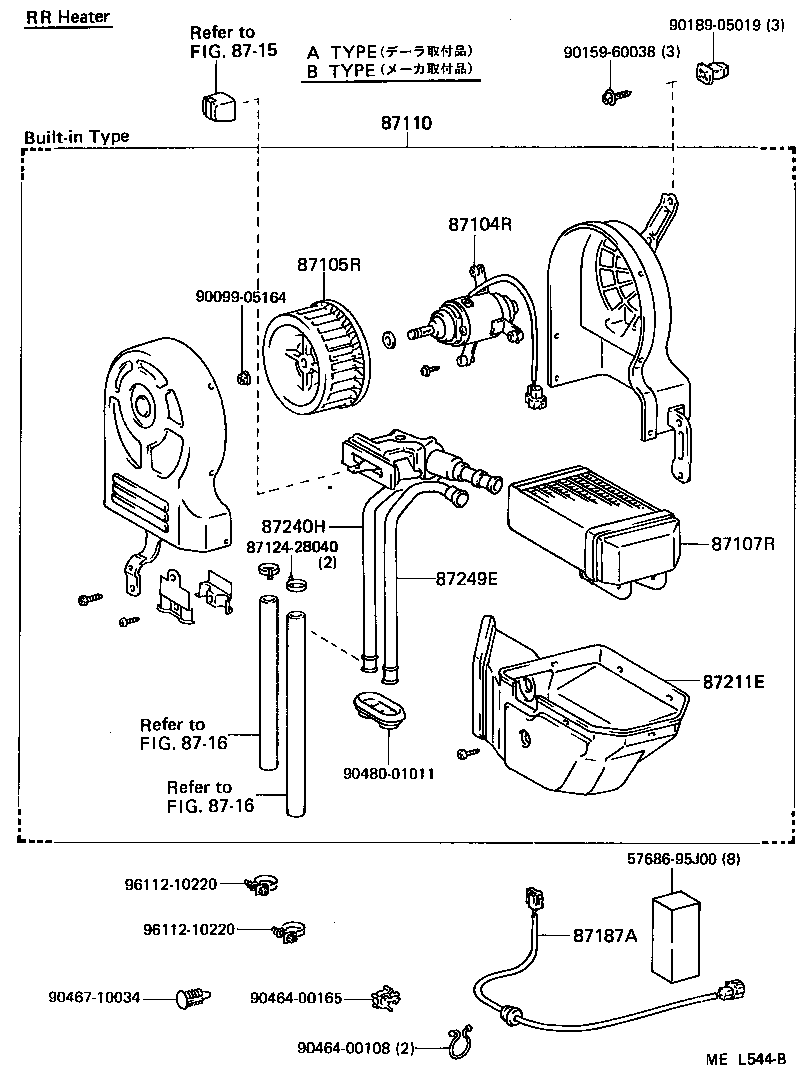

ILLUST NO. 3 OF 3(8708- )WT ; (8708- )V5D..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211E - DUCT, AIR | ||||
| 87211-95J10 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87211-95J10 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211-95J10 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 57686-95J00 | ||||
| 87124-28040 | ||||
| 90099-05164 | ||||
| 90159-60038 | ||||
| 90189-05019 | ||||
| 90464-00108 | ||||
| 90464-00165 | ||||
| 90467-10034 | ||||
| 90480-01011 | ||||
| 96112-10220 | ||||
| Linked diagrams | ||||
| 8715 | ||||
| 8716 | ||||

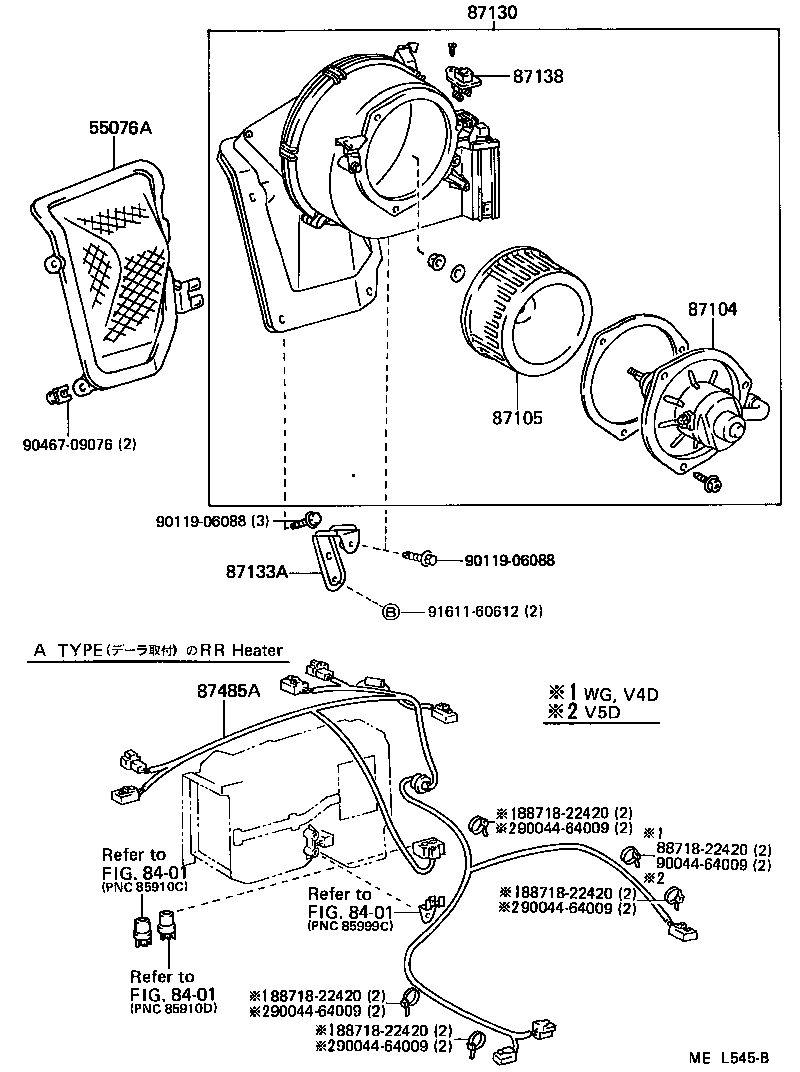

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55076A - NET SUB-ASSY, AIR DUCT | ||||
| 55076-95J00 |
LH56,61,71,YH5#,6#,71 |
1 | ||
| 55076-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-16020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87133A - BRACKET, BLOWER | ||||
| 87133-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 88718-22420 | ||||
| 90044-64009 | ||||
| 90119-06088 | ||||
| 90467-09076 | ||||
| 91611-60612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

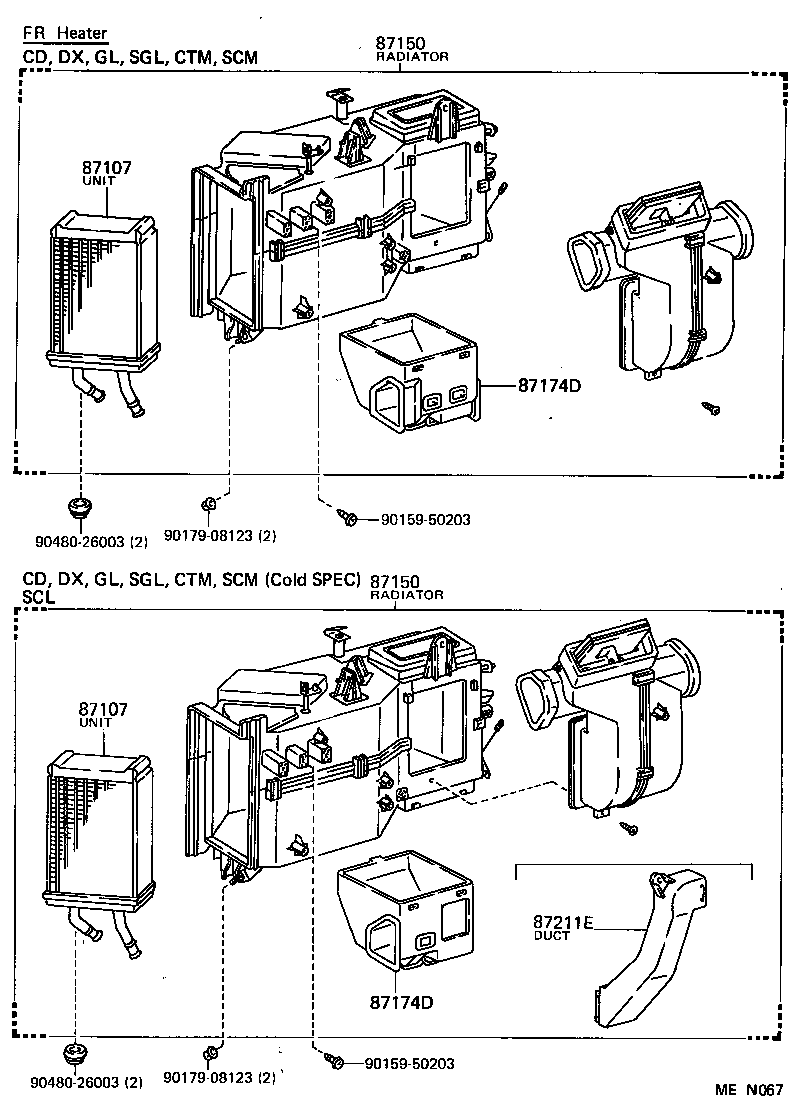

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87107-95J06 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-95J06 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87107-95J06 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87107-95J06 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-95J06 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87107-95J06 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-95J01 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87150-95J01 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-95J01 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87150-95J01 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87174D - GUIDE, AIR | ||||
| 87174-95J01 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87174-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87174-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87174-95J01 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87174D - GUIDE, AIR | ||||
| 87174-95J01 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87174-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87174-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 87174-95J01 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-95J10 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87211-95J10 |
YH5#,6#,71..CD,CTM,DX,GL,SCM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211-95J10 |
LH56,6#,71,YH50,52,57,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-50203 | ||||
| 90179-08123 | ||||
| 90480-26003 | ||||
