LH56V-MNFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CD,DX,GL,SGL

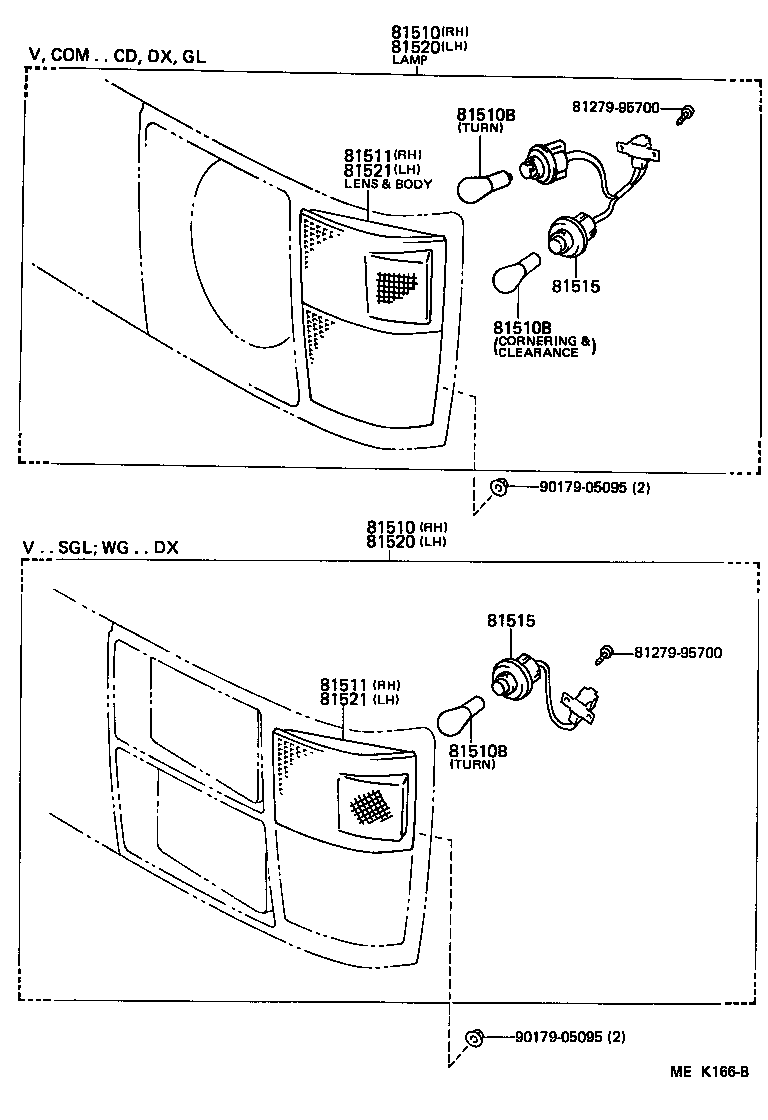

Click highlighted areas on diagram

diagram 8127995700 8127995700 81510 81510 81510B 81510B 81510B 81511 81511 81515 81515 81520 81520 81521 81521 9017905095 9017905095
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

12V 21W,TURN

 2
90981-13036

LH51..CTM;LH66..DX..08S;LH66..(DX,GL)..05S;YH51..CTM,GL,SCL,SCM;LH51..(CD,DX,GL,SCL,SCM)..(03S,05S,06S,07S,08S);LH56,61,71,YH50,52,57,6#,71..(CD,DX,GL,SCM)..(03S,05S,06S,08S,09S,15S)

12V 35/5W,CORNERING,CLEARANCE

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

12V 21W,TURN

 2
90981-13036

LH51..CTM;LH66..DX..08S;LH66..(DX,GL)..05S;YH51..CTM,GL,SCL,SCM;LH51..(CD,DX,GL,SCL,SCM)..(03S,05S,06S,07S,08S);LH56,61,71,YH50,52,57,6#,71..(CD,DX,GL,SCM)..(03S,05S,06S,08S,09S,15S)

12V 35/5W,CORNERING,CLEARANCE

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

12V 21W,TURN

 2
90981-13036

LH51..CTM;LH66..DX..08S;LH66..(DX,GL)..05S;YH51..CTM,GL,SCL,SCM;LH51..(CD,DX,GL,SCL,SCM)..(03S,05S,06S,07S,08S);LH56,61,71,YH50,52,57,6#,71..(CD,DX,GL,SCM)..(03S,05S,06S,08S,09S,15S)

12V 35/5W,CORNERING,CLEARANCE

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 2
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95J05

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
Common parts
81279-95700
90179-05095
