LH56V-MNFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )LH51,61,71,YH50,51,52,6#,71..COM,V

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26330

LH56,66..05S;LH66..(DX,SGL)..08S

 1
04443-26220

YH50,51,52,6#,71..COM,V

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44606-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44610 - BOOSTER ASSY, BRAKE
44610-26350

LH56,66..05S;LH66..(DX,SGL)..08S

 1
44610-26260

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44621V - SEAL, BOOSTER BODY
44621-14030

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44621-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44628-60010

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44635B - KEY, VALVE STOPPER
44635-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44635-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44642-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )LH56,66

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26330

LH56,66..05S;LH66..(DX,SGL)..08S

 1
04443-26220

YH50,51,52,6#,71..COM,V

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44606-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44610 - BOOSTER ASSY, BRAKE
44610-26350

LH56,66..05S;LH66..(DX,SGL)..08S

 1
44610-26260

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44621V - SEAL, BOOSTER BODY
44621-14030

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44621-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44628-60010

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44635B - KEY, VALVE STOPPER
44635-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44635-28120

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

LH51,61,71,YH50,51,52,6#,71..COM,V

 1
44642-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44657D - CASE, REACTION DISC
44657-20800

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
Common parts
90179-08038

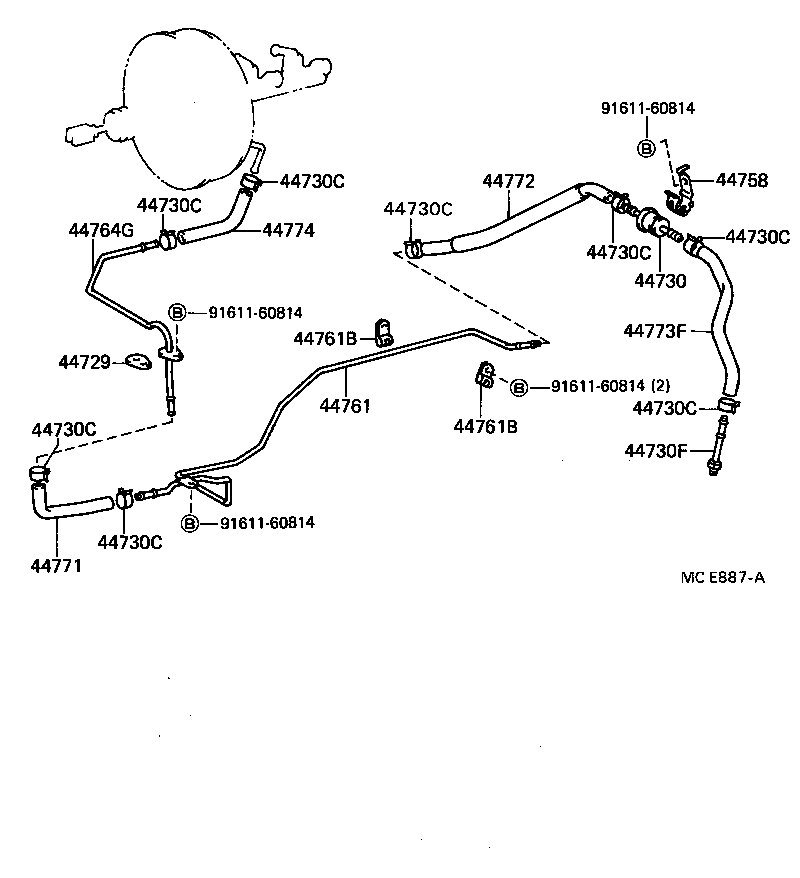

ILLUST NO. 2 OF 2(8708- )YH50,51,52,6#,71

Click highlighted areas on diagram

diagram 44729 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44758 44761 44761B 44761B 44764G 44771 44772 44773F 44774 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-26020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH50,51,52,6#,71

 1
44730-60040

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,71

 1
90405-09097

LH56,66..(DX,GL)..05S

ｱﾘ(ｴｱｺﾝﾃﾞｼﾖﾅ)

 1
90405-09104

LH56,66..05S;LH66..(DX,SGL)..08S

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26020

YH50,51,52,6#,71

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26110

LH51,61,71,YH50,51,52,6#,71..CBR,DSL

 1
44761-26140

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
90461-10221

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 3
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
90461-10221

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 3
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26010

YH5#,6#,71

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44772-26040

YH50,51,52,6#,71

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-26050

YH50,51,52,6#,71

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26070

YH50,51,52,6#,71..COM,V

 1
44774-26140

LH56,66..05S;LH66..(DX,SGL)..08S

 1
Common parts
91611-60814

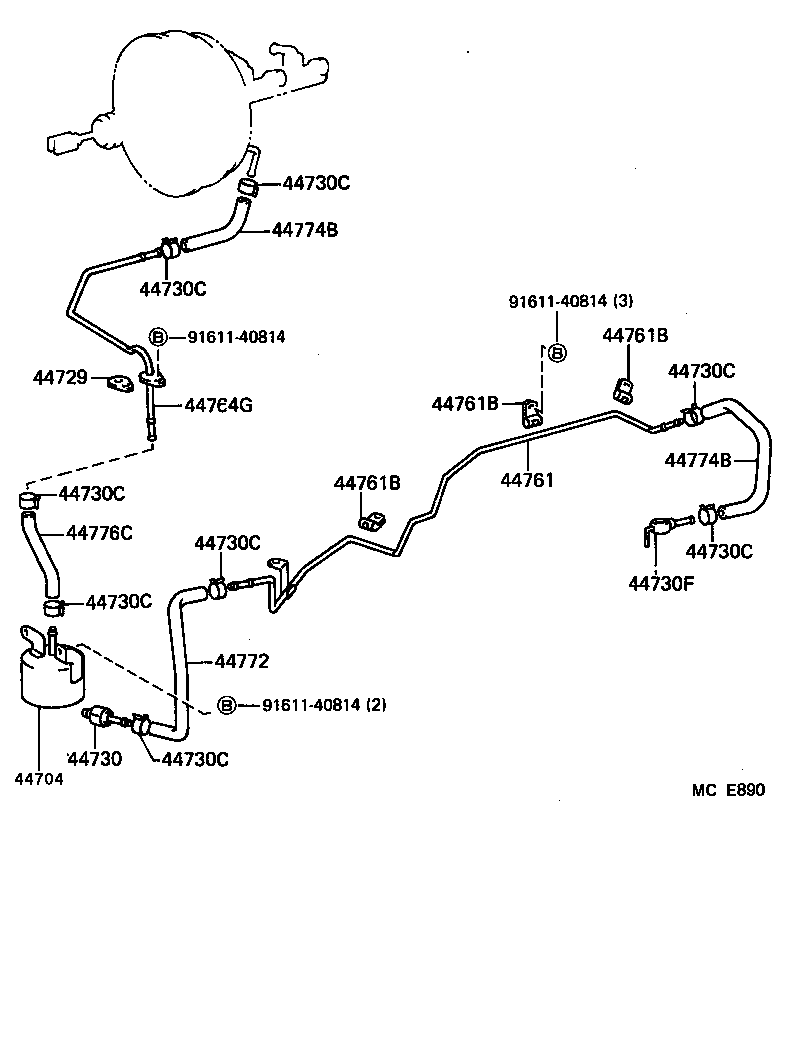

ILLUST NO. 2 OF 2(8708- )LH56,66

Click highlighted areas on diagram

diagram 44704 44729 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44761 44761B 44761B 44761B 44764G 44772 44774B 44774B 44776C 9161140814 9161140814 9161140814
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH50,51,52,6#,71

 1
44730-60040

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,71

 1
90405-09097

LH56,66..(DX,GL)..05S

ｱﾘ(ｴｱｺﾝﾃﾞｼﾖﾅ)

 1
90405-09104

LH56,66..05S;LH66..(DX,SGL)..08S

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26110

LH51,61,71,YH50,51,52,6#,71..CBR,DSL

 1
44761-26140

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
90461-10221

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 3
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
90461-10221

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 3
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
90461-10221

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 3
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44772-26040

YH50,51,52,6#,71

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-26120

LH56,66..05S;LH51,61,71..WG;LH66..(DX,SGL)..08S

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-26120

LH56,66..05S;LH51,61,71..WG;LH66..(DX,SGL)..08S

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
Common parts
91611-40814
