LH56V-MNFE (1987)
Toyota Hiace Van,Wagon
(8708- )2L..LH56,66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

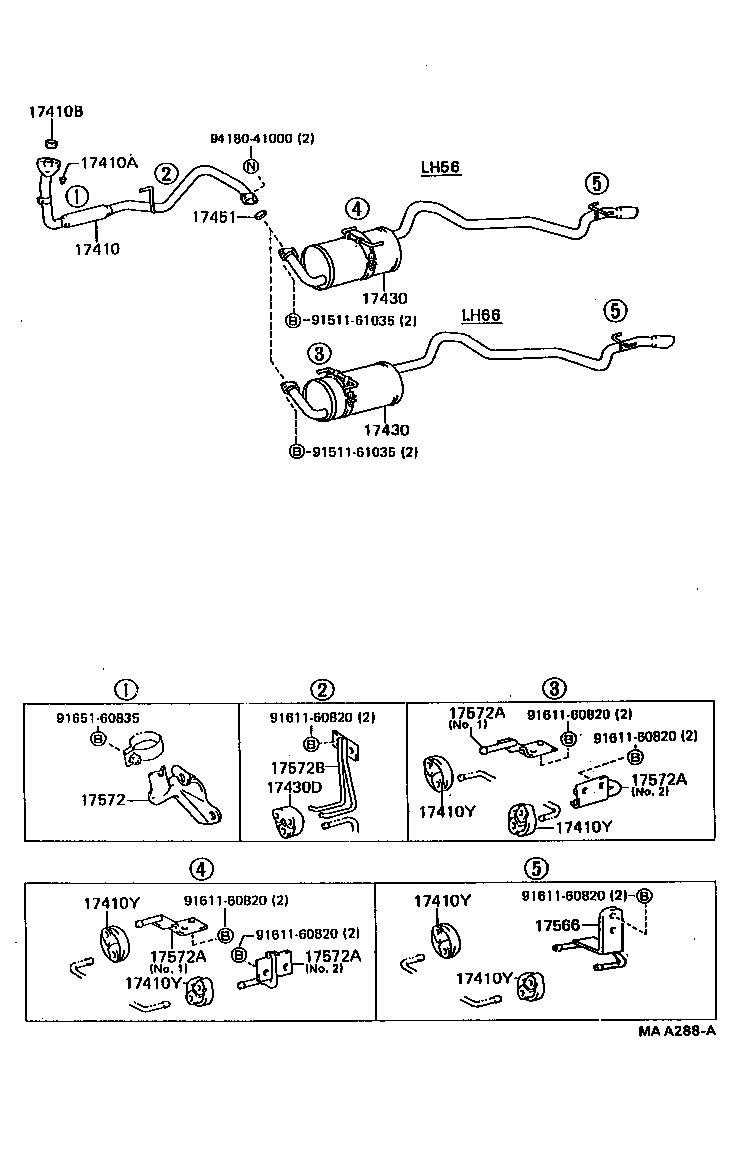

| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54490 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#,2Y,3Y#..LH5#,61,71,YH5#,6#,71 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-15010 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
4 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54671 |
2L..LH56 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54671 |
2L..LH56 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-13030 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17565-15010 |
2L..LH61,71;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..COM,V |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L,2Y,3Y..LH5#,61,71,YH50,51,61,71 |
1 | ||
| 90917-06004 |
2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17566 - BRACKET, TAIL PIPE, REAR | ||||
| 17566-71041 |
2L,3YU,3YJ..LH61,YH52,6#..ST |
1 | ||
| 17575-54030 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17566-71041 |
3YU..YH61;2L,2Y,3Y,3YJ..LH61,YH50,51,52,6#,71..ST |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-54141 |
2L..LH66..05S;2L..LH5#,61,71..MTM;2L..LH66..(DX,SGL)..08S |
1 | ||
| 17572A - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17563-54090 |
2L..LH56 NO.1 |
1 | ||
| 17573-71070 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.1 |
1 | ||
| 17573-54060 |
2L..LH56 NO.2 |
1 | ||
| 17573-71080 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.2 |
1 | ||
| 17572A - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17563-54090 |
2L..LH56 NO.1 |
1 | ||
| 17573-71070 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.1 |
1 | ||
| 17573-54060 |
2L..LH56 NO.2 |
1 | ||
| 17573-71080 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.2 |
1 | ||
| 17572A - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17563-54090 |
2L..LH56 NO.1 |
1 | ||
| 17573-71070 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.1 |
1 | ||
| 17573-54060 |
2L..LH56 NO.2 |
1 | ||
| 17573-71080 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.2 |
1 | ||
| 17572A - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17563-54090 |
2L..LH56 NO.1 |
1 | ||
| 17573-71070 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.1 |
1 | ||
| 17573-54060 |
2L..LH56 NO.2 |
1 | ||
| 17573-71080 |
2L..LH61,71..ST;2L,2Y,3Y,3YJ..LH51,YH50,51,52,6#,71..(COM,V)..ST NO.2 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-54180 |
2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-60820 | ||||
| 91651-60835 | ||||
| 94180-41000 | ||||
