LH56V-MNE (1986)

Toyota Hiace Van,Wagon

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

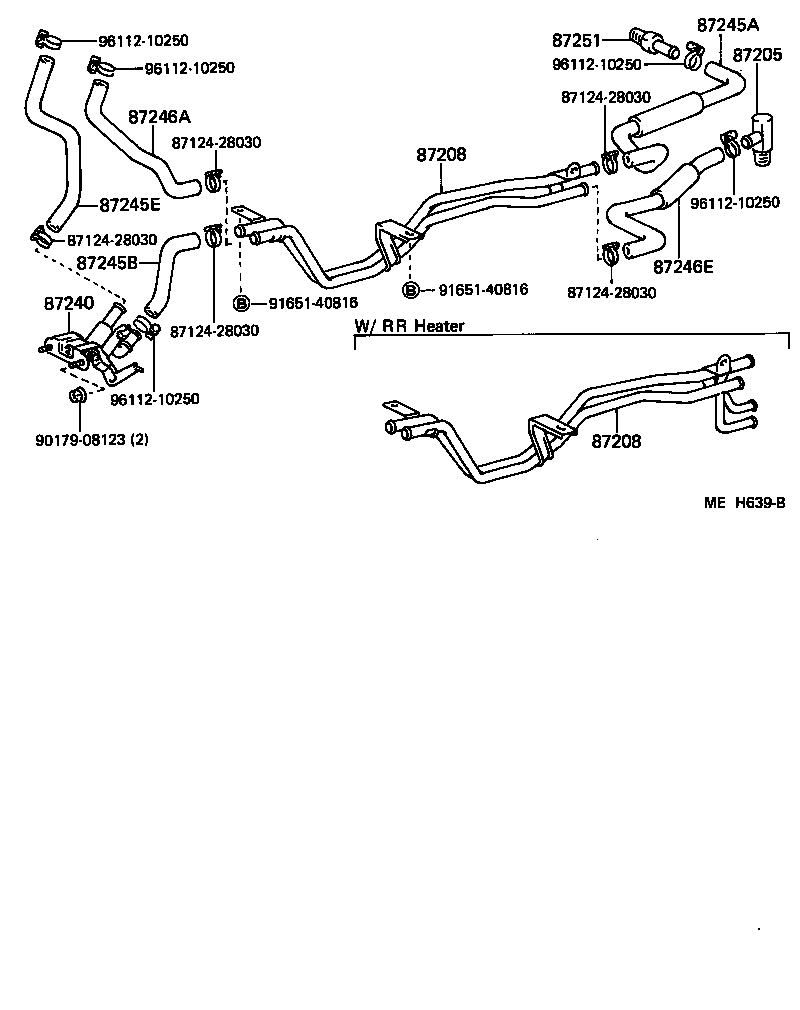

(8608- )LH56,66

Click highlighted areas on diagram

diagram 8712428030 8712428030 8712428030 8712428030 8712428030 87205 87208 87208 87240 87245A 87245B 87245E 87246A 87246E 87251 9017908123 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH5#,6#,7#..DSL

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J22

LH56,66

 1
87208-95J23

LH56..V4D

W/RR HEATER

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J23

LH56..V4D

W/RR HEATER

 1
87208-95J22

LH56,66

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH5#,6#,7#,YH5#,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J10

YH5#,6#,71

 1
87245-95J31

LH56,66

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J08

LH5#,6#,7#,YH5#,6#,71

 1
87245-95J29

LH56,66

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J42

LH51,6#,71,YH51,61,71

 1
87245-95J04

LH5#,6#,7#,YH5#,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J06

LH5#,6#,7#,YH5#,6#,71

 1
87245-95J28

LH56,66

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J32

LH56,66

 1
87245-95J12

YH5#,6#,71

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH5#,6#,7#..DSL

 1
Common parts
87124-28030
90179-08123
91651-40816
96112-10250

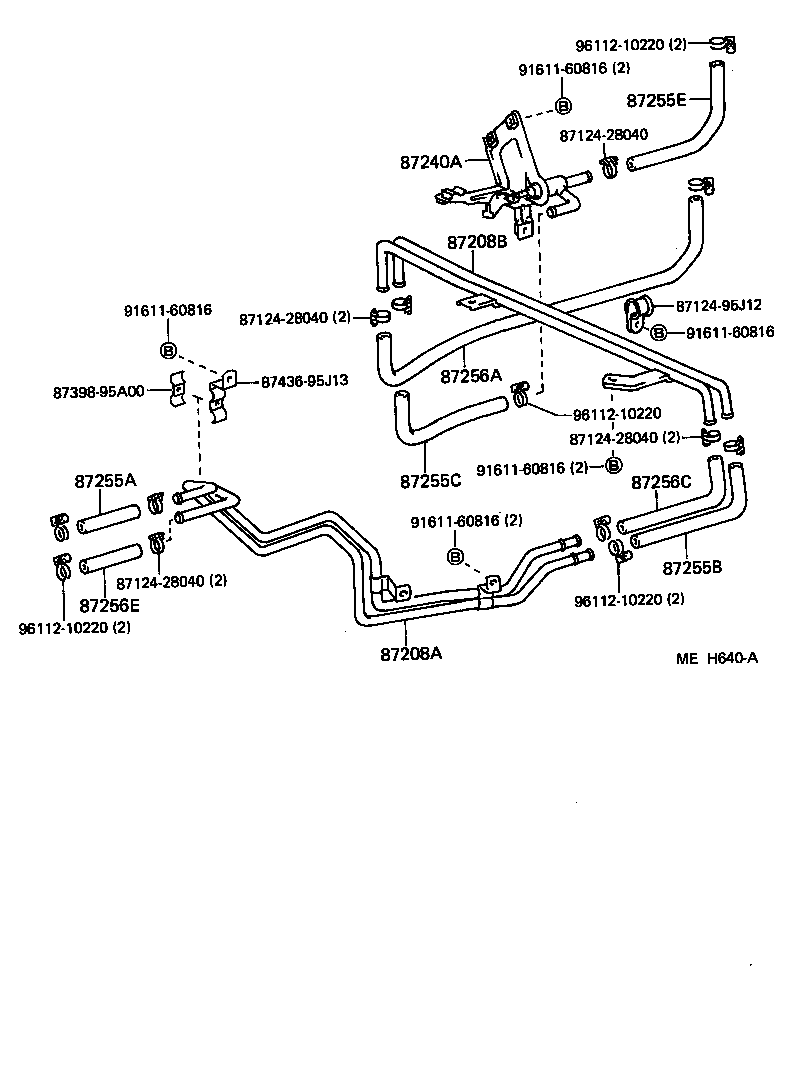

(8608- )LH56,66..V4D

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712495J12 87208A 87208B 87240A 87255A 87255B 87255C 87255E 87256A 87256C 87256E 8739895A00 8743695J13 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J27

LH56,66

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J28

LH56..V4D

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J05

LH56,66..V4D

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG

*H,L=250

 1
99556-20490

LH56..V4D

*H,L=350

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20200

LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG

*H,L=190

 1
99556-20490

LH56,66..V4D

*H,L=330

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH50,YH50..V4D..06S;LH51,6#,YH52,6#..V4D..VSG

*H,L=380

 1
99556-20490

LH56,66..V4D

*H,L=360

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20700

LH50,YH50..V4D..06S;LH51,6#,YH52,6#..V4D..VSG

*H,L=600,B TYPE

 1
99556-20800

LH56,66..V4D

*H,L=760

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20490

LH56,66..V4D

*H,L=360

 1
99552-20300

LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG

*H,L=250

 1
Common parts
87124-28040
87124-95J12
87398-95A00
87436-95J13
91611-60816
96112-10220
