LH56V-MNE (1987)
Toyota Hiace Van,Wagon

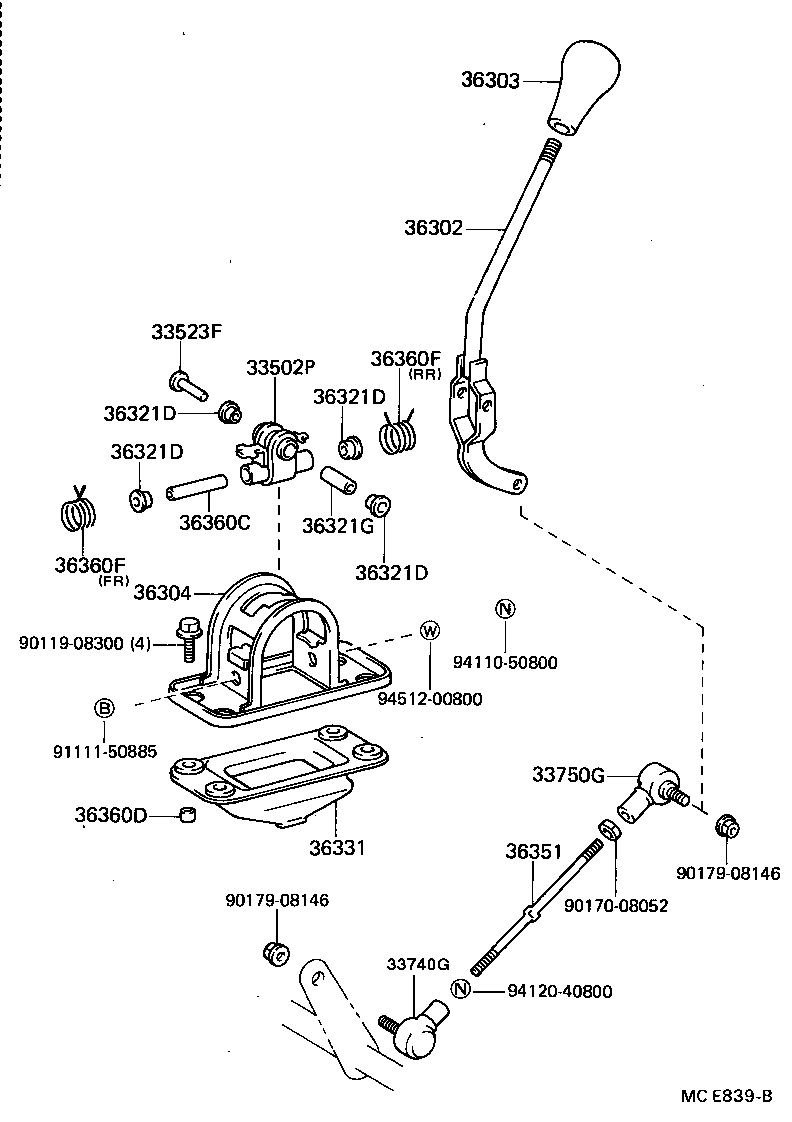

ILLUST NO. 1 OF 3(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502P - PLATE SUB-ASSY, SHIFT LEVER (FOR TRANSFER) | ||||
| 33502-26030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33523F - PIN, SHIFT LEVER (FOR TRANSFER) | ||||
| 33523-26030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33740G - END ASSY, CONNECTING ROD, NO.1(FOR TRANSFER SHIFT ROD) | ||||
| 33740-26010 |
LH56,YH57 |
2 | ||
| 33750G - END ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD) | ||||
| 33750-26010 |
LH56,YH57 |
2 | ||
| 36302 - LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36302-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 36321G - COLLER (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-08080 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36331 - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36351 - ROD, HIGH & LOW SHIFT, NO.1 | ||||
| 36351-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36360C - COLLAR (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90387-08062 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36360D - COLLAR (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-09011 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 36360F - SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90508-35028 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 90508-35019 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| 36360F - SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90508-35028 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 90508-35019 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 90119-08300 | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 91111-50885 | ||||
| 94110-50800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 3(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33671B - SUPPORT, TRANSFER CONTROL ROD, NO.1 | ||||
| 33671-26140 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33706A - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR TRANSFER) | ||||
| 33706-26070 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33706A - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR TRANSFER) | ||||
| 33706-26070 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33740G - END ASSY, CONNECTING ROD, NO.1(FOR TRANSFER SHIFT ROD) | ||||
| 33740-26010 |
LH56,YH57 |
2 | ||
| 33750G - END ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD) | ||||
| 33750-26010 |
LH56,YH57 |
2 | ||
| 33772B - BUSH, CROSS SHAFT SUPPORT (FOR TRANSFER) | ||||
| 33772-20010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
10 | ||
| 33772B - BUSH, CROSS SHAFT SUPPORT (FOR TRANSFER) | ||||
| 33772-20010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
10 | ||
| 33775E - COVER, CROSS SHAFT DUST (FOR TRANSFER) | ||||
| 33775-28040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36306 - SHAFT SUB-ASSY, CONTROL | ||||
| 36306-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36352 - ROD, HIGH & LOW SHIFT, NO.2 | ||||
| 36352-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36353 - ROD, HIGH & LOW SHIFT, NO.3 | ||||
| 36353-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36357 - LEVER SUB-ASSY, HIGH & LOW SHIFT LINK | ||||
| 36357-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36357A - BUSH (FOR HIGH & LOW SHIFT LINK LEVER) | ||||
| 90386-13192 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36357A - BUSH (FOR HIGH & LOW SHIFT LINK LEVER) | ||||
| 90386-13192 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36770 - SHAFT ASSY, TRANSFER CROSS | ||||
| 36770-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36770A - RING, SNAP (FOR TRANSFER CROSS SHAFT) | ||||
| 96151-01600 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36770A - RING, SNAP (FOR TRANSFER CROSS SHAFT) | ||||
| 96151-01600 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 90240-08042 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94614-10800 | ||||

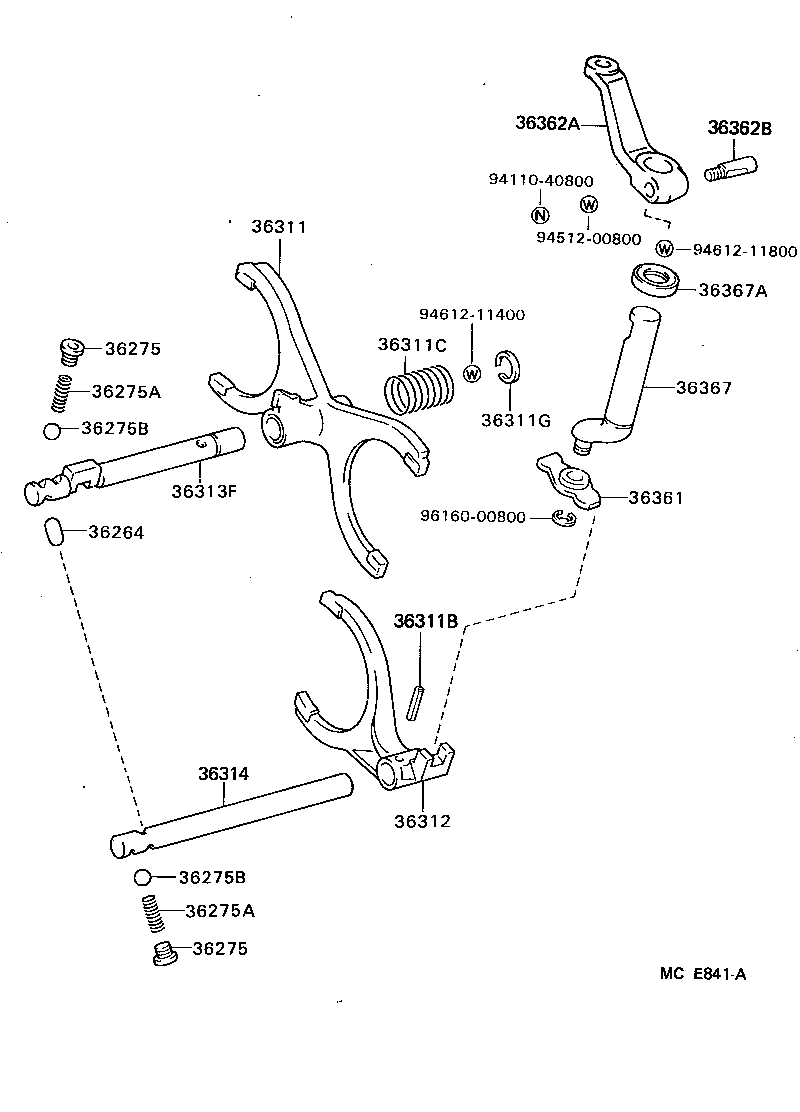

ILLUST NO. 3 OF 3(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10013 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=17.08,外径=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=52.3,FR DRIVE SHIFT SIDE |
1 | ||
| 90501-16094 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=38.4,HIGH&L0W SHIFT SIDE |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=52.3,FR DRIVE SHIFT SIDE |
1 | ||
| 90501-16094 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=38.4,HIGH&L0W SHIFT SIDE |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36301-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36301-28010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 長さ=22 |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18071 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-28010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-28020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-28010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER) | ||||
| 33281-16020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36367 - SHAFT, TRANSFER SHIFT INNER LEVER | ||||
| 36367-28010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) | ||||
| 90311-18006 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-11400 | ||||
| 94612-11800 | ||||
| 96160-00800 | ||||
