LH56V-MDFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 6151 62341A 62343A 67003H 67004H 67525 67528A 67852A 9014960027 9018906062 9095001181 9095006017
Part # Description Qty Price
62341A - WEATHERSTRIP, SLIDE DOOR, NO.1
62341-95J02

LH5#,6#,YH50,61..V5D..(CD,DX)

 2
62343A - WEATHERSTRIP, SLIDE DOOR, NO.2
62343-95J00

LH5#,6#,YH50,51,61..V5D

 2
67003H - DOOR SUB-ASSY, SLIDE, RH
67003-95J15

LH5#,6#,YH50,51,61..V5D

 1
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-95J28

LH61..DX,GL;LH51..DX..09S;LH61..VSG..03S;LH51..VSG..(CD,DX,GL);LH66,71..DX..(06S,08S,09S,10S,15S);LH56,66,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00

LH5#,6#,YH50,51,61..V5D

 4
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH5#,6#,YH50,51,61..V5D

 4
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J00

LH5#,6#,YH50,51,61..V5D

 2
Common parts
90149-60027
90189-06062
90950-01181
90950-06017
Linked diagrams
6151

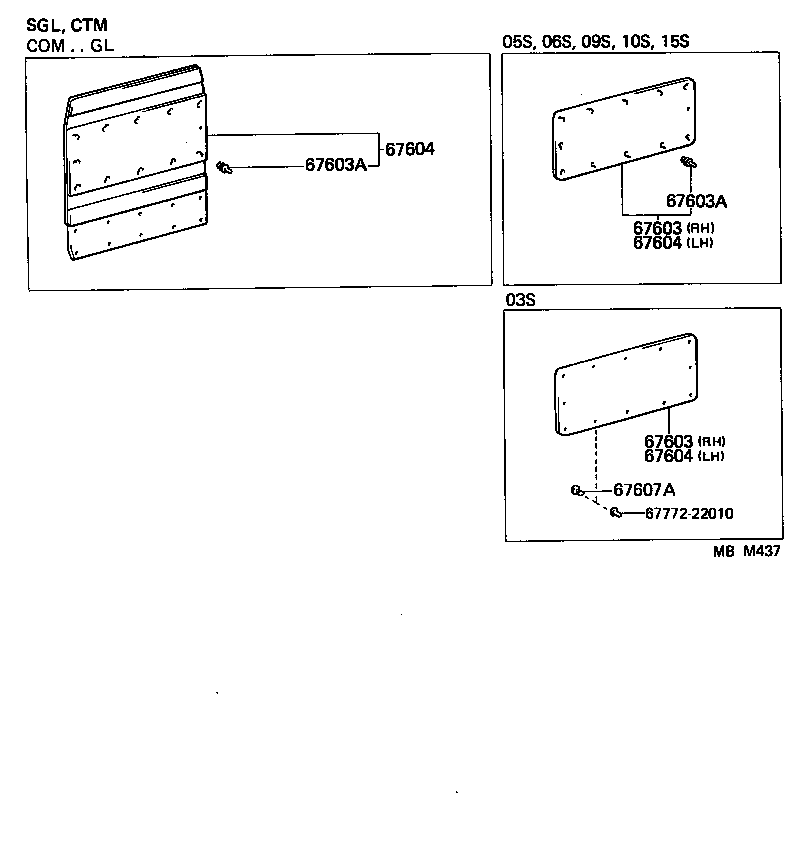

ILLUST NO. 2 OF 3(8708- )CD,CTM,DX,GL,SGL

Click highlighted areas on diagram

diagram 67603 67603 67603A 67603A 67604 67604 67604 67607A 6777222010
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95J0006

LH5#,6#,YH50,61..V5D..DX

BROWN,TRIM4#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95J0006

LH5#,6#,YH50,61..V5D..DX

BROWN,TRIM4#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-95J02

LH66,71..DX..(06S,08S,09S,10S,15S);LH5#,6#,YH50,51,61,71..(DX,GL)..(05S,06S,09S,10S,15S)

 11
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-95J02

LH66,71..DX..(06S,08S,09S,10S,15S);LH5#,6#,YH50,51,61,71..(DX,GL)..(05S,06S,09S,10S,15S)

 11
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J0006

LH5#,6#,71,YH50,61,71..VSG..DX

BROWN,TRIM4#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J0006

LH5#,6#,71,YH50,61,71..VSG..DX

BROWN,TRIM4#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J0006

LH5#,6#,71,YH50,61,71..VSG..DX

BROWN,TRIM4#

 1
Common parts
67772-22010
