LH56V-MDFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH5#,YH50,51,52..V

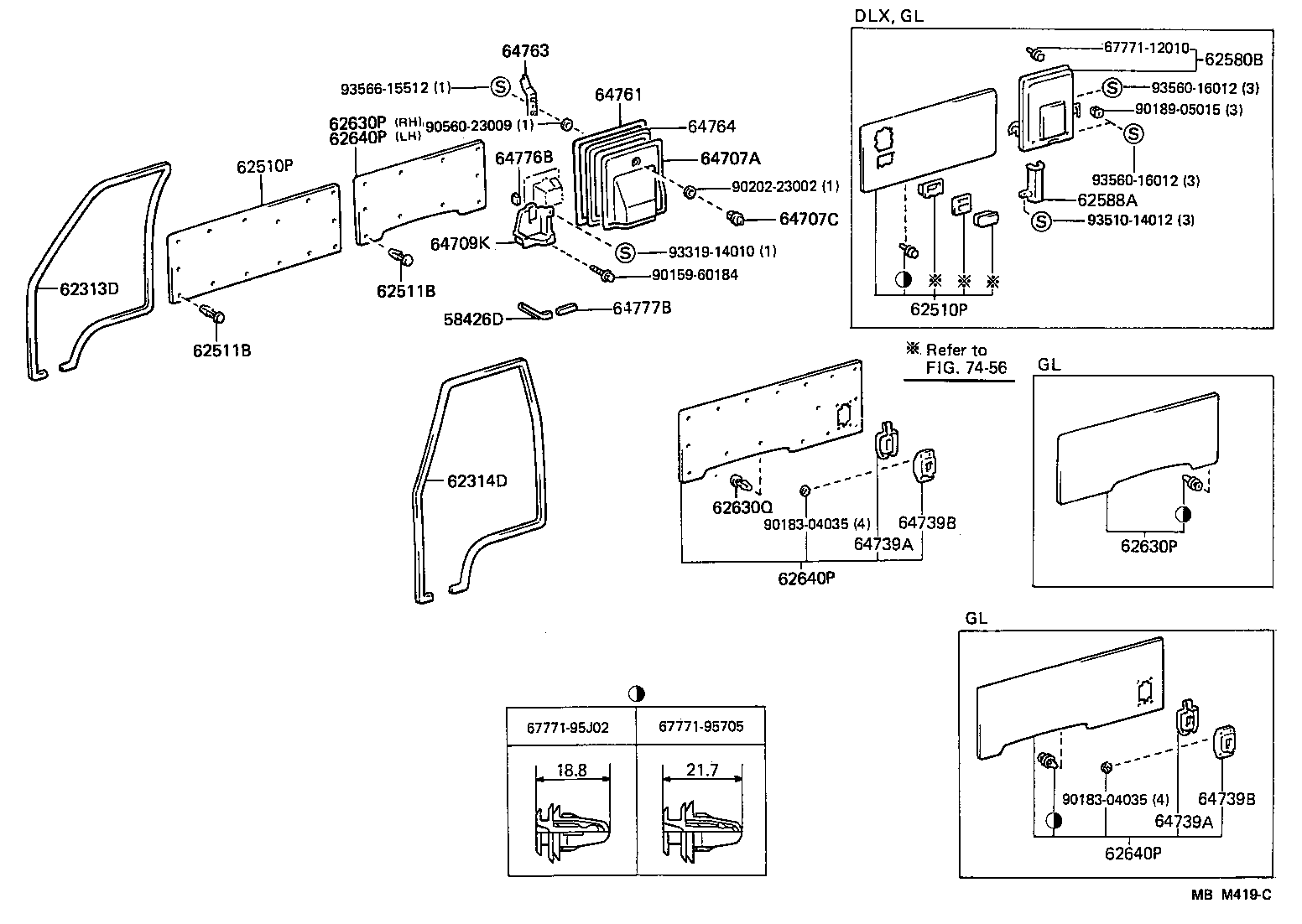

Click highlighted areas on diagram

diagram 58426D 62313D 62314D 62510P 62510P 62511B 62511B 62580B 62588A 62630P 62630P 62630Q 62640P 62640P 62640P 64707A 64707C 64709K 64739A 64739A 64739B 64739B 64761 64763 64764 64776B 64777B 6777112010 6777195705 6777195J02 7456 9015960184 9018304035 9018304035 9018905015 9020223002 9056023009 9331914010 9351014012 9356016012 9356016012 9356615512
Part # Description Qty Price
58426D - PROTECTOR, TOOL BAG CASE
58426-95700

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0016

LH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0016

LH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-1003416

LH5#..VSG..DX;YH50..V5D..5H;LH51..V5D..03S;YH50..V4D..06S

BROWN,TRIM4#

 25
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-1003416

LH5#..VSG..DX;YH50..V5D..5H;LH51..V5D..03S;YH50..V4D..06S

BROWN,TRIM4#

 25
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J04

LH5#,YH50,52..V..(CD,DX)

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J04

LH5#,YH50,52..V..(CD,DX)

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J05

LH5#,YH50,52..V..(CD,DX)

 1
62640-95J1706

LH51..03S;LH5#..V5D..DX;YH50..V5D..5H;YH50..V4D..03S

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),BROWN,BROWN,TRIM4#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J05

LH5#,YH50,52..V..(CD,DX)

 1
62640-95J1706

LH51..03S;LH5#..V5D..DX;YH50..V5D..5H;YH50..V4D..03S

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),BROWN,BROWN,TRIM4#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J05

LH5#,YH50,52..V..(CD,DX)

 1
62640-95J1706

LH51..03S;LH5#..V5D..DX;YH50..V5D..5H;YH50..V4D..03S

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),BROWN,BROWN,TRIM4#

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-95J01

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S

 1
64707C - KNOB, JACK COVER
64769-1301001

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S

BLACK,TRIM4#,8#

 1
64709K - CASE SUB-ASSY, TOOL BAG
64709-95J00

LH5#,YH5#

 1
64739A - COVER, DECK TRIM REAR WASHER
85365-95J0026

LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
64739A - COVER, DECK TRIM REAR WASHER
85365-95J0026

LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER
85366-95J0026

LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER
85366-95J0026

LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX)

BROWN,TRIM4#

 1
64761 - CUSHION, SIDE TRIM TOOL COVER
64761-95J02

LH56,66..V5D..DX;LH66..(DX,SGL)..08S;LH56,66..(GL,SGL)..05S;LH51,61,71,YH50,51,52,6#,71..(CD,CTM,DX,GL,SGL)..(CBR,DSL)

ｶﾝﾚｲﾁ ｼﾖｳ

 2
64763 - STOPPER, TOOL COVER
64763-95J00

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S

 1
64764 - PACKING, TOOL COVER
64764-95J00

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S

 1
64776B - SPACER, TOOL BAG CASE, NO.2
64776-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S

 1
Common parts
67771-12010
67771-95705
67771-95J02
90159-60184
90183-04035
90189-05015
90202-23002
90560-23009
93319-14010
93510-14012
93560-16012
93566-15512
Linked diagrams
7456
