LH56V-MDFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

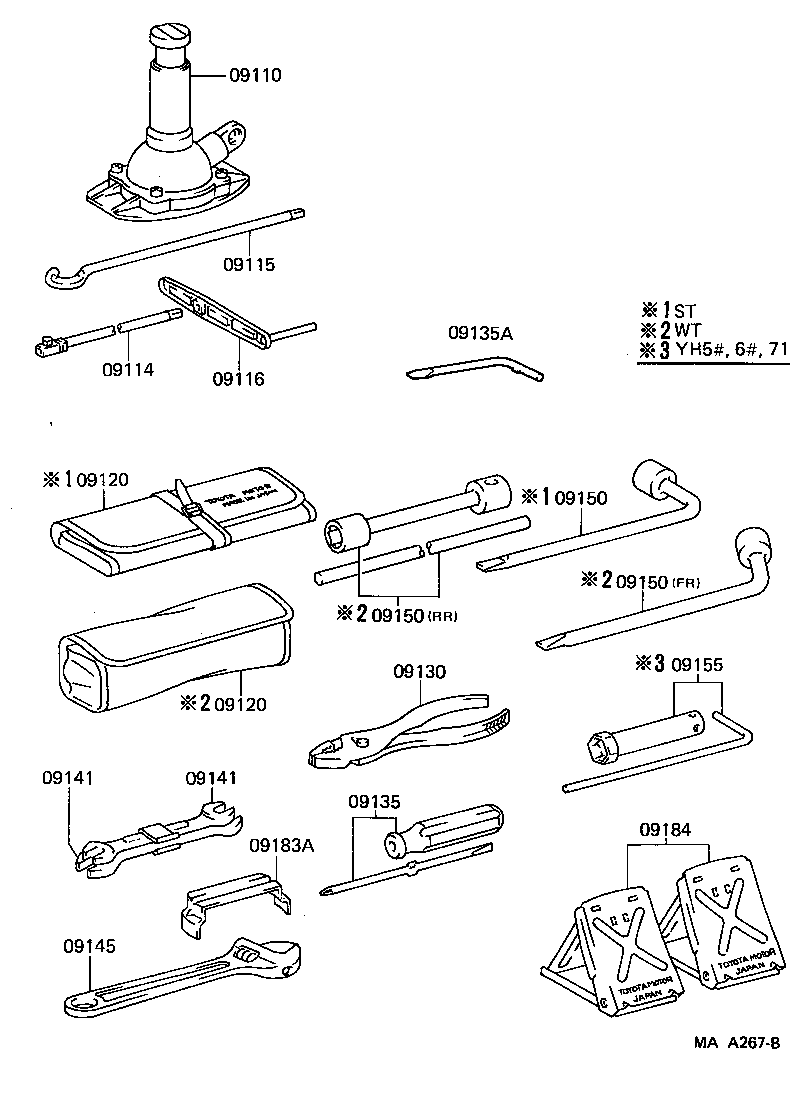

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09120 09130 09135 09135A 09141 09141 09145 09150 09150 09150 09155 09183A 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-26050

LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S

 1
09111-26080

LH61..V..ST;LH51,71,YH50,51,52,6#,71..(COM,V)..ST

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

LH61..V..ST;LH66..(DX,SGL)..08S;LH5#,66,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60020

LH66..(DX,SGL)..08S;LH61,YH57..(03S,05S,06S,08S,09S)..ST;LH5#,66,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST

 1
09116 - LEVER, JACK HANDLE
09116-35041

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09120 - BAG, TOOL
09120-26021

LH56,66..DX;LH51,61,71,YH50,51,52,6#,71..ST

 1
09120-28010

LH56..DX;LH66..V5D..DX;LH66..DX..08S

ﾀｲﾔ ｻｲｽﾞ=195R15

 1
09120 - BAG, TOOL
09120-26021

LH56,66..DX;LH51,61,71,YH50,51,52,6#,71..ST

 1
09120-28010

LH56..DX;LH66..V5D..DX;LH66..DX..08S

ﾀｲﾔ ｻｲｽﾞ=195R15

 1
09130 - PLIERS
99913-11500

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09135 - DRIVER, SCREW
99915-10700

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09141 - SPANNER
99914-10810

LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,62,71..ST;LH66,YH61..03S,05S,06S,09S,10S

8 X 10

 1
99914-10810

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

8 X 10

 1
99914-11214

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

12 X 14

 1
99914-11214

LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,62,71..ST;LH66,YH61..03S,05S,06S,09S,10S

12 X 14

 1
09141 - SPANNER
99914-10810

LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,62,71..ST;LH66,YH61..03S,05S,06S,09S,10S

8 X 10

 1
99914-10810

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

8 X 10

 1
99914-11214

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

12 X 14

 1
99914-11214

LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,62,71..ST;LH66,YH61..03S,05S,06S,09S,10S

12 X 14

 1
09145 - WRENCH, MONKEY
99911-11200

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YH5#,6#,71

 1
09183A - REPLACER, WHEEL CAP
09183-35010

LH56,66..DX

 1
09184 - STOPPER, WHEEL
09184-00010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
