LH56V-MDFE (1986)

Toyota Hiace Van,Wagon

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LH56,66

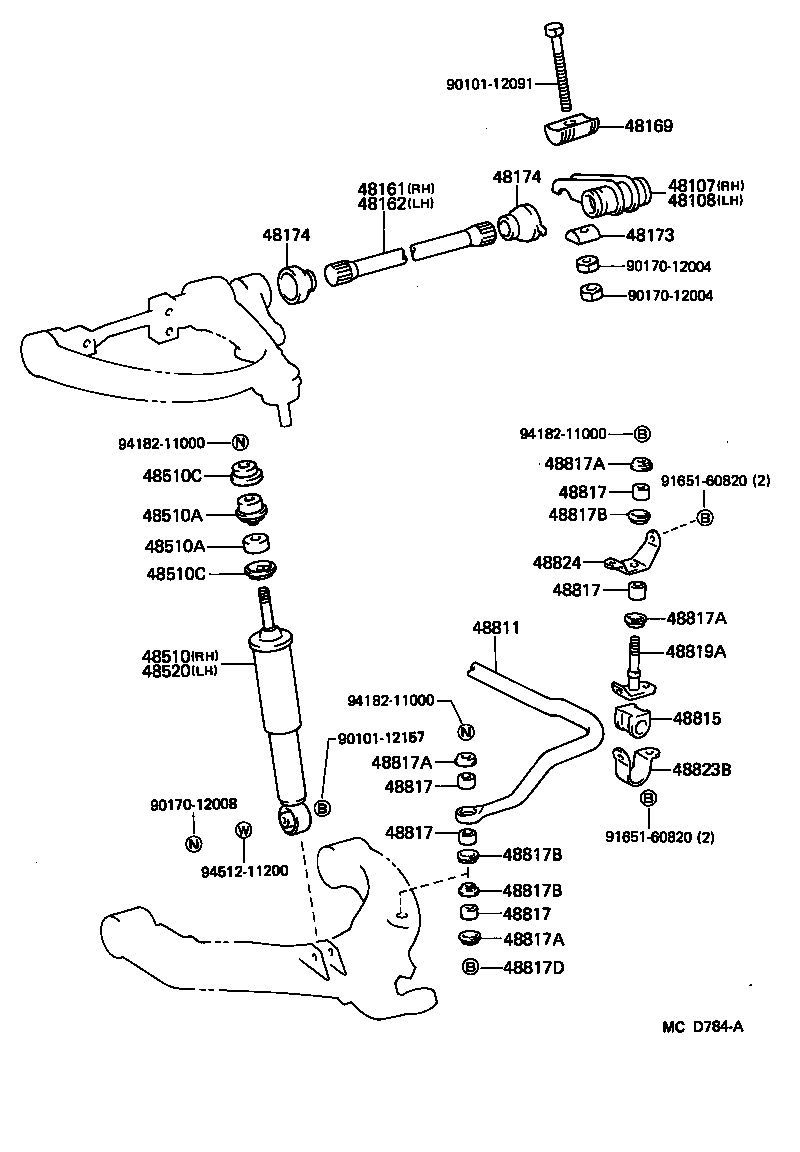

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48174 48174 48510 48510A 48510A 48510C 48510C 48520 48811 48815 48817 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817B 48817B 48817D 48819A 48823B 48824 9010112091 9010112157 9017012004 9017012004 9017012008 9165160820 9165160820 9418211000 9418211000 9418211000 9451211200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26010

LH50,51,60,61,7#,YH5#,6#,71

 1
48107-26030

LH56,66

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26030

LH56,66

 1
48108-26010

LH50,51,60,61,7#,YH5#,6#,71

 1
48161 - SPRING, TORSION BAR, RH
48161-26100

LH56,66

 1
48162 - SPRING, TORSION BAR, LH
48162-26100

LH56,66

 1
48169 - SWIVEL, ANCHOR ARM
48169-26010

LH50,51,60,61,7#,YH5#,6#,71

 2
48169-26030

LH56,66

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

LH5#,6#,7#,YH5#,6#,71

 2
48174 - COVER, TORSION BAR DUST
48174-26010

LH5#,6#,7#,YH5#,6#,71

 4
48174 - COVER, TORSION BAR DUST
48174-26010

LH5#,6#,7#,YH5#,6#,71

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-26120

LH56,66

ﾏｰｸ 48511−26120

 1
48511-29165

LH5#,6#,7#,YH50,52,6#,71..COM,V

ﾏｰｸ 48511−26040

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LH5#,6#,7#,YH5#,6#,71

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LH5#,6#,7#,YH5#,6#,71

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH5#,6#,7#,YH5#,6#,71

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH5#,6#,7#,YH5#,6#,71

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-26120

LH56,66

ﾏｰｸ 48511−26120

 1
48511-29165

LH5#,6#,7#,YH50,52,6#,71..COM,V

ﾏｰｸ 48511−26040

 1
48811 - BAR, STABILIZER, FRONT
48811-26030

LH50,51,60,61,YH5#,6#..HRF,SRF

外径=23

 1
48811-26070

LH56,66

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26050

LH56,66

 2
48815-26040

LH50,51,60,61,YH5#,6#..V..SRF

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH5#,6#,7#,YH5#,6#,71

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH5#,6#,7#,YH5#,6#,71

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH5#,6#,7#,YH5#,6#,71

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH5#,6#,7#,YH5#,6#,71

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH5#,6#,7#,YH5#,6#,71

 10
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH5#,6#,7#,YH5#,6#,71

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH5#,6#,7#,YH5#,6#,71

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH5#,6#,7#,YH5#,6#,71

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH5#,6#,7#,YH5#,6#,71

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH56,66

 6
90948-02005

LH50,51,60,61,7#,YH5#,6#,71

 2
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH56,66

 6
90948-02005

LH50,51,60,61,7#,YH5#,6#,71

 2
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH56,66

 6
90948-02005

LH50,51,60,61,7#,YH5#,6#,71

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-10090

LH50,51,60,61,7#,YH5#,6#,71

 2
91121-51080

LH56,66

 2
48819A - BOLT, FRONT STABILIZER
48819-26010

LH56,66

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-26040

LH56,66

 2
48824 - BRACKET, STABILIZER, FRONT
48824-26070

LH56,66

 2
Common parts
90101-12091
90101-12157
90170-12004
90170-12008
91651-60820
94182-11000
94512-11200
