LH56V-MDE (1987)
Toyota Hiace Van,Wagon
(8708- )LH51,61,71,YH50,51,52,6#,71..CD,CTM,DX,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26010 |
LH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26081 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 長さ=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26081 |
LH66..(DX,SGL)..08S;LH5#,61,71,YH50..CD,CTM,DX,GL,SCM,SGL;LH66,YH51,61,71..VSG..(03S,05S,06S,09S) |
1 | ||
| 45307-26071 |
YH5#,6#,71..CD,CTM,DX,GL,SCM |
1 | ||
| 45307-26081 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,上側 |
1 | ||
| 45287-2611106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,上側 |
1 | ||
| 45287-2611106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,下側 |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-32020 |
LH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S) |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 91611-60616 | ||||
| 91651-40818 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||

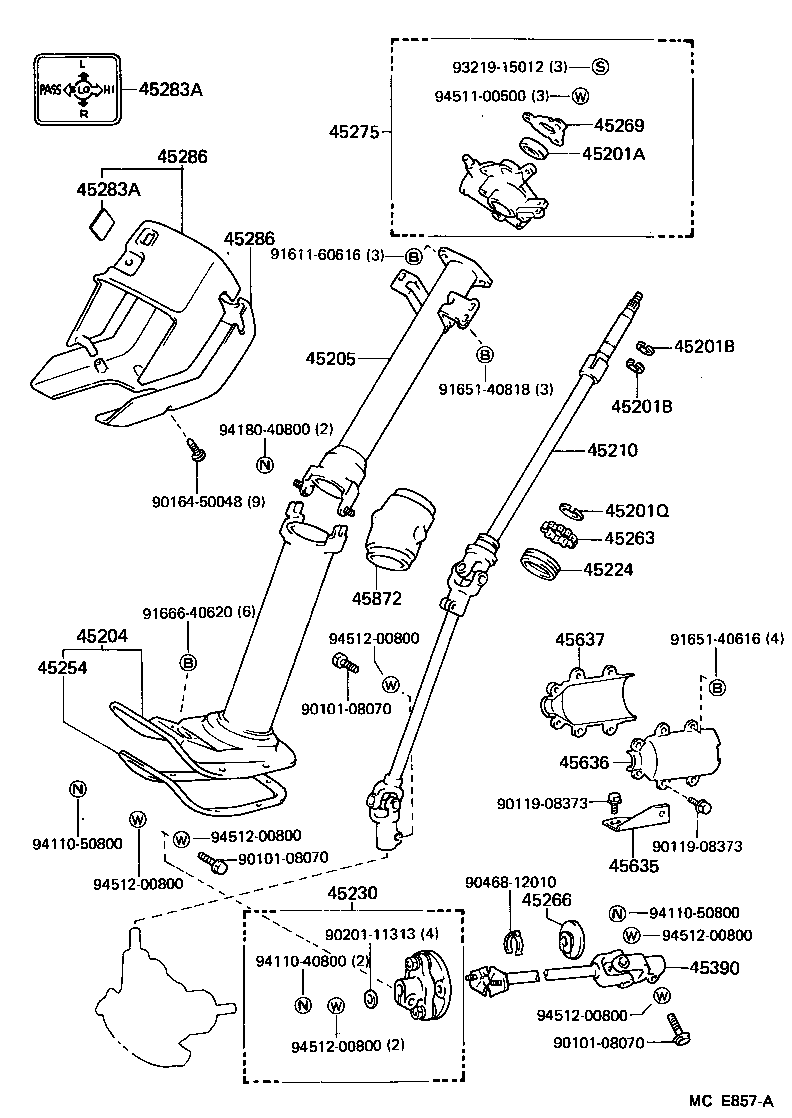

ILLUST NO. 1 OF 2(8708- )LH56,66..DX,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26010 |
LH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26081 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 長さ=16 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-26020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26081 |
LH66..(DX,SGL)..08S;LH5#,61,71,YH50..CD,CTM,DX,GL,SCM,SGL;LH66,YH51,61,71..VSG..(03S,05S,06S,09S) |
1 | ||
| 45307-26071 |
YH5#,6#,71..CD,CTM,DX,GL,SCM |
1 | ||
| 45307-26081 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,上側 |
1 | ||
| 45287-2611106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,上側 |
1 | ||
| 45287-2611106 |
LH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM) BROWN,TRIM4#,下側 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-26010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08373 | ||||
| 90164-50048 | ||||
| 90201-11313 | ||||
| 90468-12010 | ||||
| 91611-60616 | ||||
| 91651-40616 | ||||
| 91651-40818 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||

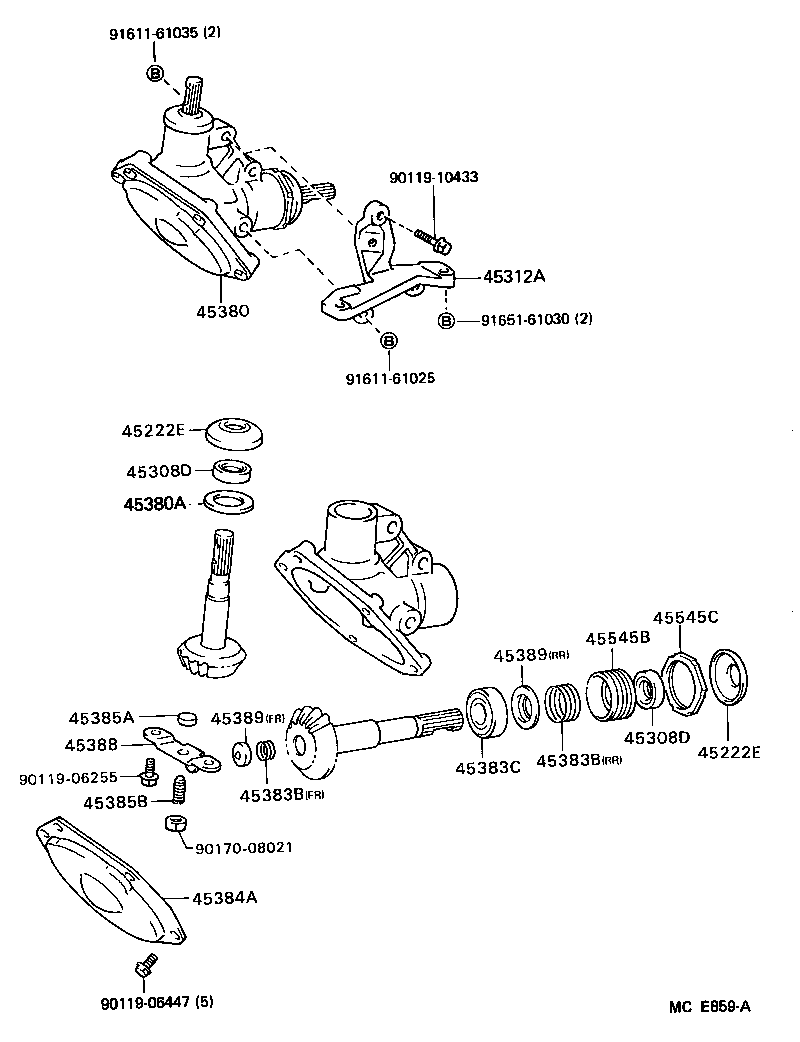

ILLUST NO. 2 OF 2(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-26110 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-37010 |
LH56,YH57 |
1 | ||
| 45380-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18005 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.05,ﾏｰｸ 5 |
1 | ||
| 90209-18004 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.00,ﾏｰｸ 4 |
1 | ||
| 90209-18002 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.90,ﾏｰｸ 2 |
1 | ||
| 90209-18008 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.20,ﾏｰｸ 8 |
1 | ||
| 90209-18003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.95,ﾏｰｸ 3 |
1 | ||
| 90209-18006 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.10,ﾏｰｸ 6 |
1 | ||
| 90209-18007 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.15,ﾏｰｸ 7 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 90501-20080 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 90501-20080 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 45389-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾘﾔ |
1 | ||
| 45389-27010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S ﾌﾛﾝﾄ |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-06447 | ||||
| 90119-10433 | ||||
| 90170-08021 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
