LH51V-SNFE (1984)

Toyota Hiace Van,Wagon

Production Jan 1984 - Aug 1985
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8401- )LH51,61..VSG..ATM

Click highlighted areas on diagram

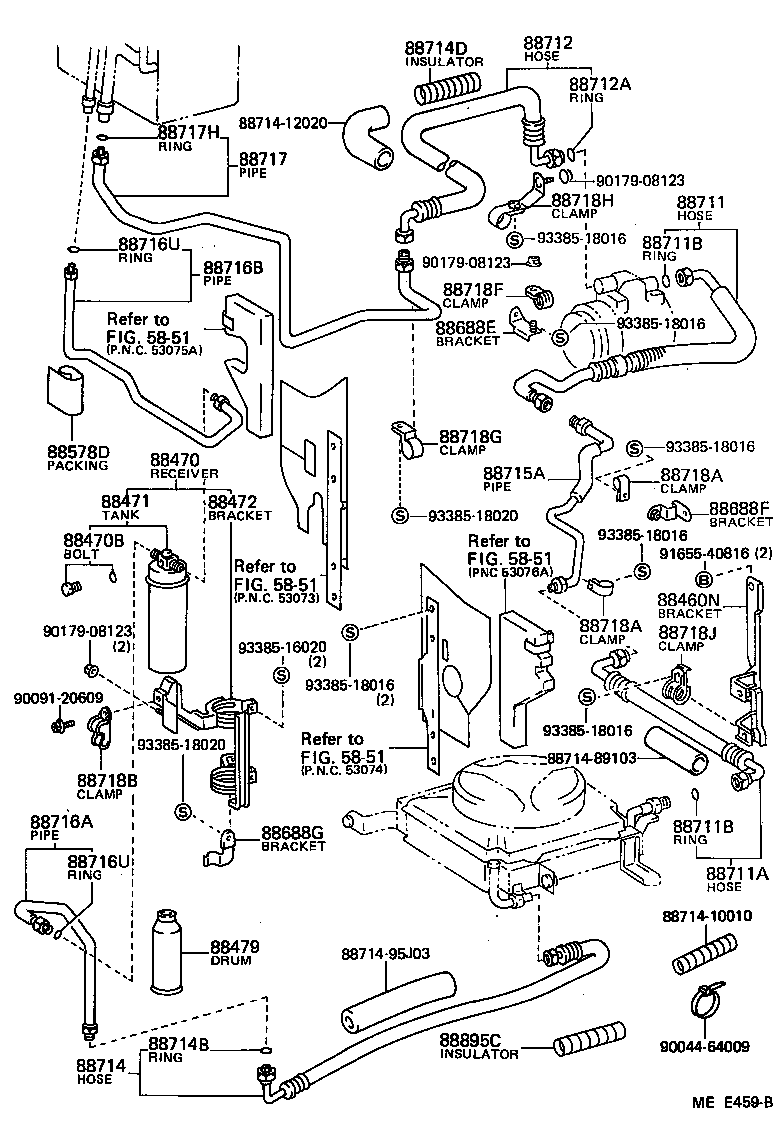

diagram 5851 5851 5851 5851 88460N 88470 88470B 88471 88472 88479 88578D 88688E 88688F 88688G 88711 88711A 88711B 88711B 88712 88712A 88714 8871410010 8871412020 8871489103 8871495J03 88714B 88714D 88715A 88716A 88716B 88716U 88716U 88717 88717H 88718A 88718A 88718B 88718F 88718G 88718H 88718J 88895C 9004464009 9009120609 9017908123 9017908123 9017908123 9165540816 9338516020 9338518016 9338518016 9338518016 9338518016 9338518016 9338518016 9338518020 9338518020
Part # Description Qty Price
88460N - BRACKET, COOLER CONDENSER, NO.8
88688-95J04

LH50,51,60,61,7#

 1
88470B - BOLT, FUSE
90099-04579

LH50,51,60,61,7#,YH5#,6#,71

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-95J00

LH50,51,6#,7#,YH5#,6#,71

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J00

LH50,51,60,61,7#,YH5#,6#,71

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LH50,51,60,61,7#,YH5#,6#,71

400G

 4
88578D - PACKING, COOLER PIPE, NO.1
88578-30360

LH50,51,60,61,7#,YH5#,6#,71

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-95J26

YH5#,6#,71

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-95J25

YH5#,6#,71

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-95J36

LH50,51,60,61,7#,YH5#,6#,71

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J03

YH5#,6#,71

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95J09

LH50,51,60,61,7#..V

W/SINGLE AIR CONDITIONER

 1
88712-95J07

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95J00

YH5#,6#,71

A TYPE

 1
88721-95J01

LH50,51,61..ATM..DSL

 1
88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE)
90099-14044

YH5#,6#,71

 2
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-14100

LH5#,6#,7#,YH5#,6#,71..CBR,DSL

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95J08

YH50,52,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J00

LH50,51,60,61,7#,YH5#,6#,71

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J08

LH5#,6#,7#,YH50,52,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

LH5#,6#,7#,YH5#,6#,71

 9
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

LH5#,6#,7#,YH5#,6#,71

 9
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-95J07

LH5#,6#,7#,YH50,52,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-95J17

YH5#,6#,71

 2
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-95J17

YH5#,6#,71

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-95J05

LH50,51,60,61,7#,YH5#,6#,71

 4
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-95J18

YH5#,6#,71

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-95J02

LH50,51,60,61,7#,YH5#,6#,71

 1
88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)
88718-95J24

LH50,51,60,61,7#,YH5#,6#,71..V

 1
88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88718-95J00

LH50,51,60,61,7#,YH5#,6#,71

 1
88895C - INSULATOR, HOSE
88895-12030

LH50,51,60,61,7#,YH5#,6#,71

 2
Common parts
88714-10010
88714-12020
88714-89103
88714-95J03
90044-64009
90091-20609
90179-08123
91655-40816
93385-16020
93385-18016
93385-18020
