LH51V-QBF (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HRF,SRF

Click highlighted areas on diagram

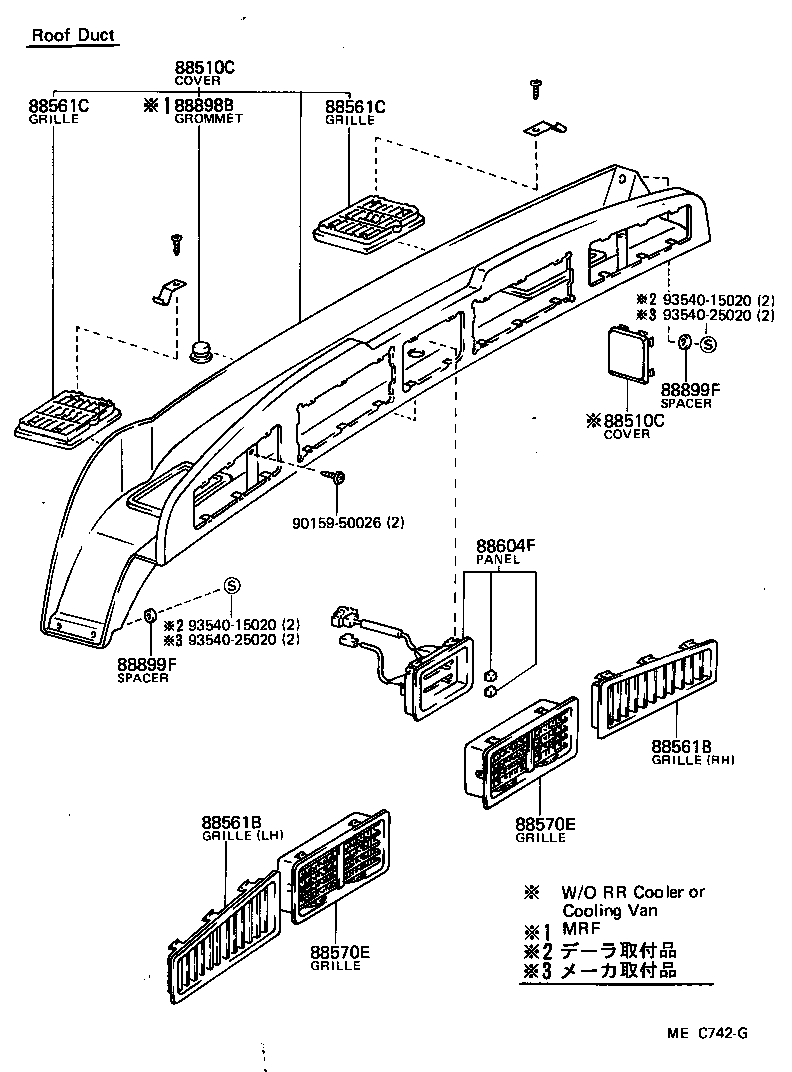

diagram 88510C 88510C 88561B 88561B 88561C 88561C 88570E 88570E 88604F 88898B 88899F 88899F 9015950026 9354015020 9354015020 9354025020 9354025020
Part # Description Qty Price
Common parts
90159-50026
93540-15020
93540-25020

(8708- )

Click highlighted areas on diagram

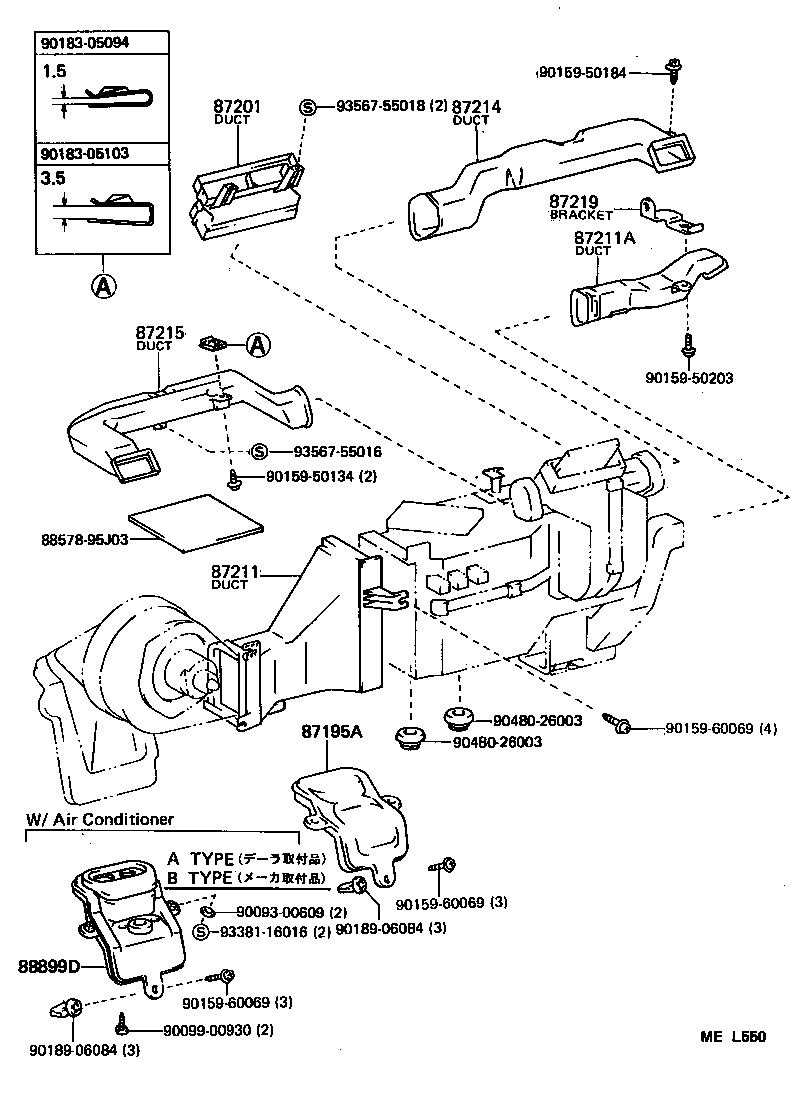

diagram 87195A 87201 87211 87211A 87214 87215 87219 8857895J03 88899D 9009300609 9009900930 9015950134 9015950184 9015950203 9015960069 9015960069 9015960069 9018305094 9018305103 9018906084 9018906084 9048026003 9048026003 9338116016 9356755016 9356755018
Part # Description Qty Price
87195A - COVER, HEATER INLET HOLE
87195-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87211 - DUCT, AIR, NO.1
87211-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87211A - DUCT, AIR, NO.2
87211-95J04

LH51..V

 1
87211-95J04

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-95J01

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87219 - BRACKET, FRONT AIR DUCT
87219-95J00

LH51..V

 1
87219-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL

 1
88899D - COVER, COOLER CONTROL
88899-95J07

YH61..SRF..5H..WT;YH61..V5D..06S..ST;YH50,52,6#..MTM..(CD,GL);LH51,61..V..SRF..(CD,DX,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88899-95J07

YH61..SRF..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;LH51,61..V..SRF..(CD,DX,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
Common parts
88578-95J03
90093-00609
90099-00930
90159-50134
90159-50184
90159-50203
90159-60069
90183-05094
90183-05103
90189-06084
90480-26003
93381-16016
93567-55016
93567-55018

(8708- )

Click highlighted areas on diagram

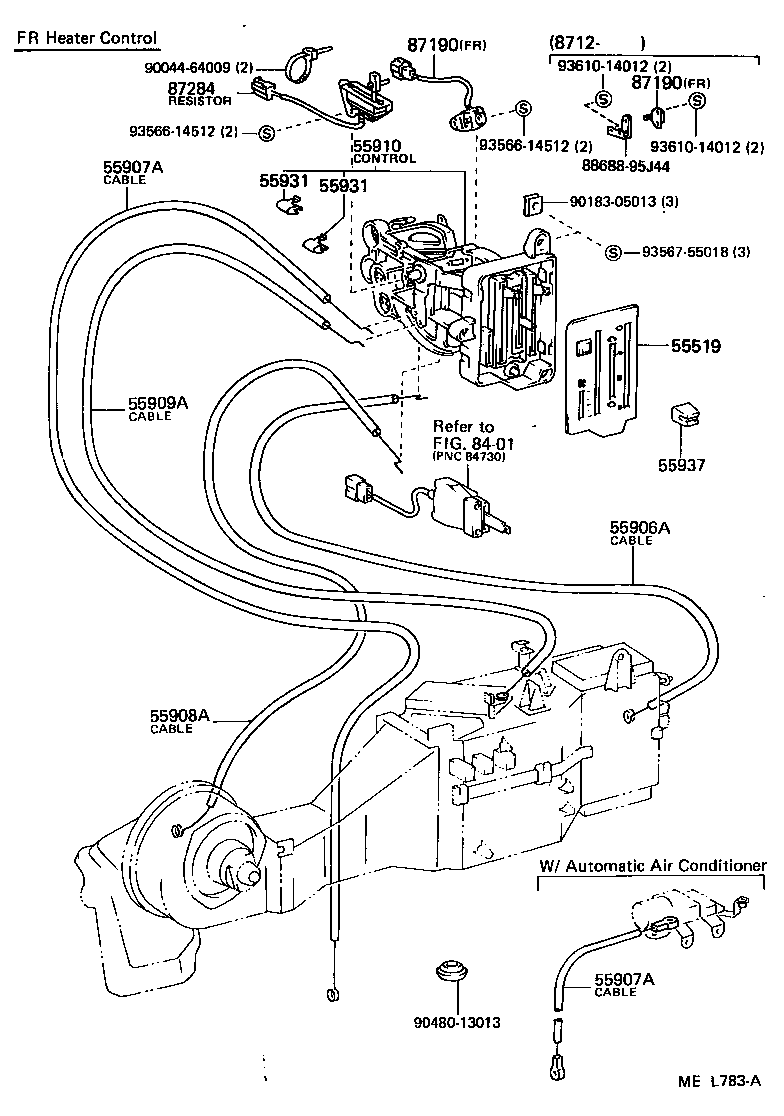

diagram 55519 55906A 55907A 55907A 55908A 55909A 55910 55931 55931 55937 8401 87190 87190 87284 8868895J44 9004464009 9018305013 9048013013 9356614512 9356614512 9356755018 9361014012 9361014012
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-95J16

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾌﾛﾝﾄ

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

FR

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,DEF,WARM,HI

 3
55905-95707

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,FRESH

 1
Common parts
88688-95J44
90044-64009
90183-05013
90480-13013
93566-14512
93567-55018
93610-14012
Linked diagrams
8401

(8708- )

Click highlighted areas on diagram

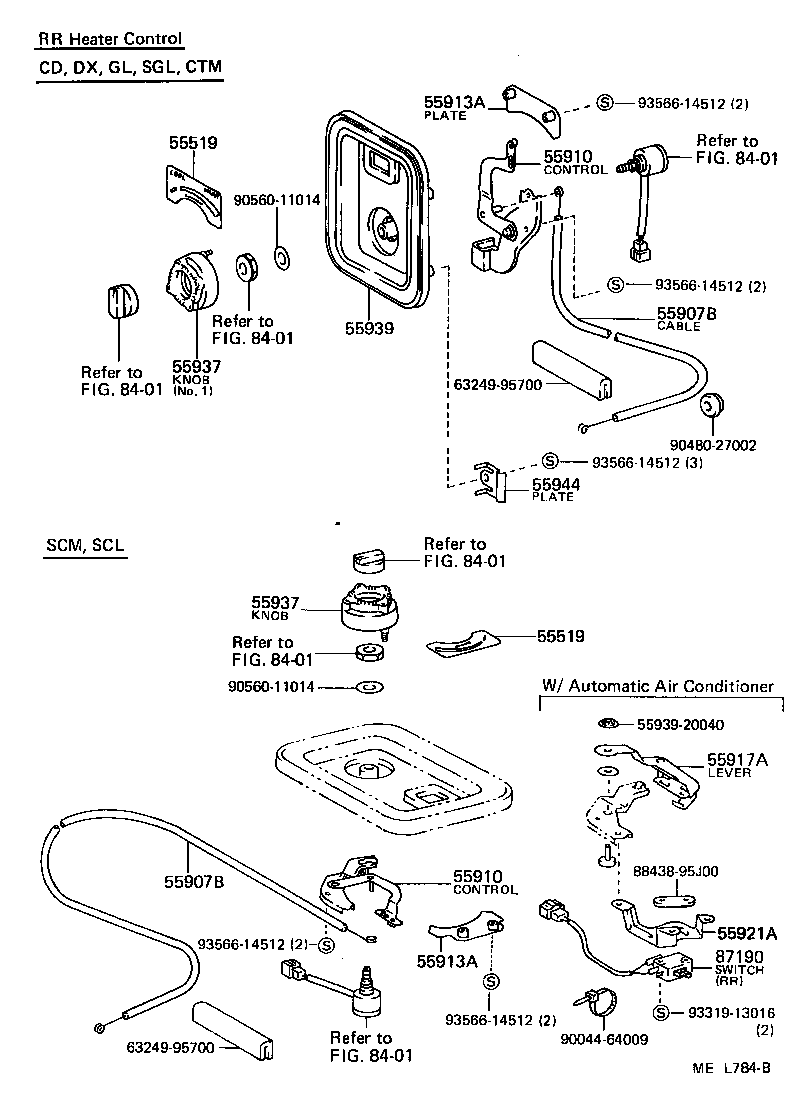

diagram 55519 55519 55907B 55907B 55910 55910 55913A 55913A 55917A 55921A 55937 55937 55939 5593920040 55944 6324995700 6324995700 8401 8401 8401 8401 8401 8401 87190 8843895J00 9004464009 9048027002 9056011014 9056011014 9331913016 9356614512 9356614512 9356614512 9356614512 9356614512
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-95J16

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾌﾛﾝﾄ

 1
55519 - PLATE, HEATER CONTROL NAME
55519-95J16

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾌﾛﾝﾄ

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

FR

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

FR

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,DEF,WARM,HI

 3
55905-95707

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,FRESH

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,DEF,WARM,HI

 3
55905-95707

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,FRESH

 1
Common parts
55939-20040
63249-95700
88438-95J00
90044-64009
90480-27002
90560-11014
93319-13016
93566-14512
Linked diagrams
8401

(8708- )WT ; (8708- )V5D..ST

Click highlighted areas on diagram

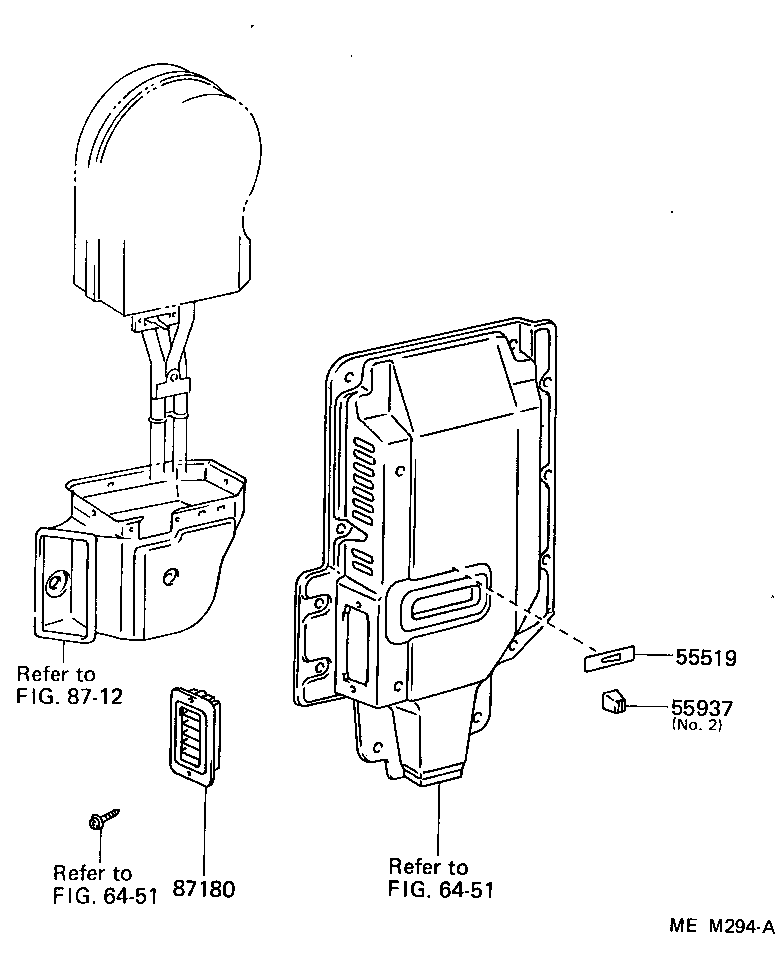

diagram 55519 55937 6451 6451 8712 87180
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-95J16

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾌﾛﾝﾄ

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,DEF,WARM,HI

 3
55905-95707

LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL

FR HEATER,FRESH

 1
Linked diagrams
6451
8712
