LH51V-QBF (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )COM,V..CD,DX,GL

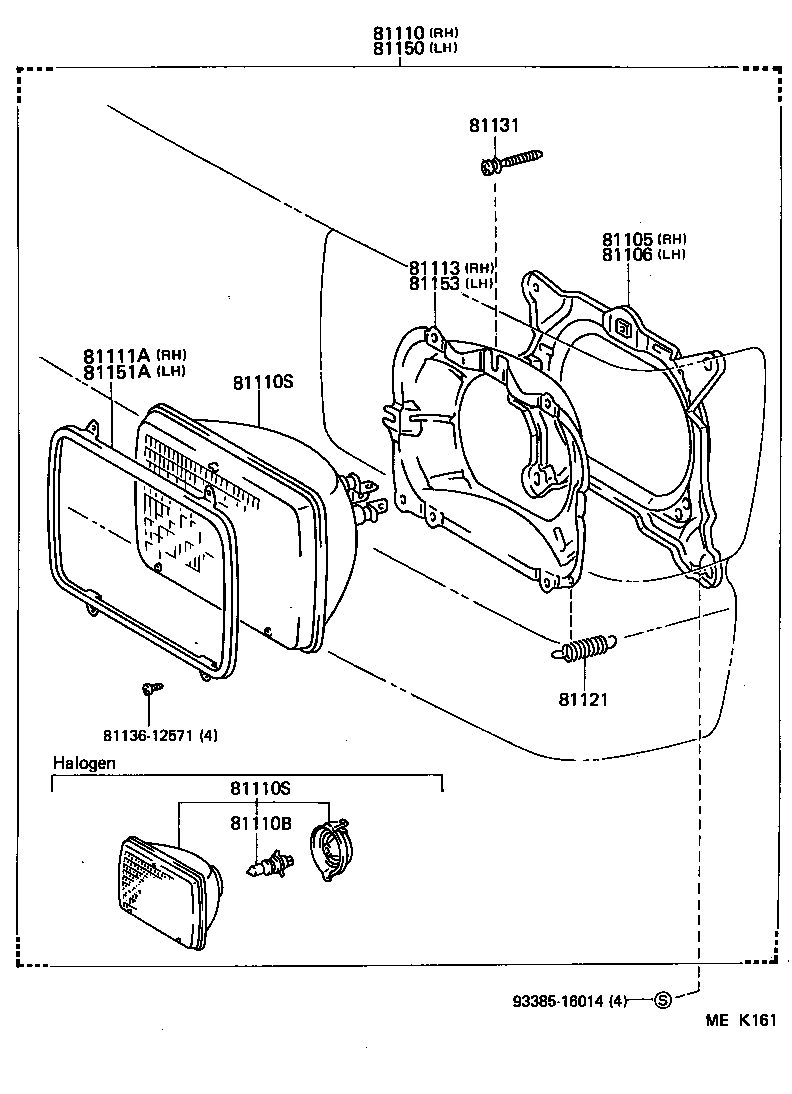

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 9338516014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J14

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J14

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81110 - HEADLAMP ASSY, RH
81110-95J14

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04029

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

12V 65/55W,*WB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04029

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

12V 65/55W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16220

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 4
81150 - HEADLAMP ASSY, LH
81150-95J14

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16220

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
Common parts
81136-12571
93385-16014
