LH51V-QB (1985)
Toyota Hiace Van,Wagon
ILLUST NO. 1 OF 4(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88454-95J02 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88454-95J03 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88454-95J02 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88454-95J03 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88453-87001 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88453-10010 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88453-87001 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88453-10010 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J09 |
LH50,51,60,61,7#..V..MTM FR CROSS MEMBER,W/SINGLE A.C. |
1 | ||
| 88460-95J04 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J09 |
LH50,51,60,61,7#..V..MTM FR CROSS MEMBER,W/SINGLE A.C. |
1 | ||
| 88460-95J04 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88460A - COVER, COOLER CONDENSER | ||||
| 88890-95J02 |
LH51..TD RR UNDER FLOOR,LWR |
1 | ||
| 88898-95J16 |
LH51..TD RR UNDER FLOOR,UPR |
1 | ||
| 88460A - COVER, COOLER CONDENSER | ||||
| 88890-95J02 |
LH51..TD RR UNDER FLOOR,LWR |
1 | ||
| 88898-95J16 |
LH51..TD RR UNDER FLOOR,UPR |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
LH50,51,60,61,7#..MTM..DSL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
LH50,51,60,61,7#..MTM..DSL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,7#..COM,V |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J09 |
LH51..TD |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88688-95J10 |
LH51..TD |
1 | ||
| 88460J - BRACKET, COOLER CONDENSER, NO.7 | ||||
| 88688-95J11 |
LH51..TD |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J04 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88461-95J05 |
LH50,51,60,61,7#..V..MTM FR CROSS MEMBER,W/SINGLE A.C. |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J04 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88461-95J05 |
LH50,51,60,61,7#..V..MTM FR CROSS MEMBER,W/SINGLE A.C. |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
LH50,51,6#,7#,YH5#,6#,71 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88550-10040 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88550-95J03 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88550-95J02 |
LH51..TD FR & RR UNDER FLOOR |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88550-10040 |
LH51,61,71..MTM..DSL FR CROSS MEMBER |
1 | ||
| 88550-95J03 |
LH51..TD RR UNDER FLOOR |
1 | ||
| 88550-95J02 |
LH51..TD FR & RR UNDER FLOOR |
2 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-95J02 |
LH51..TD |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
LH51..TD FR CONDENSER |
1 | ||
| 88648-95J03 |
LH51..TD RR CONDENSER |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
LH51..TD FR CONDENSER |
1 | ||
| 88648-95J03 |
LH51..TD RR CONDENSER |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 90179-08123 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||

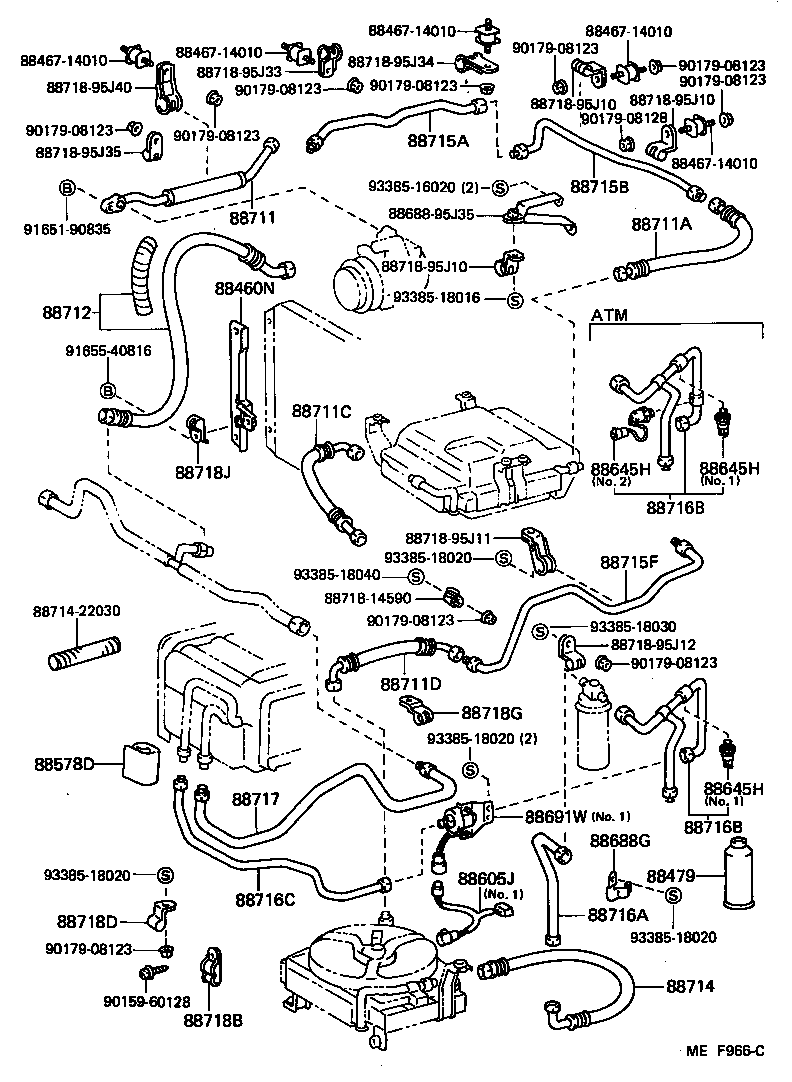

ILLUST NO. 2 OF 4(8508- )TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460N - BRACKET, COOLER CONDENSER, NO.8 | ||||
| 88688-95J04 |
LH50,51,60,61,7# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LH50,51,60,61,7#,YH5#,6#,71 400G |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-30360 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88578-95J06 |
LH51,61,71 |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-95J36 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J19 |
LH51..TD |
1 | ||
| 88711-95J09 |
LH50,51,60,61,7#..MTM..DSL |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95J06 |
LH51..TD |
1 | ||
| 88711-95J18 |
LH50,51,60,61,7#..V..MTM W/SINGLE AIR CONDITIONER |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-95J22 |
LH51..TD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J09 |
LH50,51,60,61,7#..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88709-95J01 |
LH51..TD A TYPE |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95J02 |
LH50,51,60,61,7#..V..MTM W/SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95J06 |
LH50,51,60,61,7#..MTM..DSL |
1 | ||
| 88715-95J11 |
LH51..TD |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-95J04 |
LH51..TD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J08 |
LH5#,6#,7#,YH50,52,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88716-95J33 |
LH51,61,71,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J08 |
LH5#,6#,7#,YH50,52,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88716-95J33 |
LH51,61,71,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-95J07 |
LH5#,6#,7#,YH50,52,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88717-95J17 |
LH51,61,71,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J05 |
LH50,51,60,61,7#,YH5#,6#,71 |
4 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-95J02 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 88467-14010 | ||||
| 88688-95J35 | ||||
| 88714-22030 | ||||
| 88718-14590 | ||||
| 88718-95J10 | ||||
| 88718-95J11 | ||||
| 88718-95J12 | ||||
| 88718-95J33 | ||||
| 88718-95J34 | ||||
| 88718-95J35 | ||||
| 88718-95J40 | ||||
| 90159-60128 | ||||
| 90179-08123 | ||||
| 90179-08128 | ||||
| 91651-90835 | ||||
| 91655-40816 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18030 | ||||
| 93385-18040 | ||||
