LH51V-PEE (1987)
Toyota Hiace Van,Wagon
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

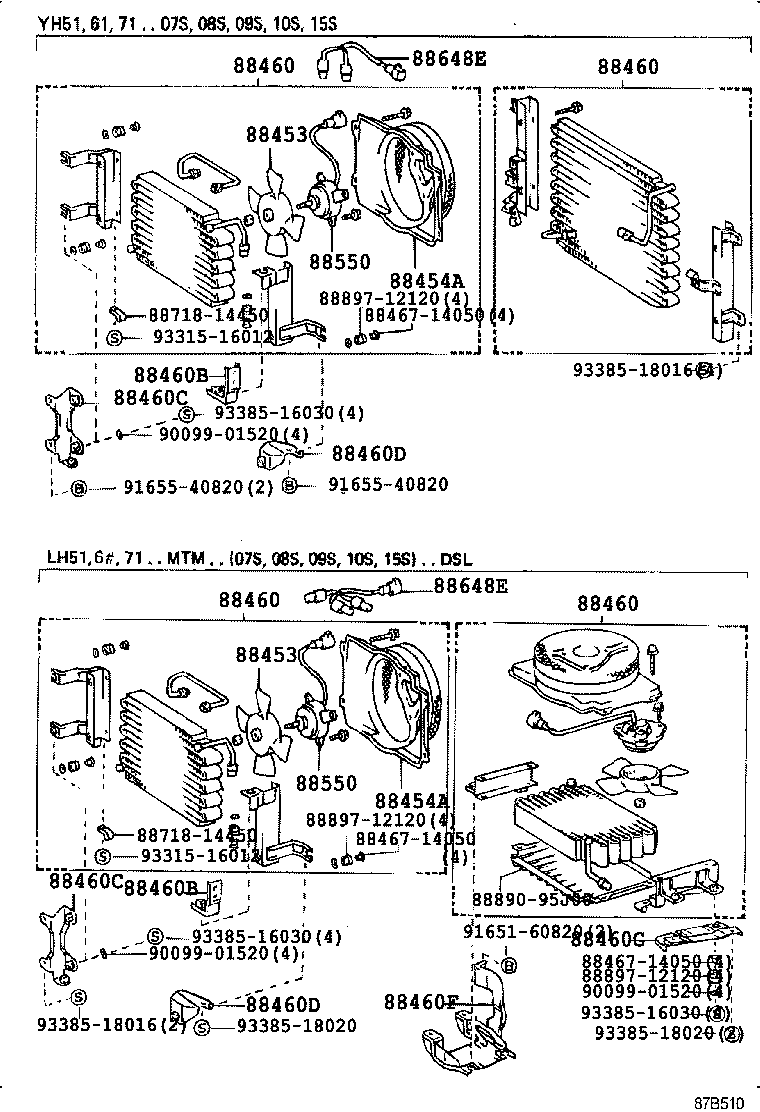

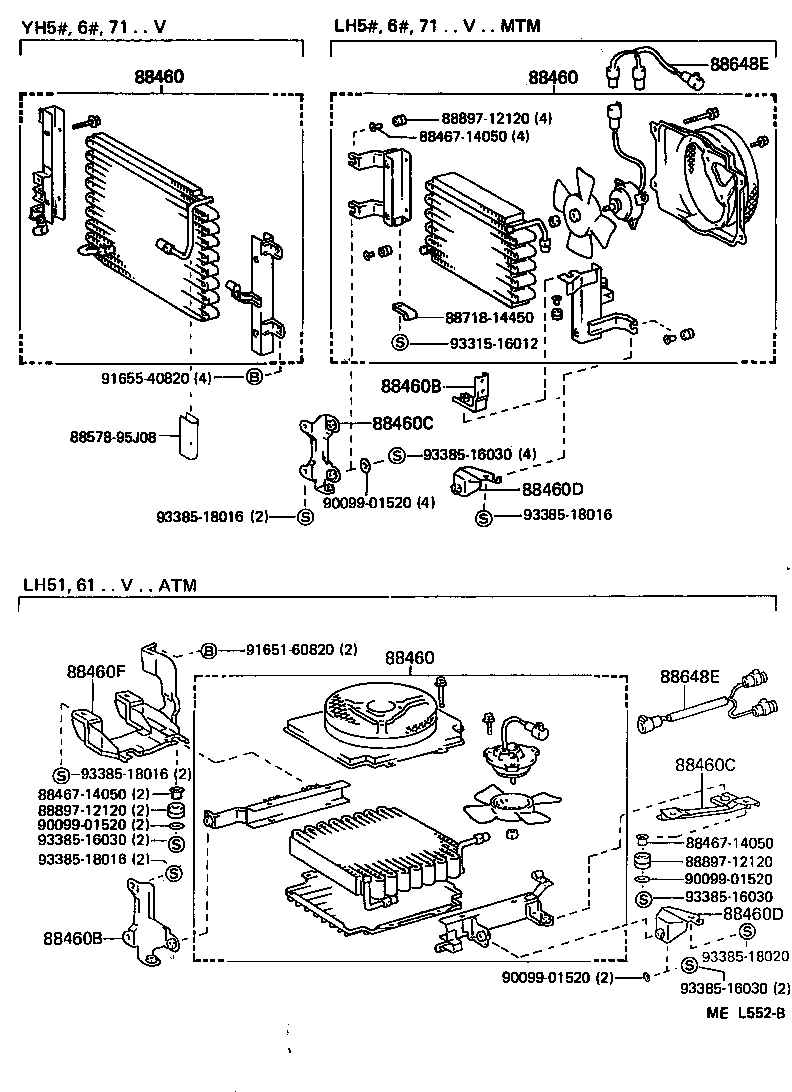

| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |

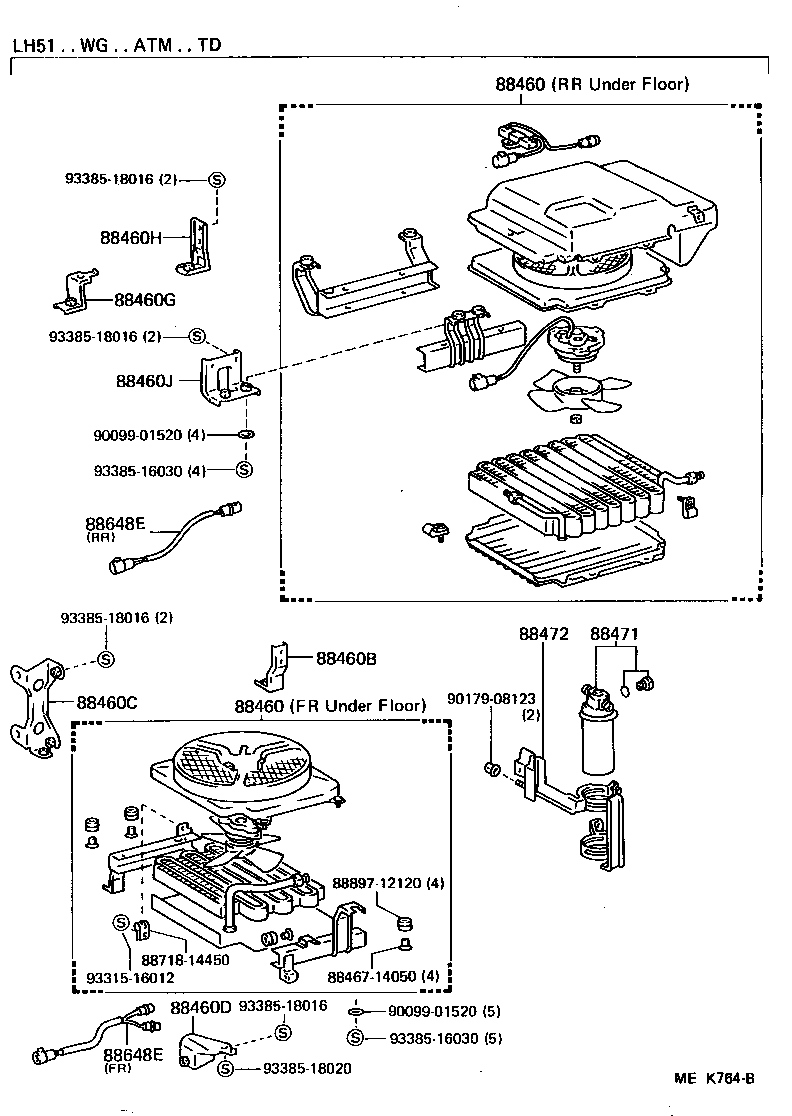

LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH61..10S,15S;LH71..09S,10S,15S;LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88688-95J00 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J00 |
LH51,61..SGL |
1 | ||
| 88688-95J00 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J09 |
LH51,61..SGL;LH51..09S..TD |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88890-95J00 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||

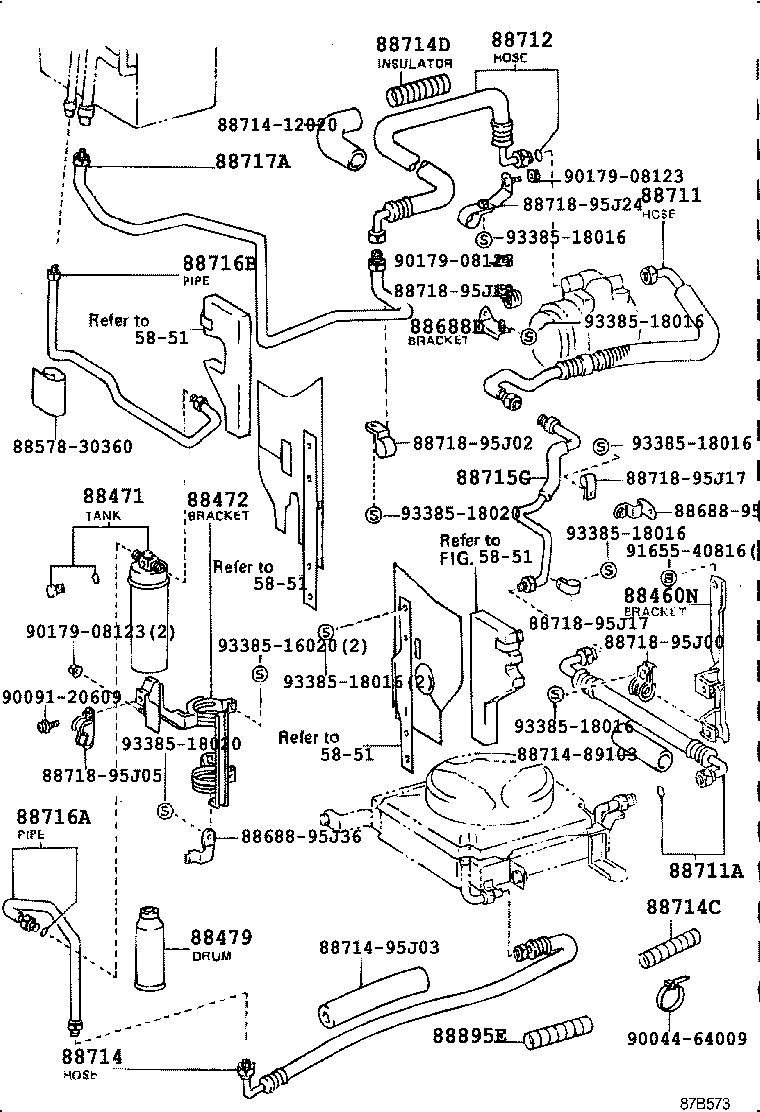

(8708- )LH51,61..VSG..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460N - BRACKET, COOLER CONDENSER, NO.8 | ||||
| 88688-95J04 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J04 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88688-95J04 |
LH66..SGL;LH71..10S,15S;LH61..(DX,SGL)..(05S,10S,15S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88688-95J04 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
YH50,51,52,6#..CD,GL |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61,71..(COM,WG)..(HRF,SRF);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88472-95J00 |
YH61..WT;LH66..V5D..DX;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH66,YH50..(CD,GL)..(03S,05S);LH5#,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88472-95J00 |
LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) 400G,ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 90986-02001 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) 400G,ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95J26 |
YH61..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH51,61,71,YH51,52,62,71..03S,05S,06S |
1 | ||
| 88688-95J26 |
YH61..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH51,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J26 |
YH61..5H..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..MTM..ST;YH61..V4D..(03S,05S);LH51,61,71,YH52,62,71..03S,05S,06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J15 |
LH51,61..SGL ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88711-95J09 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88711-95J17 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S |
1 | ||
| 88711-95J09 |
LH51,61,71..03S,05S,06S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88711-95J15 |
LH51,61..SGL;YH51,61..VSG..ATM ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95J06 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88711-95J15 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J09 |
LH51,61,71..V..(CD,DX,GL) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88704-95J04 |
LH61..10S,15S;LH71..09S,10S,15S;LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88712-95J07 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88712-95J09 |
LH51,61,71..V ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95J00 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88721-95J01 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61..SGL ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-87202 |
LH51,61..SGL ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714-95J03 |
LH51,6#..SGL..05S ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-14100 |
YH61..WT;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH51,61,71,YH51,52,62,71..V ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714-14100 |
YH61..WT;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH51,61,71,YH51,52,62,71..V..(CD,DX,GL) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95J10 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88715-95J06 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88715-95J04 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88715-95J11 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88715-95J13 |
LH51,61..ATM..(CTM,SGL)..DSL ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.4 |
1 | ||
| 88715-95J06 |
LH51,61,71..03S,05S,06S ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J51 |
YH61..WT;LH66..V5D..DX;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH66,YH50..(CD,GL)..(03S,05S);LH5#,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88716-95J51 |
LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88716-95J51 |
LH66..SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61,71..(COM,WG)..(HRF,SRF);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J33 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88716-95J28 |
YH61..GL..09S;LH61,YH61..10S,15S;LH51..(DX,SGL)..(05S,09S);LH61..V4D..(4FC,5H)..(05S,09S);LH71,YH51,71..(DX,GL)..(09S,10S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88716-95J33 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J35 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88717-95J29 |
LH66..SGL;YH61..GL..09S;LH51..(DX,SGL)..(05S,09S);LH6#,YH61..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH71,YH51,71..(DX,GL)..(09S,10S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88717-95J35 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88895E - INSULATOR, RETURN TUBE | ||||
| 88895-12030 |
YH61..10S;LH51,6#..SGL;YH61..GL..09S;YH51,71..(HRF,SRF)..(08S,09S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88895-12030 |
YH61..ATM;LH51,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
2 | ||
| 88895-12030 |
LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
2 | ||
| 88895-12030 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) |
2 | ||
| 88895-12030 |
YH50,51,52,6#,71..VSG ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88578-30360 | ||||
| 88688-95J25 | ||||
| 88688-95J36 | ||||
| 88714-12020 | ||||
| 88714-89103 | ||||
| 88714-95J03 | ||||
| 88718-95J00 | ||||
| 88718-95J02 | ||||
| 88718-95J05 | ||||
| 88718-95J17 | ||||
| 88718-95J18 | ||||
| 88718-95J24 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90179-08123 | ||||
| 91655-40816 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||

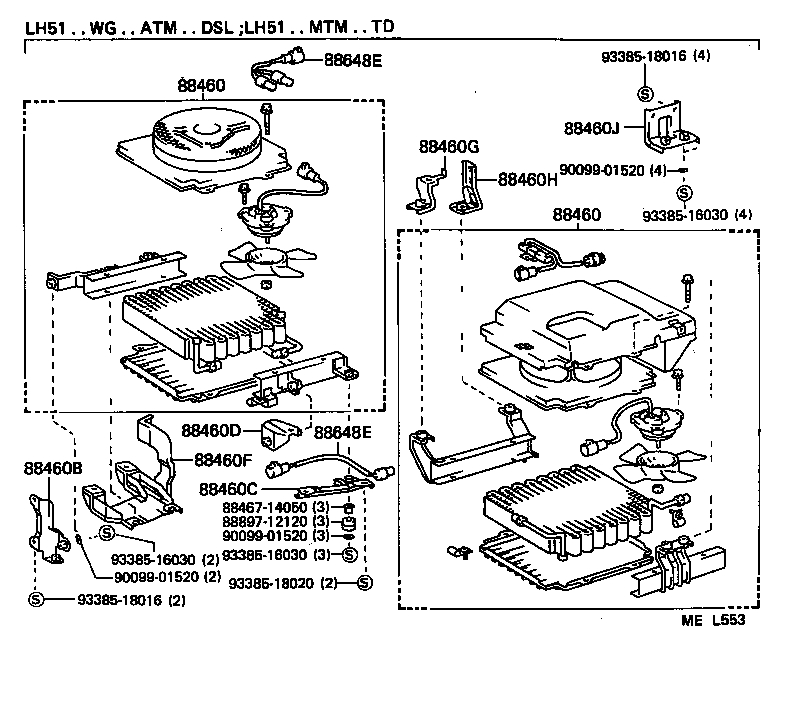

| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J09 |
LH51,61..SGL;LH51..09S..TD |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88688-95J10 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88460J - BRACKET, COOLER CONDENSER, NO.7 | ||||
| 88688-95J11 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
YH50,51,52,6#..CD,GL |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61,71..(COM,WG)..(HRF,SRF);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88472-95J00 |
YH61..WT;LH66..V5D..DX;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH66,YH50..(CD,GL)..(03S,05S);LH5#,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88472-95J00 |
LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 90179-08123 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )YH50,51,52,6#,71..VSG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

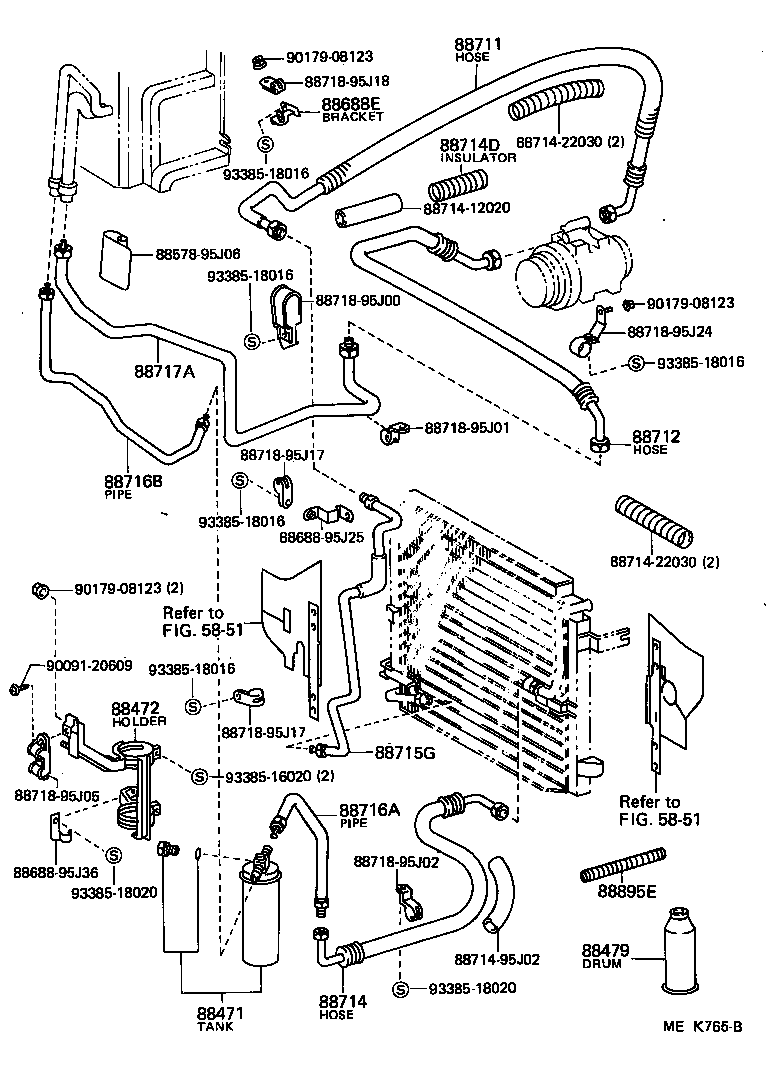

| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
YH50,51,52,6#..CD,GL |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88471-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61,71..(COM,WG)..(HRF,SRF);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88472-95J00 |
YH61..WT;LH66..V5D..DX;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH66,YH50..(CD,GL)..(03S,05S);LH5#,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88472-95J00 |
LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) 400G,ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 90986-02001 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) 400G,ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95J26 |
YH61..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH51,61,71,YH51,52,62,71..03S,05S,06S |
1 | ||
| 88688-95J26 |
YH61..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH51,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J26 |
YH61..5H..WT;YH50..03S,05S;YH61..HRF..ST;YH61..V5D..MTM..ST;YH61..V4D..(03S,05S);LH51,61,71,YH52,62,71..03S,05S,06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J15 |
LH51,61..SGL ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88711-95J09 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88711-95J17 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S |
1 | ||
| 88711-95J09 |
LH51,61,71..03S,05S,06S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88711-95J15 |
LH51,61..SGL;YH51,61..VSG..ATM ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J09 |
LH51,61,71..V..(CD,DX,GL) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88704-95J04 |
LH61..10S,15S;LH71..09S,10S,15S;LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88712-95J07 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88712-95J09 |
LH51,61,71..V ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95J00 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88721-95J01 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61..SGL ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88721-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-14100 |
YH61..WT;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH51,61,71,YH51,52,62,71..V ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88714-14100 |
YH61..WT;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH51,61,71,YH51,52,62,71..V..(CD,DX,GL) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95J10 |
YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88715-95J06 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88715-95J04 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88715-95J11 |
LH51,61..ATM..(CTM,SGL) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88715-95J13 |
LH51,61..ATM..(CTM,SGL)..DSL ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.4 |
1 | ||
| 88715-95J06 |
LH51,61,71..03S,05S,06S ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J51 |
YH61..WT;LH66..V5D..DX;YH61..HRF..ST;YH61..V5D..ST;YH61..V4D..(03S,05S);LH66,YH50..(CD,GL)..(03S,05S);LH5#,61,71,YH51,52,62,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88716-95J51 |
LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88716-95J51 |
LH66..SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61,71..(COM,WG)..(HRF,SRF);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J33 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88716-95J28 |
YH61..GL..09S;LH61,YH61..10S,15S;LH51..(DX,SGL)..(05S,09S);LH61..V4D..(4FC,5H)..(05S,09S);LH71,YH51,71..(DX,GL)..(09S,10S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88716-95J33 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J35 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(CD,DX,GL)..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88717-95J29 |
LH66..SGL;YH61..GL..09S;LH51..(DX,SGL)..(05S,09S);LH6#,YH61..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH71,YH51,71..(DX,GL)..(09S,10S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88717-95J35 |
YH61..WT;LH66..DX..08S;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH5#,6#,71,YH51,52,62,71..V..(03S,05S,06S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| 88895E - INSULATOR, RETURN TUBE | ||||
| 88895-12030 |
YH61..10S;LH51,6#..SGL;YH61..GL..09S;YH51,71..(HRF,SRF)..(08S,09S,15S) ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88895-12030 |
YH61..ATM;LH51,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
2 | ||
| 88895-12030 |
LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
2 | ||
| 88895-12030 |
LH51,61,71..(CD,DX,GL)..(03S,05S,06S) |
2 | ||
| 88895-12030 |
YH50,51,52,6#,71..VSG ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88578-95J06 | ||||
| 88688-95J25 | ||||
| 88688-95J36 | ||||
| 88714-12020 | ||||
| 88714-22030 | ||||
| 88714-95J02 | ||||
| 88718-95J00 | ||||
| 88718-95J01 | ||||
| 88718-95J02 | ||||
| 88718-95J05 | ||||
| 88718-95J17 | ||||
| 88718-95J18 | ||||
| 88718-95J24 | ||||
| 90091-20609 | ||||
| 90179-08123 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH61..10S,15S;LH71..09S,10S,15S;LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88688-95J00 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J00 |
LH51,61..SGL |
1 | ||
| 88688-95J00 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88578-95J08 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J07 |
LH51,61..ATM..(DX,GL) FR UNDER FLOOR |
1 | ||
| 88460-95J07 |
LH51,61..VSG..ATM FR UNDER FLOOR,ｱﾘ(ｼﾝｸﾞﾙ ｴｱｺﾝ) |
1 | ||
| 88460-95J00 |
YH61..WT;YH61..V5D..ST;YH61..V4D..(03S,05S);YH61,71..HRF..06S..ST;YH50,51,52,62..03S,05S RADIATOR |
1 | ||
| 88460-95J04 |
LH51,61..ATM..(CTM,SGL) RR UNDER FLOOR |
1 | ||
| 88460-95J05 |
LH51,61..ATM..(CTM,SGL)..DSL FR UNDER FLOOR,ｱﾘ(ﾂｲﾝ ｴｱｺﾝ) |
1 | ||
| 88460-95J07 |
LH51,61,YH51,61..VSG..ATM FR UNDER FLOOR |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J01 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J01 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J01 |
LH51,61..SGL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J03 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88688-95J03 |
LH51,61..SGL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH66..GL..05S;LH66..V5D..DX;LH5#,61,71..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..ATM;LH66..GL..05S;LH66..V5D..DX;LH5#,61,71,YH51..(CD,DX,GL)..(03S,05S,06S) |
1 | ||
| 88688-95J56 |
YH61..GL..09S;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S,15S);LH71,YH51,61..(COM,WG)..(HRF,SRF);LH51,YH71..(HRF,SRF)..(CTM,DX,SCM,SGL)..(05S,08S,09S,15S) |
1 | ||
| 88688-95J56 |
LH66..DX..08S;LH66..SGL..05S;LH51,61,71..V4D..(4FC,5H)..(05S,09S) |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH61..10S,15S;LH71..09S,10S,15S;LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S) |
1 | ||
| 88688-95J00 |
LH51,61..ATM..(DX,GL) |
1 | ||
| 88688-95J00 |
LH51,61..SGL |
1 | ||
| 88688-95J00 |
LH51,61,YH51,61..ATM..(DX,GL) |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J09 |
LH51,61..SGL;LH51..09S..TD |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88688-95J10 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88460J - BRACKET, COOLER CONDENSER, NO.7 | ||||
| 88688-95J11 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J03 |
LH51,61..ATM..(CTM,SGL) |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

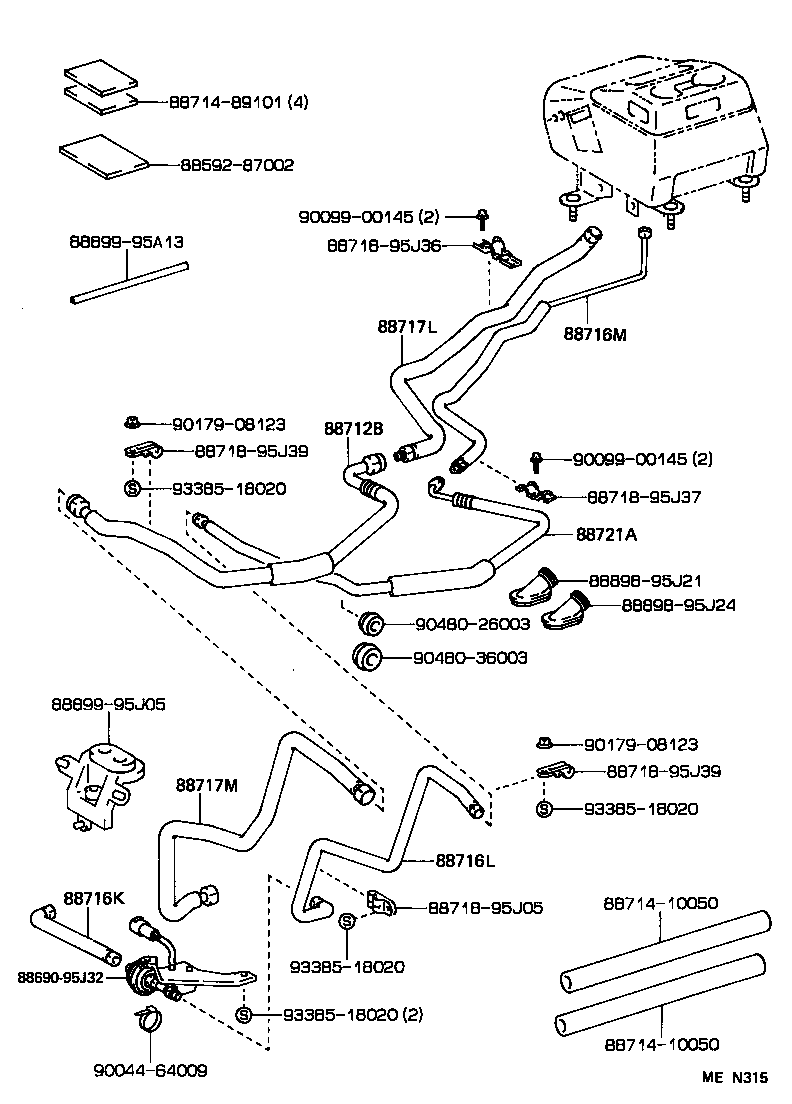

| Common parts | ||||
| 88592-87002 | ||||
| 88690-95J32 | ||||
| 88714-10050 | ||||
| 88714-89101 | ||||
| 88718-95J05 | ||||
| 88718-95J36 | ||||
| 88718-95J37 | ||||
| 88718-95J39 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 88899-95A13 | ||||
| 88899-95J05 | ||||
| 90044-64009 | ||||
| 90099-00145 | ||||
| 90179-08123 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-18020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
