LH51V-PEE (1987)
Toyota Hiace Van,Wagon

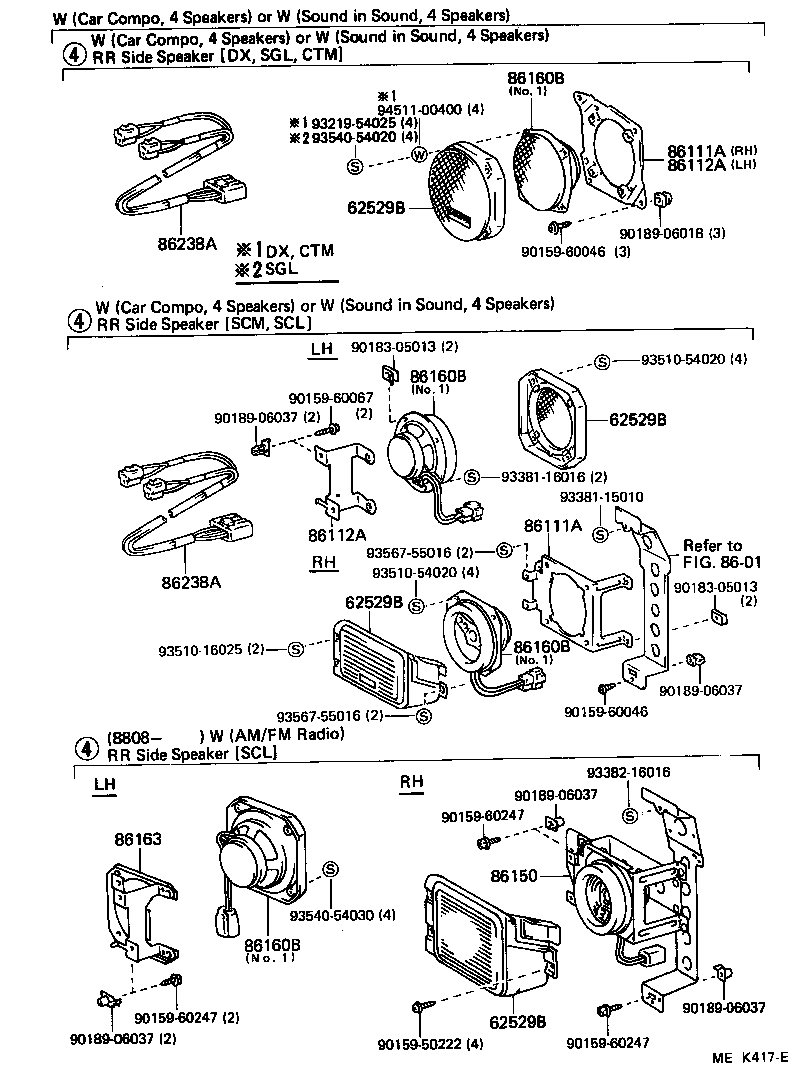

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J09 |
LH51,6#..SGL ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J07 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｱﾘ(AM ﾗｼﾞｵ),左側 |
1 | ||
| 86160-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) ｱﾘ(AM/FM ﾗｼﾞｵ) OR ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ),左側 |
1 | ||
| 86160-95J10 |
LH66..DX..08S;LH51..V..(CD,DX,GL);LH56,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,15S) 右側 |
1 | ||
| 86160-95J10 |
LH66..SGL;LH51..(DX,SGL)..(05S,09S);LH61,YH61..(DX,SGL)..(05S,10S) 右側 |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
ILLUST NO. 2 OF 3(8708- )LH6#,YH57..SCM,SGL ; (8708- )LH51,YH51..CTM,DX,SCL,SCM,SGL..05S,07S,0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86111A - BRACKET, STEREO SPEAKER, RH | ||||
| 86111-95J00 |
LH6#..SGL;LH51,YH51..(CTM,DX,SGL)..(05S,09S) |
1 | ||
| 86111A - BRACKET, STEREO SPEAKER, RH | ||||
| 86111-95J00 |
LH6#..SGL;LH51,YH51..(CTM,DX,SGL)..(05S,09S) |
1 | ||
| 86112A - BRACKET, STEREO SPEAKER, LH | ||||
| 86112-95J00 |
LH6#..SGL;LH51,YH51..(CTM,DX,SGL)..(05S,09S) |
1 | ||
| 86112A - BRACKET, STEREO SPEAKER, LH | ||||
| 86112-95J00 |
LH6#..SGL;LH51,YH51..(CTM,DX,SGL)..(05S,09S) |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J20 |
LH51,6#..SGL NO.1 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J20 |
LH51,6#..SGL NO.1 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J20 |
LH51,6#..SGL NO.1 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J20 |
LH51,6#..SGL NO.1 |
2 | ||
| 86238A - WIRE, SPEAKER, NO.8 | ||||
| 86202-95J05 |
LH6#,YH57..SCM,SGL;LH51,YH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S) |
1 | ||
| 86238A - WIRE, SPEAKER, NO.8 | ||||
| 86202-95J05 |
LH6#,YH57..SCM,SGL;LH51,YH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S) |
1 | ||
| Common parts | ||||
| 90159-50222 | ||||
| 90159-60046 | ||||
| 90159-60067 | ||||
| 90159-60247 | ||||
| 90183-05013 | ||||
| 90189-06018 | ||||
| 90189-06037 | ||||
| 93219-54025 | ||||
| 93381-15010 | ||||
| 93381-16016 | ||||
| 93382-16016 | ||||
| 93510-16025 | ||||
| 93510-54020 | ||||
| 93540-54020 | ||||
| 93540-54030 | ||||
| 93567-55016 | ||||
| 94511-00400 | ||||
