LH51V-PEE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

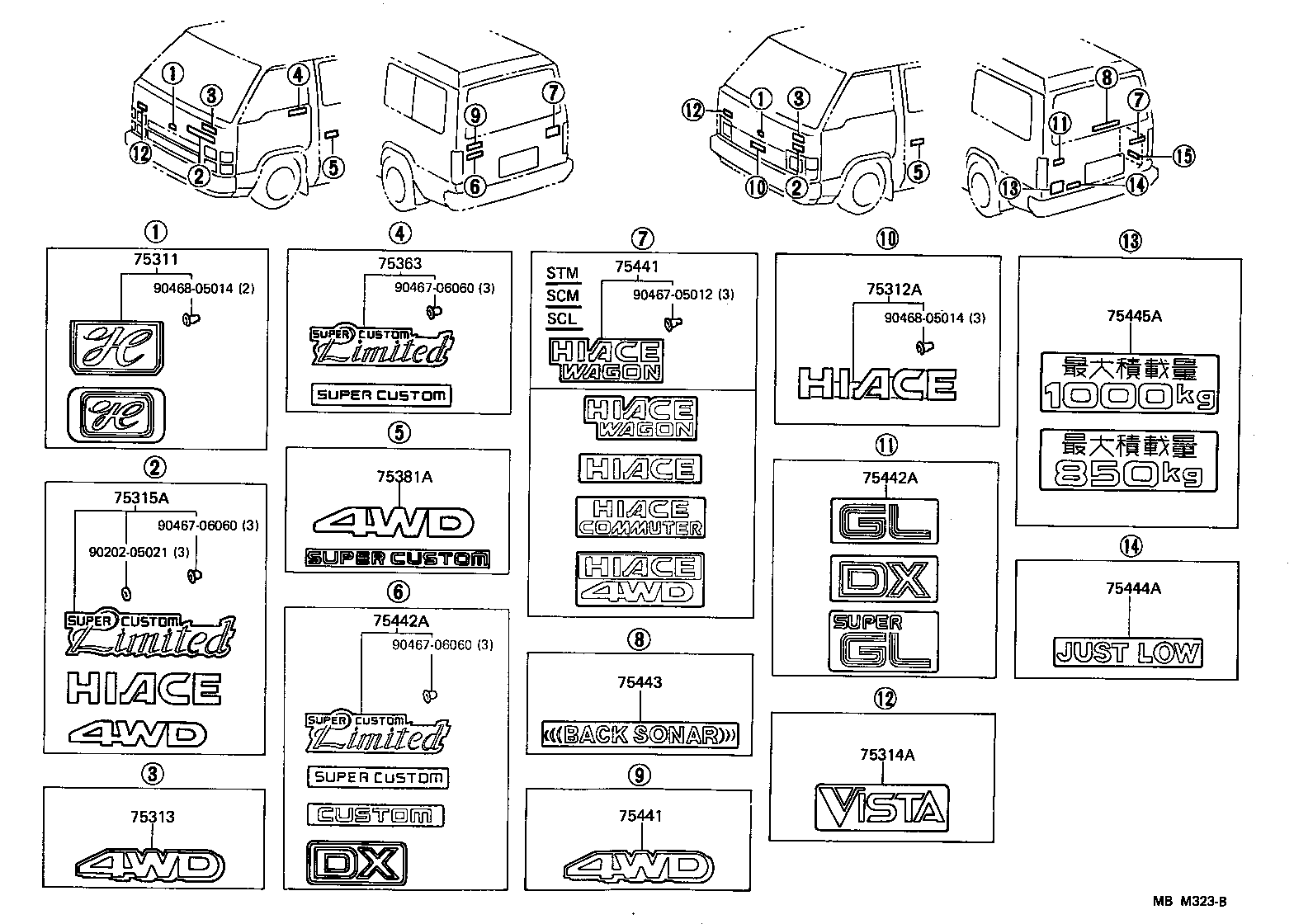

Click highlighted areas on diagram

diagram 75311 75312A 75313 75314A 75315A 75363 75381A 75441 75441 75442A 75442A 75443 75444A 75445A 9020205021 9046705012 9046706060 9046706060 9046706060 9046805014 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 1
75312A - PLATE, FRONT NAME, NO.2
75312-95J04

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

HIACE

 1
75314A - EMBLEM, RADIATOR GRILLE, NO,4
75314-95J01

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

 1
75314-95J01

LH66..05S;LH51..CD,DX,GL,SCM,SGL;LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S);LH56,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

 1
75315A - MARK, FRONT PANEL
75315-95J01

LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S);LH71,YH51,61..WG..(08S,09S,10S);LH51..(CTM,DX,SCM,SGL)..(05S,08S,09S)

 1
75441 - PLATE, REAR NAME, NO.1
75441-95J05

LH51,61,71,YH50,51,52,6#,71..V

HIACE

 1
75441 - PLATE, REAR NAME, NO.1
75441-95J05

LH51,61,71,YH50,51,52,6#,71..V

HIACE

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-95J04

LH5#,6#,71,YH50,51,61..GL..(05S,09S,15S)

GL

 1
75442-95J06

LH51,6#..SGL

SUPER GL

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-95J04

LH5#,6#,71,YH50,51,61..GL..(05S,09S,15S)

GL

 1
75442-95J06

LH51,6#..SGL

SUPER GL

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-95J05

LH71..15S;LH61..10S;LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..GL,SCL,SCM,SGL

BACK SONAR

 1
75445A - PLATE, BACK DOOR NAME, NO.5
75445-95J02

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..V..(03S,05S,06S,09S)

1000KG

 1
Common parts
90202-05021
90467-05012
90467-06060
90468-05014
