LH51V-MNE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH51,61,YH50,51,61..GL,SGL

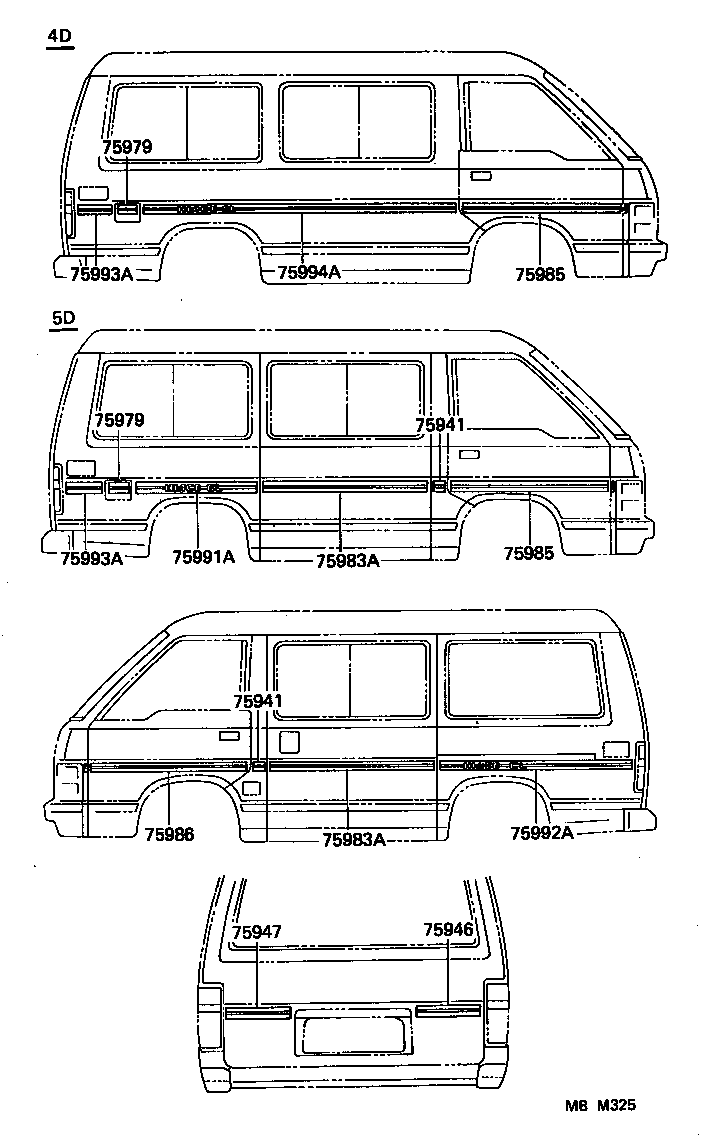

Click highlighted areas on diagram

diagram 75941 75941 75946 75947 75979 75979 75983A 75983A 75985 75985 75986 75991A 75992A 75993A 75993A 75994A
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-95J2703

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75941 - STRIPE, CENTER PILLAR, RH
75941-95J2703

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75946 - STRIPE, BACK DOOR, RH
75946-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75947 - STRIPE, BACK DOOR, LH
75947-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75979 - STRIPE, FUEL FILLER OPENING LID
76993-95J2803

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75979 - STRIPE, FUEL FILLER OPENING LID
76993-95J2803

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75983A - STRIPE, SLIDE DOOR
75983-95J2903

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75983A - STRIPE, SLIDE DOOR
75983-95J2903

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75992A - STRIPE, QUARTER, LH
75992-95J5203

LH51,YH50,51..GL

SILVER/RED,22H

 1
75993A - STRIPE, QUARTER, REAR RH
75993-95J4003

LH51,YH50,51..GL

SILVER/RED,22H

 1
75993A - STRIPE, QUARTER, REAR RH
75993-95J4003

LH51,YH50,51..GL

SILVER/RED,22H

 1
75994A - STRIPE, QUARTER EXTENSION
75994-95J4503

LH51,YH50..V4D..GL

SILVER/RED,22H

 1

(8801-8805)LH66..05S ; (8801-8805)DX,SGL..08S ;(8801-8805)LH5#,61,71,YH5#,6#,71

Click highlighted areas on diagram

ﾘﾋﾞﾝｸﾞ ｻﾙ-ﾝ EX

diagram 75941 75945 75946 75947 75979 75983A 75985 75986 75992A 75993A 75994A 75995A 75995A
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-95J2703

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75946 - STRIPE, BACK DOOR, RH
75946-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75947 - STRIPE, BACK DOOR, LH
75947-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75979 - STRIPE, FUEL FILLER OPENING LID
76993-95J2803

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75983A - STRIPE, SLIDE DOOR
75983-95J2903

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75992A - STRIPE, QUARTER, LH
75992-95J5203

LH51,YH50,51..GL

SILVER/RED,22H

 1
75993A - STRIPE, QUARTER, REAR RH
75993-95J4003

LH51,YH50,51..GL

SILVER/RED,22H

 1
75994A - STRIPE, QUARTER EXTENSION
75994-95J4503

LH51,YH50..V4D..GL

SILVER/RED,22H

 1

(8805- )

Click highlighted areas on diagram

ﾘﾋﾞﾝｸﾞ ｻﾙ-ﾝ EX

diagram 75941 75946 75947 75979 75983A 75983A 75985 75985 75986 75986 75992A 75992A 75993A 75994A 75994A 75995A 75995A 75998E 75999E
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-95J2703

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75946 - STRIPE, BACK DOOR, RH
75946-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75947 - STRIPE, BACK DOOR, LH
75947-95J2503

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75979 - STRIPE, FUEL FILLER OPENING LID
76993-95J2803

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75983A - STRIPE, SLIDE DOOR
75983-95J2903

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75983A - STRIPE, SLIDE DOOR
75983-95J2903

LH51,61,YH50,61..V4D..GL

SILVER/RED,22H

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95J2903

LH51,61,YH50,51,61..GL

SILVER/RED,22H

 1
75992A - STRIPE, QUARTER, LH
75992-95J5203

LH51,YH50,51..GL

SILVER/RED,22H

 1
75992A - STRIPE, QUARTER, LH
75992-95J5203

LH51,YH50,51..GL

SILVER/RED,22H

 1
75993A - STRIPE, QUARTER, REAR RH
75993-95J4003

LH51,YH50,51..GL

SILVER/RED,22H

 1
75994A - STRIPE, QUARTER EXTENSION
75994-95J4503

LH51,YH50..V4D..GL

SILVER/RED,22H

 1
75994A - STRIPE, QUARTER EXTENSION
75994-95J4503

LH51,YH50..V4D..GL

SILVER/RED,22H

 1
