LH51G-QD (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH5#,6#,71,YH57

Click highlighted areas on diagram

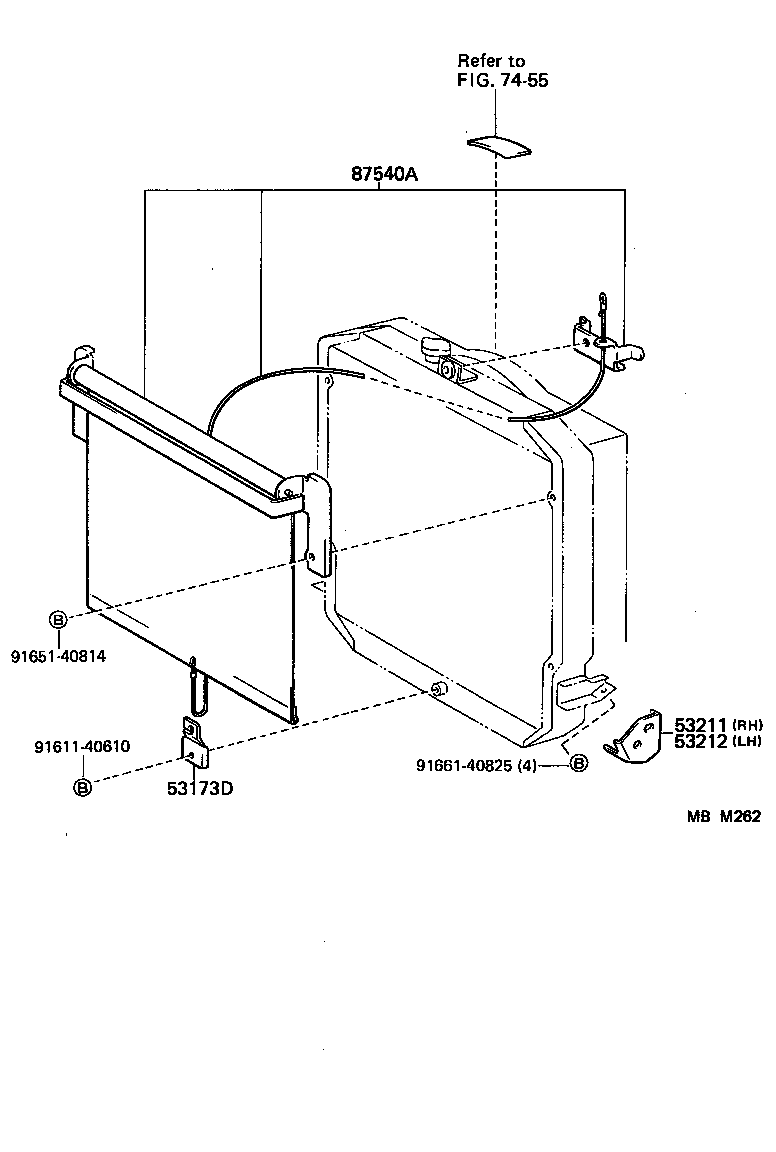

diagram 53173D 53211 53212 7455 87540A 9161140610 9165140814 9166140825
Part # Description Qty Price
53173D - GUIDE, RADIATOR SHUTTER
87511-95J00

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87540A - SHUTTER ASSY, RADIATOR WINDOW
87540-95J00

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
Common parts
91611-40610
91651-40814
91661-40825
Linked diagrams
7455
