LH51G-PQSX (1987)
Toyota Hiace Van,Wagon
ILLUST NO. 3 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J67 |
LH51..07S |
1 | ||
| 88605-95J68 |
LH51,YH51..07S |
1 | ||
| 88605-95J71 |
LH51..07S |
1 | ||
| 88605-95J46 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ ﾋ-ﾀ |
1 | ||
| 88605-95J77 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR ﾊ-ﾈｽ |
1 | ||
| 88605-95J78 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),RR ﾊ-ﾈｽ |
1 | ||
| 88605-95J75 |
LH51..07S |
1 | ||
| 88605-95J74 |
LH51..07S |
1 | ||
| 88605-95J73 |
LH51..07S |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
5 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
5 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95705 |
LH51..07S NO.3 |
1 | ||
| 88650-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88650-95J14 |
LH51..07S NO.1 |
1 | ||
| 88650-95J13 |
LH51..07S NO.1 |
1 | ||
| 88650-95J11 |
LH51..07S NO.1 |
1 | ||
| 88660A - SERVO ASSY, AIR CONDITIONER, NO.1 | ||||
| 88660-95J02 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ |
1 | ||
| 88660-95J01 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 88578-95J04 | ||||
| 88899-95J08 | ||||
| 90044-64009 | ||||
| 90179-08123 | ||||
| 93385-18016 | ||||

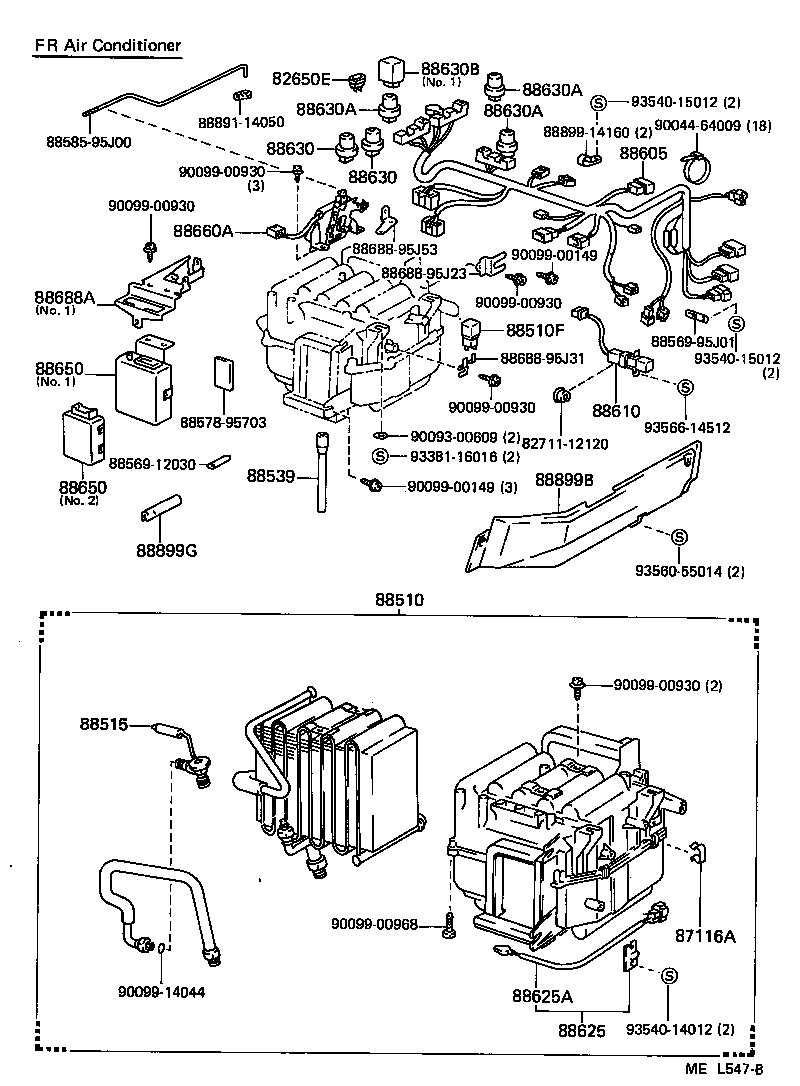

ILLUST NO. 1 OF 5(8708- )07S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650E - BREAKER ASSY, WIRING CIRCUIT | ||||
| 82650-20011 |
LH51..07S 30A |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
LH51,YH51..07S |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J09 |
LH51,YH51..07S RR |
1 | ||
| 88510-95J55 |
LH51,YH51..07S FR |
1 | ||
| 88510-95J09 |
LH51..07S ﾘﾔ |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-95J03 |
LH51..07S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
LH51,YH51..07S FR COOLER |
1 | ||
| 88515-95J01 |
LH51..07S COOLING BOX |
2 | ||
| 88515-95J00 |
LH51,YH51..07S RR COOLER |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12010 |
LH51..07S |
1 | ||
| 88539-95701 |
LH51,YH51..07S |
1 | ||
| 88539-95J03 |
LH51,YH51..07S |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J67 |
LH51..07S |
1 | ||
| 88605-95J68 |
LH51,YH51..07S |
1 | ||
| 88605-95J71 |
LH51..07S |
1 | ||
| 88605-95J46 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ ﾋ-ﾀ |
1 | ||
| 88605-95J77 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR ﾊ-ﾈｽ |
1 | ||
| 88605-95J78 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),RR ﾊ-ﾈｽ |
1 | ||
| 88605-95J75 |
LH51..07S |
1 | ||
| 88605-95J74 |
LH51..07S |
1 | ||
| 88605-95J73 |
LH51..07S |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR |
1 | ||
| 84660-95J07 |
YH51..SRF..08S;LH51,YH51..(CTM,SCL)..(CBR,TD) FR |
1 | ||
| 84660-95J07 |
LH51..07S FR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH51,YH51..07S |
1 | ||
| 88625-95J04 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88625-28011 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.3 |
1 | ||
| 88625-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
5 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
5 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
5 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 85913-30020 |
LH51,61,71,YH51,57,61,71..COM,WG NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95705 |
LH51..07S NO.3 |
1 | ||
| 88650-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88650-95J14 |
LH51..07S NO.1 |
1 | ||
| 88650-95J13 |
LH51..07S NO.1 |
1 | ||
| 88650-95J11 |
LH51..07S NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95705 |
LH51..07S NO.3 |
1 | ||
| 88650-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88650-95J14 |
LH51..07S NO.1 |
1 | ||
| 88650-95J13 |
LH51..07S NO.1 |
1 | ||
| 88650-95J11 |
LH51..07S NO.1 |
1 | ||
| 88660A - SERVO ASSY, AIR CONDITIONER, NO.1 | ||||
| 88660-95J02 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ |
1 | ||
| 88660-95J01 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-95J03 |
LH51,YH51..07S |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,YH51..07S |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 88569-12030 | ||||
| 88569-95J01 | ||||
| 88578-95703 | ||||
| 88585-95J00 | ||||
| 88688-95J23 | ||||
| 88688-95J31 | ||||
| 88688-95J53 | ||||
| 88891-14050 | ||||
| 88899-14160 | ||||
| 90044-64009 | ||||
| 90093-00609 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90099-14044 | ||||
| 93381-16016 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
| 93560-55014 | ||||
| 93566-14512 | ||||
ILLUST NO. 2 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
LH51,YH51..07S |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
LH51..07S |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 87105-95J00 |
LH51,YH51..07S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J01 |
LH51..07S |
1 | ||
| 88501-95J10 |
LH51..4FC..TD ｸ-ﾙﾎﾞﾂｸｽ ﾖｳ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J09 |
LH51,YH51..07S RR |
1 | ||
| 88510-95J55 |
LH51,YH51..07S FR |
1 | ||
| 88510-95J09 |
LH51..07S ﾘﾔ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
LH51,YH51..07S FR COOLER |
1 | ||
| 88515-95J01 |
LH51..07S COOLING BOX |
2 | ||
| 88515-95J00 |
LH51,YH51..07S RR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J04 |
LH51,YH51..07S |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J05 |
LH51,YH51..07S |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95J06 |
LH51,YH51..07S |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88536-95J07 |
LH51,YH51..07S |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J06 |
LH51,YH51..07S |
4 | ||
| 88539-95J08 |
LH51,YH51..07S |
4 | ||
| 88539-95J07 |
LH51,YH51..07S |
4 | ||
| 88539-95J03 |
LH51..07S |
2 | ||
| 88539-95J07 |
LH51..07S |
2 | ||
| 88539-95J08 |
LH51..07S |
2 | ||
| 88539-95J06 |
LH51..07S |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J06 |
LH51,YH51..07S |
4 | ||
| 88539-95J08 |
LH51,YH51..07S |
4 | ||
| 88539-95J07 |
LH51,YH51..07S |
4 | ||
| 88539-95J03 |
LH51..07S |
2 | ||
| 88539-95J07 |
LH51..07S |
2 | ||
| 88539-95J08 |
LH51..07S |
2 | ||
| 88539-95J06 |
LH51..07S |
2 | ||
| 88539H - CONNECTOR | ||||
| 88897-87101 |
LH51,YH51..07S |
4 | ||
| 88897-87101 |
LH51..07S |
2 | ||
| 88539H - CONNECTOR | ||||
| 88897-87101 |
LH51,YH51..07S |
4 | ||
| 88897-87101 |
LH51..07S |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-95J00 |
LH51,YH51..07S |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-95J00 |
LH51,YH51..07S |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J67 |
LH51..07S |
1 | ||
| 88605-95J68 |
LH51,YH51..07S |
1 | ||
| 88605-95J71 |
LH51..07S |
1 | ||
| 88605-95J46 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ ﾋ-ﾀ |
1 | ||
| 88605-95J77 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR ﾊ-ﾈｽ |
1 | ||
| 88605-95J78 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),RR ﾊ-ﾈｽ |
1 | ||
| 88605-95J75 |
LH51..07S |
1 | ||
| 88605-95J74 |
LH51..07S |
1 | ||
| 88605-95J73 |
LH51..07S |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR |
1 | ||
| 84660-95J07 |
YH51..SRF..08S;LH51,YH51..(CTM,SCL)..(CBR,TD) FR |
1 | ||
| 84660-95J07 |
LH51..07S FR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH51,YH51..07S |
1 | ||
| 88625-95J04 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88625-28011 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.3 |
1 | ||
| 88625-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-95J00 |
LH51,YH51..07S |
1 | ||
| 88635-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,YH51..07S |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,YH51..07S |
1 | ||
| Common parts | ||||
| 88569-12170 | ||||
| 88578-30360 | ||||
| 88578-95J00 | ||||
| 88899-95A14 | ||||
| 90099-00905 | ||||
| 90099-00930 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14067 | ||||
| 90179-06032 | ||||
| 90480-25001 | ||||
| 90480-32006 | ||||
| 93385-16014 | ||||
| 93540-15016 | ||||
ILLUST NO. 4 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95J03 |
LH51..07S |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
LH51..07S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J01 |
LH51..07S |
1 | ||
| 88501-95J10 |
LH51..4FC..TD ｸ-ﾙﾎﾞﾂｸｽ ﾖｳ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
LH51,YH51..07S FR COOLER |
1 | ||
| 88515-95J01 |
LH51..07S COOLING BOX |
2 | ||
| 88515-95J00 |
LH51,YH51..07S RR COOLER |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95J0806 |
LH51..07S BROWN,TRIM4# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-87010 |
LH51..07S |
2 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-95J01 |
LH51..07S |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12010 |
LH51..07S |
1 | ||
| 88539-95701 |
LH51,YH51..07S |
1 | ||
| 88539-95J03 |
LH51,YH51..07S |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J67 |
LH51..07S |
1 | ||
| 88605-95J68 |
LH51,YH51..07S |
1 | ||
| 88605-95J71 |
LH51..07S |
1 | ||
| 88605-95J46 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),ﾘﾔ ﾋ-ﾀ |
1 | ||
| 88605-95J77 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR ﾊ-ﾈｽ |
1 | ||
| 88605-95J78 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),RR ﾊ-ﾈｽ |
1 | ||
| 88605-95J75 |
LH51..07S |
1 | ||
| 88605-95J74 |
LH51..07S |
1 | ||
| 88605-95J73 |
LH51..07S |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
6 | ||
| 90987-03001 |
LH51..07S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 88630-95702 |
LH51..07S |
2 | ||
| 90987-02004 |
LH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
4 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95J05 |
LH51,YH51..07S |
1 | ||
| 88648-95J12 |
LH51..07S |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95705 |
LH51..07S NO.3 |
1 | ||
| 88650-95J06 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88650-95J14 |
LH51..07S NO.1 |
1 | ||
| 88650-95J13 |
LH51..07S NO.1 |
1 | ||
| 88650-95J11 |
LH51..07S NO.1 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95J67 |
LH51..07S |
1 | ||
| 88892J - COVER SUB-ASSY | ||||
| 88892-95J00 |
LH51..07S |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-95J01 |
LH51..07S |
1 | ||
| Common parts | ||||
| 88569-12030 | ||||
| 88569-95J02 | ||||
| 88625-95J05 | ||||
| 88635-95J01 | ||||
| 88659-12170 | ||||
| 88688-95J67 | ||||
| 88718-95J32 | ||||
| 88899-87011 | ||||
| 88899-95J12 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-00145 | ||||
| 90105-11008 | ||||
| 90179-08123 | ||||
| 90480-25024 | ||||
| 93540-15012 | ||||
| 93540-55012 | ||||
ILLUST NO. 5 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH51,YH51..07S |
1 | ||
| 88625-95J04 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88625-28011 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.3 |
1 | ||
| 88625-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH51,YH51..07S |
1 | ||
| 88625-95J04 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88625-28011 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.3 |
1 | ||
| 88625-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH51,YH51..07S |
1 | ||
| 88625-95J04 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.2 |
1 | ||
| 88625-28011 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.3 |
1 | ||
| 88625-95J03 |
LH51,YH51..07S ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1 |
1 | ||
| Common parts | ||||
| 88561-95J03 | ||||
| 88891-14030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
