LH51G-PESX (1985)
Toyota Hiace Van,Wagon
ILLUST NO. 2 OF 2(8508- )2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-54010 |
2LT..LH51 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2LT..LH51 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
2LT..LH51 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-54040 |
2LT..LH51 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
2LT..LH51 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LT..LH51 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LT..LH51 |
2 | ||
| Common parts | ||||
| 90523-04002 | ||||

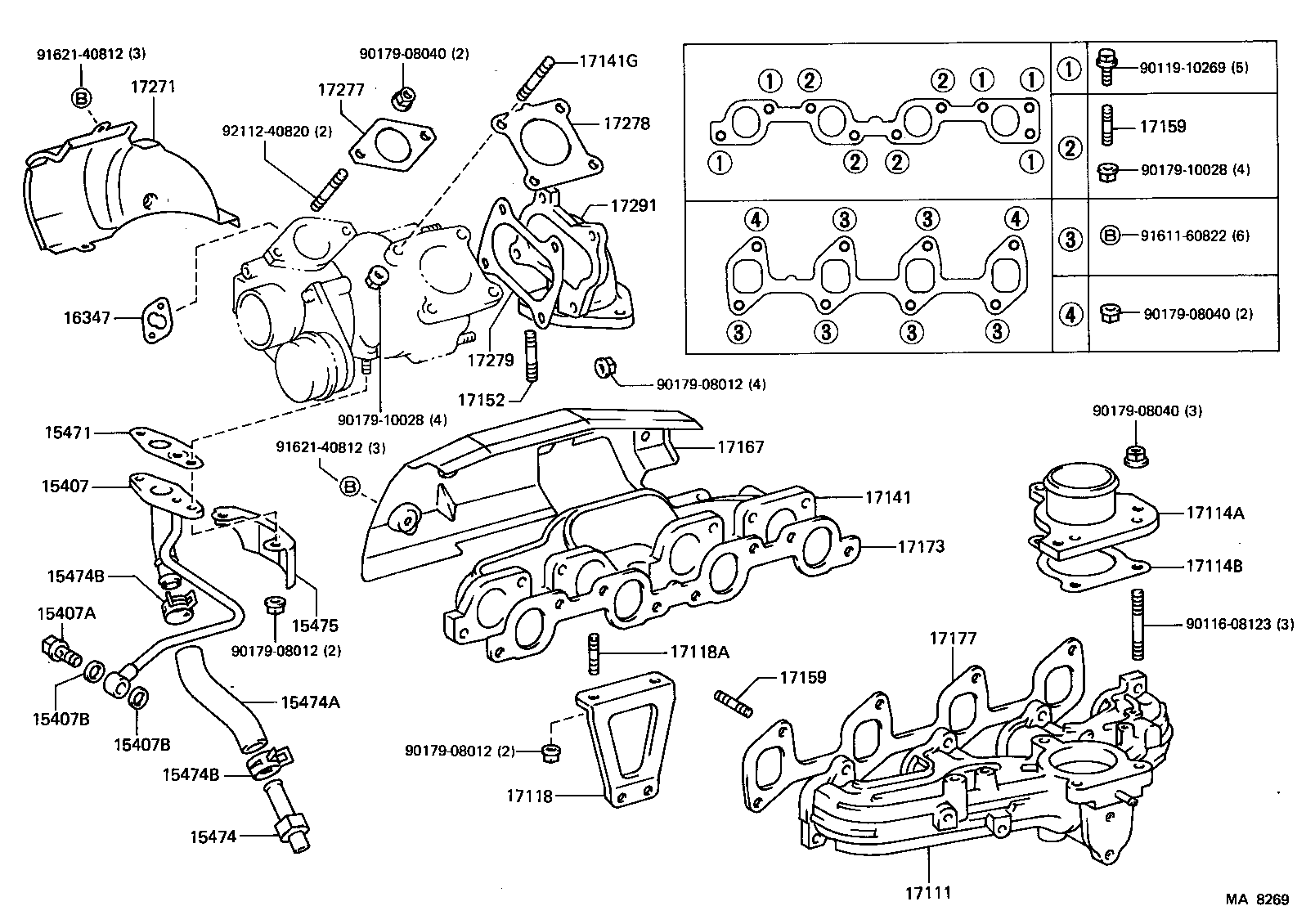

ILLUST NO. 1 OF 2(8508- )2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-54020 |
2LT..LH51 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2LT..LH51 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT..LH51 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT..LH51 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
2LT..LH51 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15476-54010 |
2LT..LH51 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-54010 |
2LT..LH51 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT..LH51 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT..LH51 |
2 | ||
| 15475 - DEFLECTOR, OIL | ||||
| 15475-54010 |
2LT..LH51 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
2LT..LH51 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54030 |
L,2L..LH5#,6#,7# |
1 | ||
| 17101-54070 |
2LT..LH51 |
1 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54040 |
2LT..LH51 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 26171-54010 |
2LT..LH51 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-54020 |
2LT..LH51 |
1 | ||
| 17118A - BOLT, STUD(FOR MANIFOLD STAY) | ||||
| 90116-08056 |
2LT..LH51 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54060 |
2LT..LH51 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10094 |
2LT..LH51 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10061 |
2LT..LH51 EXHAUST MANIFOLD SIDE |
4 | ||
| 90116-10141 |
2L..LH5#,6#,71 EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-08053 |
L,2L..LH5#,6#,7# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10140 |
2LT..LH51 EXHAUST MANIFOLD SIDE |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10061 |
2LT..LH51 EXHAUST MANIFOLD SIDE |
4 | ||
| 90116-10141 |
2L..LH5#,6#,71 EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-08053 |
L,2L..LH5#,6#,7# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10140 |
2LT..LH51 EXHAUST MANIFOLD SIDE |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54050 |
2LT..LH51 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54011 |
L,2L..LH5#,6#,7# |
1 | ||
| 17173-54020 |
2LT..LH51 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54011 |
L,2L..LH5#,6#,7# |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-54030 |
2LT..LH51 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-54010 |
2LT..LH51 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-54010 |
2LT..LH51 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-64010 |
2LT..LH51 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-54030 |
2LT..LH51 |
1 | ||
| Common parts | ||||
| 90116-08123 | ||||
| 90119-10269 | ||||
| 90179-08012 | ||||
| 90179-08040 | ||||
| 90179-10028 | ||||
| 91611-60822 | ||||
| 91621-40812 | ||||
| 92112-40820 | ||||
