LH51G-PESX (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CTM,SCL,SCM

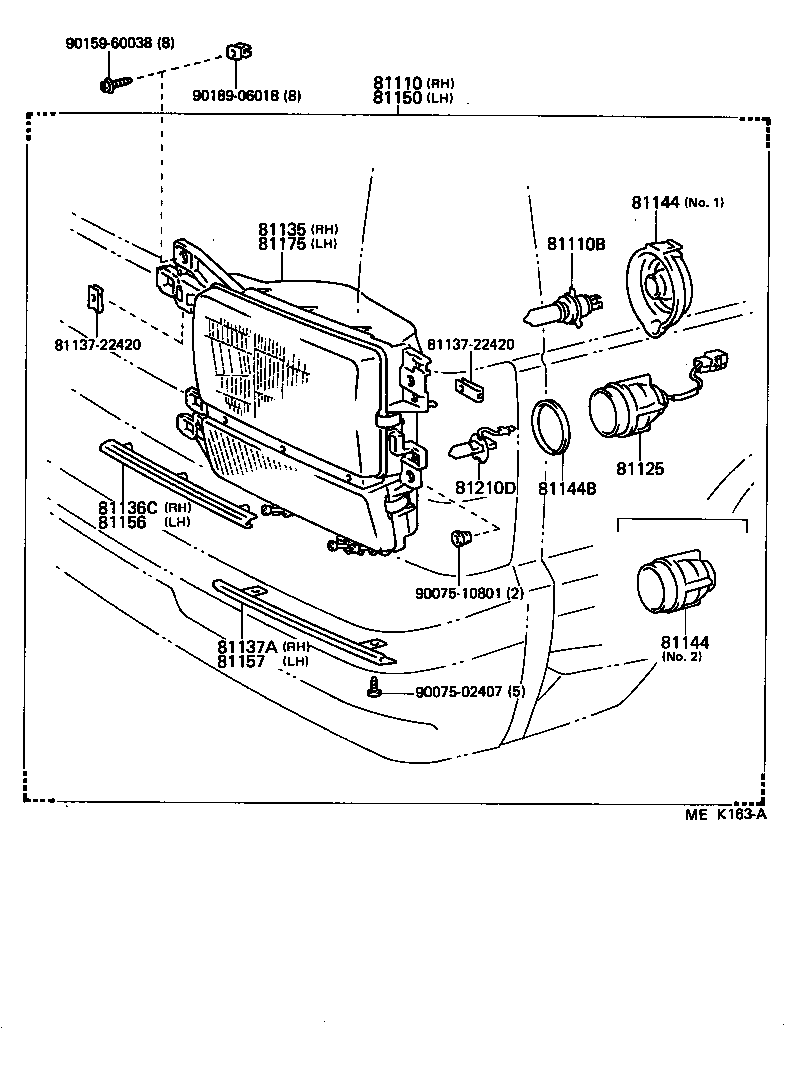

Click highlighted areas on diagram

diagram 81110 81110B 81125 81135 81136C 8113722420 8113722420 81137A 81144 81144 81144B 81150 81156 81157 81175 81210D 9007502407 9007510801 9015960038 9018906018
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-95J29

LH51,YH51,57..07S,08S

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LH66..GL..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCL,SCM

12V 60/55W,*HAL *WH

 2
81125 - CORD, HEADLAMP
81125-95J29

LH51,YH51,57..07S,08S

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-95J29

LH51,YH51,57..07S,08S

 1
81136C - RIM, HEADLAMP, RH
81136-95J29

LH51,YH51,57..07S,08S

 1
81137A - RIM, HEADLAMP, RH
81137-95J29

LH51,YH51,57..07S,08S

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

LH51,YH51,57..CTM,SCL,SCM

NO.1

 2
81144 - COVER, HEADLAMP, NO.1
81139-20730

LH51,YH51,57..CTM,SCL,SCM

NO.1

 2
81144B - GASKET, HEADLAMP
81144-95J29

LH51,YH51,57..CTM,SCL,SCM

 2
81150 - HEADLAMP ASSY, LH
81150-95J29

LH51,YH51,57..07S,08S

 1
81156 - RIM, HEADLAMP, LH
81156-95J29

LH51,YH51,57..07S,08S

 1
81157 - RIM, HEADLAMP, LH
81157-95J29

LH51,YH51,57..07S,08S

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-95J29

LH51,YH51,57..07S,08S

 1
81210D - BULB, FOG LAMP
90981-13018

LH51,YH51,57..07S,08S

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
81137-22420
90075-02407
90075-10801
90159-60038
90189-06018
