LH51G-PESX (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

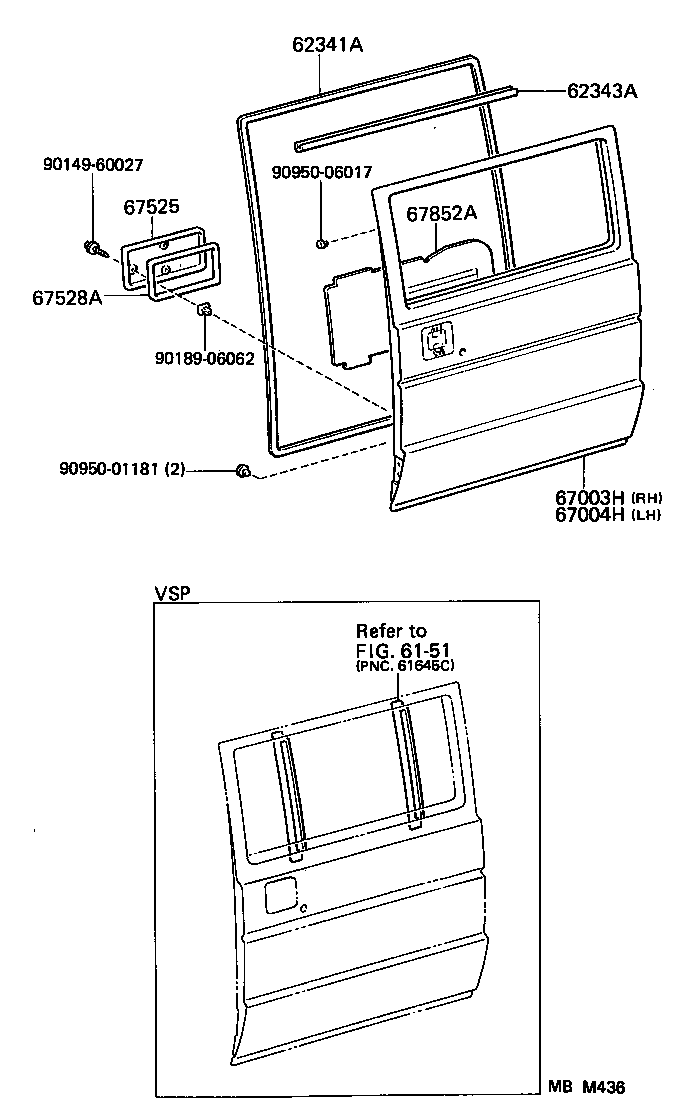

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 6151 62341A 62343A 67003H 67004H 67525 67528A 67852A 9014960027 9018906062 9095001181 9095006017
Part # Description Qty Price
62341A - WEATHERSTRIP, SLIDE DOOR, NO.1
67871-95J0106

LH51,71,YH51,57..(COM,WG)..(GL,SCL,SCM)

BROWN,TRIM4#

 1
67871-95J0104

LH51,66,YH51,57..(CTM,SCM,SGL)..(08S,09S);LH5#,6#,YH50,61..V4D..(GL,SGL)..(05S,09S)

BLUE,TRIM8#

 1
62343A - WEATHERSTRIP, SLIDE DOOR, NO.2
62343-95J00

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 1
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-95J33

LH51,YH51,57..07S,08S

 1
67004-95J40

LH51,YH51,57..07S,08S

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J01

LH71..GL;LH51,6#,YH51,57..CTM,SCL,SCM,SGL

 2
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 2
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J01

LH51,YH51,57..07S,08S

 1
Common parts
90149-60027
90189-06062
90950-01181
90950-06017
Linked diagrams
6151

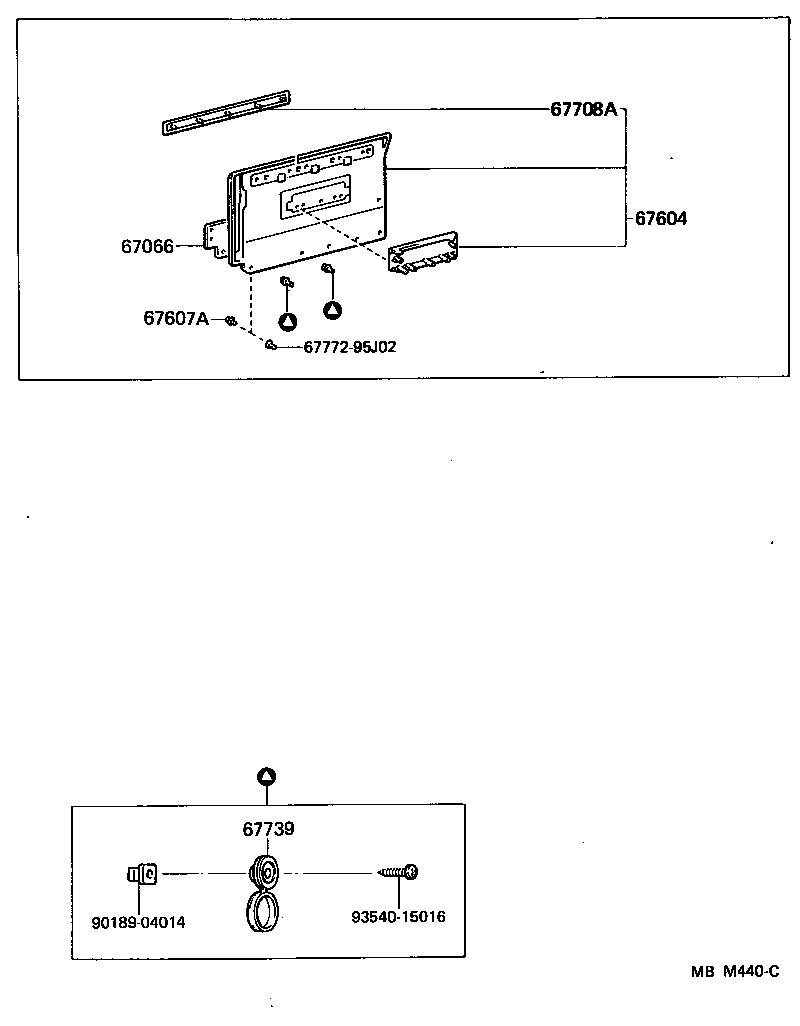

ILLUST NO. 3 OF 3(8708- )LH51,YH51,57..07S,08S

Click highlighted areas on diagram

diagram 67066 67604 67607A 67708A 67739 6777295J02 9018904014 9354015016
Part # Description Qty Price
67066 - CARPET SUB-ASSY, REAR DOOR TRIM
67066-95J0114

LH51,YH51,57..08S

BLUE,TRIM8#

 1
67066-95J0126

LH51,YH51,57..08S

BROWN,TRIM4#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J0906

LH51..08S..TD

ﾘﾋﾞﾝｸﾞ ｻﾙ-ﾝ EX,BROWN,BROWN,TRIM4#

 1
67640-95J0804

LH51,YH51,57..08S

BLUE,TRIM8#

 1
67640-95J0816

LH51,YH51,57..08S

BROWN,TRIM4#

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-0901014

LH51,YH51,57..08S

BLUE,TRIM8#

 19
90467-0901036

LH51,YH51,57..07S,08S

BROWN,TRIM4#

 19
90467-0901016

LH51,YH51,57..07S,08S

DARK BROWN,TRIM4#

 19
67708A - ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH
67708-95J0404

LH51,YH51,57..08S

BLUE,TRIM8#

 1
67708-95J0406

LH51,YH51,57..07S,08S

BROWN,TRIM4#

 1
67739 - COVER, REAR DOOR TRIM
67739-95J0014

LH51,YH51,57..08S

BLUE,TRIM8#

 2
67739-95J0026

LH51,YH51,57..07S,08S

BROWN,TRIM4#

 2
Common parts
67772-95J02
90189-04014
93540-15016
