LH51G-PE (1984)

Toyota Hiace Van,Wagon

Production Jan 1984 - Aug 1985
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)SRF..08S ; (8212- )CTD,CTM,DLX,GL,STD

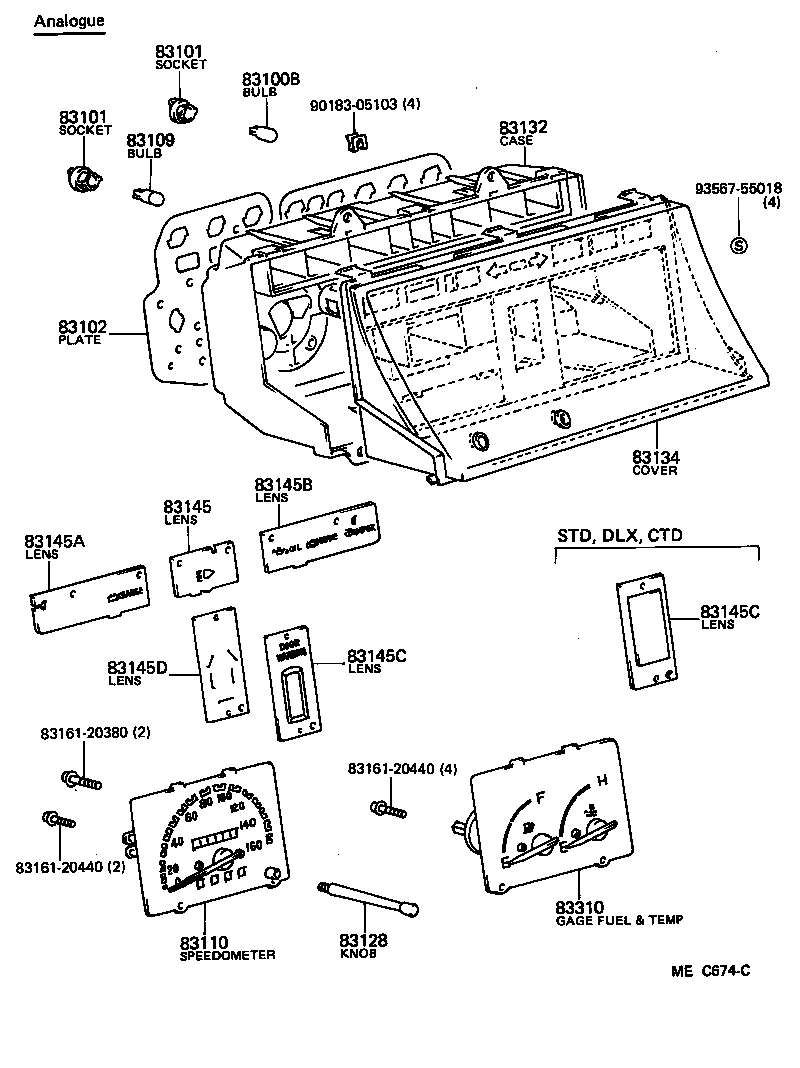

Click highlighted areas on diagram

diagram 83100B 83101 83101 83102 83109 83110 83128 83132 83134 83145 83145A 83145B 83145C 83145C 83145D 8316120380 8316120440 8316120440 83310 9018305103 9356755018
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

LH5#,6#,7#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 23
99132-12034

LH50,51,YH51..SRF..08S

12V 3.4W,12V 3.4W

 16
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

LH5#,6#,7#

BULB:12V 1.4W

 23
83101-20040

LH50,51,YH51..SRF..08S

BULB:12V 3.4W

 15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

LH5#,6#,7#

BULB:12V 1.4W

 23
83101-20040

LH50,51,YH51..SRF..08S

BULB:12V 3.4W

 15
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95J03

LH5#..SRF..08S

 1
83110 - SPEEDOMETER ASSY
83110-95J01

LH5#..SRF..08S

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

LH50,51,YH51..SRF..08S

 1
83132 - CASE, COMBINATION METER
83132-95J00

LH5#,YH51..SRF..08S

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95J01

LH5#..SRF..08S

 1
83145 - LENS, METER, NO.1
83145-95J01

LH5#,YH51..SRF..08S

TURN & BEAM

 1
83145A - LENS, METER, NO.2
83145-95J00

LH5#..SRF..08S

 1
83145B - LENS, METER, NO.3
83145-95J03

LH5#,YH51..SRF..08S

 1
83145C - LENS, METER, NO.4
83145-95J15

LH5#,YH51..SRF..08S

DOOR WARNING

 1
83145C - LENS, METER, NO.4
83145-95J15

LH5#,YH51..SRF..08S

DOOR WARNING

 1
83145D - LENS, METER, NO.5
83145-95J04

LH5#,YH51..SRF..08S

DOOR WARNING

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95J08

LH5#..SRF..08S

 1
Common parts
83161-20380
83161-20440
90183-05103
93567-55018
