LH51G-MESX (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )WG

Click highlighted areas on diagram

diagram 04443 44605 44608 44609D 44610 44624J 44628A 44632C 44633 44637A 44645 44651B 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26380

LH51..09S..TD;LH51,61,71..WG..(4FC,5F,5H)

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

LH51,61,71,YH51,61..WG

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

LH51,61,71,YH51,61..WG

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-17090

LH51,61,71..WG

 1
44610 - BOOSTER ASSY, BRAKE
44610-26370

LH51,61,71..WG

 1
44624J - PLATE, BOOSTER CENTER
44624-20810

LH51,61,71..WG

 1
44628A - BODY, BOOSTER CENTER
44628-20810

LH51,61,71..WG

 1
44632C - PLATE, REACTION
44632-22620

LH51,61,71,YH51,61..WG

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

LH51,61,71,YH51,61..WG

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-20810

LH51,61,71..WG

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

LH51,61,71,YH51,61..WG

 1
44651B - NUT, BOOSTER
44651-20810

LH51,61,71,YH51,61..WG

 1
44673A - BODY, BOOSTER VALVE
44673-20810

LH51,61,71,YH51,61..WG

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(8708- )YH50,51,52,6#,71

Click highlighted areas on diagram

diagram 44729 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44758 44761 44761B 44761B 44764G 44771 44772 44773F 44774 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-26020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH50,51,52,6#,71

 1
44730-60040

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09109

LH51..5F..TD

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09109

LH51..TD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26020

YH50,51,52,6#,71

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26120

LH51..TD

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44772-26040

YH50,51,52,6#,71

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-26050

YH50,51,52,6#,71

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26090

LH51..TD

 1
Common parts
91611-60814

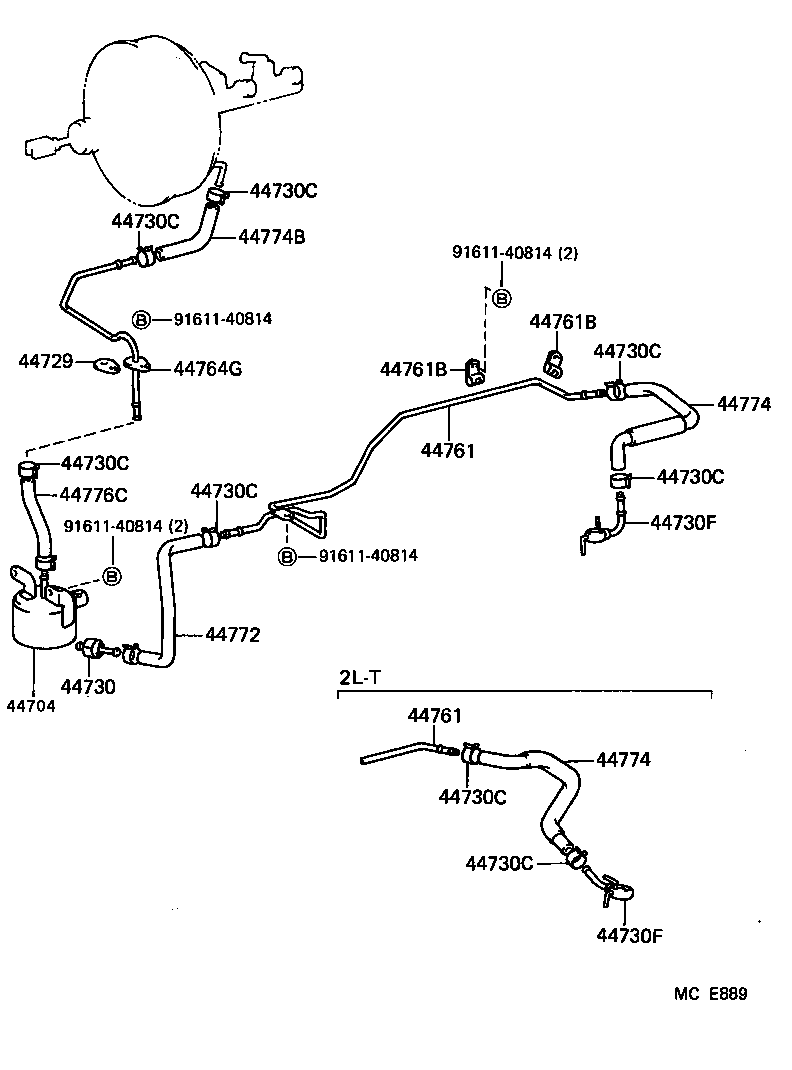

ILLUST NO. 2 OF 2(8708- )LH51,61,71

Click highlighted areas on diagram

diagram 44704 44729 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44761 44761 44761B 44761B 44764G 44772 44774 44774 44774B 44776C 9161140814 9161140814 9161140814 9161140814
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH50,51,52,6#,71

 1
44730-60040

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09109

LH51..5F..TD

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09109

LH51..TD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09109

LH51..5F..TD

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09109

LH51..TD

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26120

LH51..TD

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26120

LH51..TD

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH50,51,52,6#,71

 2
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
44772-26040

YH50,51,52,6#,71

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26090

LH51..TD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26090

LH51..TD

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-26120

LH56,66..05S;LH51,61,71..WG;LH66..(DX,SGL)..08S

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
Common parts
91611-40814
