LH51G-MES (1987)
Toyota Hiace Van,Wagon

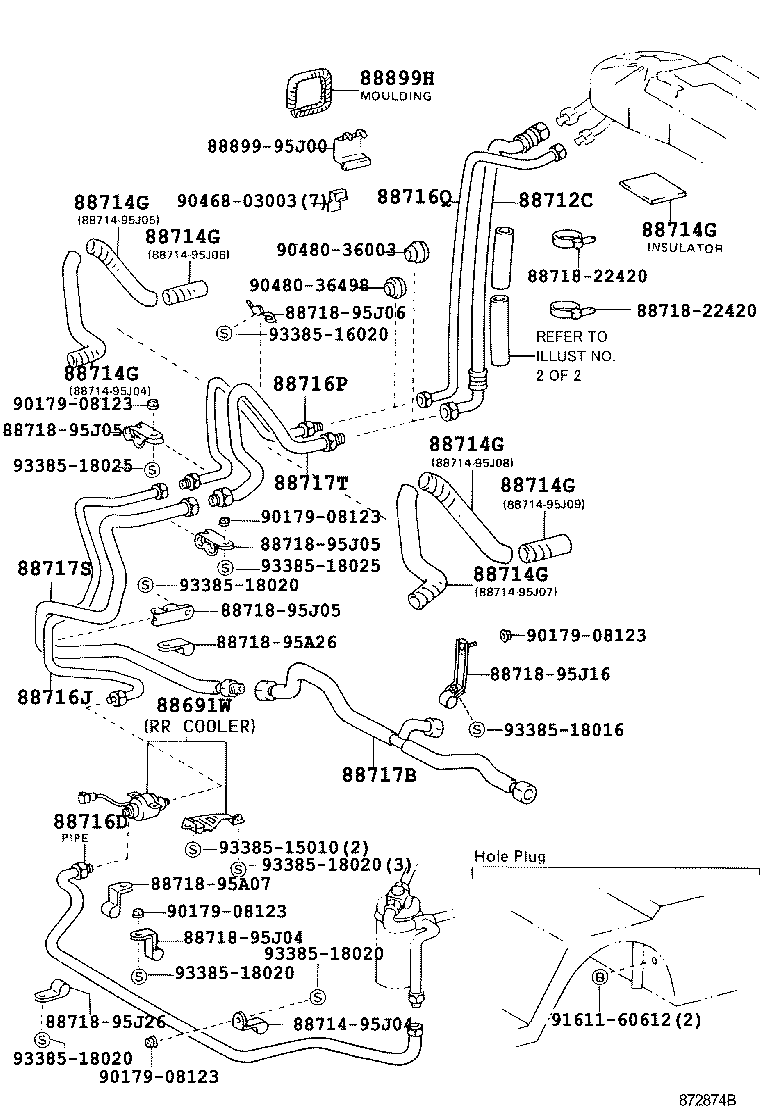

ILLUST NO. 1 OF 2(8708- )LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691W - VALVE, MAGNET | ||||
| 88691-95J06 |
YH51..08S;LH51..5F..08S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ & ｱｲｽﾒ-ｶﾂｷ ﾚｲｵﾝｿﾞｳｺ) |
1 | ||
| 88690-95J28 |
LH51,YH51..MRF..08S FR COOLER |
1 | ||
| 88690-95J29 |
LH51,YH51..MRF..08S RR COOLER |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-95J02 |
LH51,YH51..MRF..08S |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95J65 |
LH51..MRF..08S |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-95J59 |
LH51,YH51..MRF..08S |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-95J06 |
LH51,YH51..MRF..08S |
1 | ||
| 88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q | ||||
| 88716-95J07 |
LH51,YH51..MRF..08S |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J05 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88717-95J37 |
LH51..MRF..DSL ｱﾘ(ｶ-ﾃﾝ & ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88717S - PIPE, COOLER REFRIGERANT SUCTION, S | ||||
| 88717-95J02 |
LH51,YH51..MRF..08S |
1 | ||
| 88717T - PIPE, COOLER REFRIGERANT SUCTION, T | ||||
| 88717-95J01 |
LH51,YH51..MRF..08S |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-95J08 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| Common parts | ||||
| 88714-95J04 | ||||
| 88718-22420 | ||||
| 88718-95A07 | ||||
| 88718-95A26 | ||||
| 88718-95J04 | ||||
| 88718-95J05 | ||||
| 88718-95J06 | ||||
| 88718-95J16 | ||||
| 88718-95J26 | ||||
| 88899-95J00 | ||||
| 90179-08123 | ||||
| 90468-03003 | ||||
| 90480-36003 | ||||
| 90480-36498 | ||||
| 91611-60612 | ||||
| 93385-15010 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||

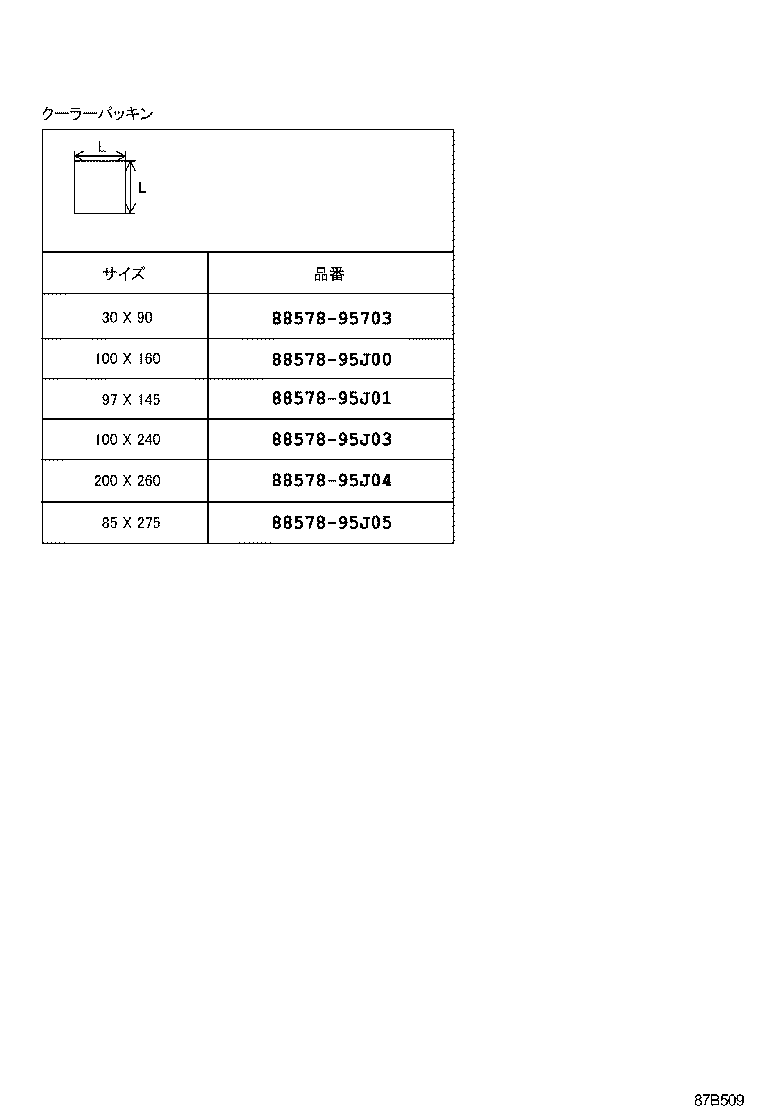

ILLUST NO. 2 OF 2(8708- )LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S
ｸｰﾗｰﾊﾟｯｷﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88578-95703 | ||||
| 88578-95J00 | ||||
| 88578-95J01 | ||||
| 88578-95J03 | ||||
| 88578-95J04 | ||||
| 88578-95J05 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J04 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J04 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH51..MRF..5F |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J12 |
LH51..MRF..DSL |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10040 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10040 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88890-95J00 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||

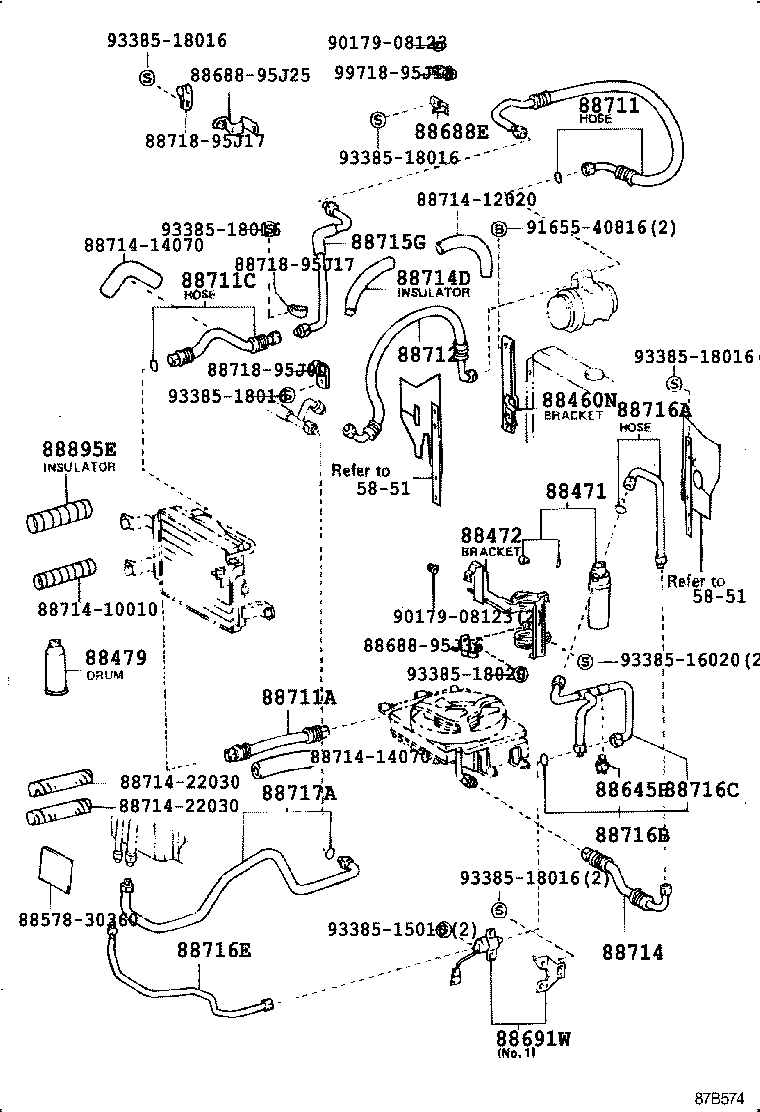

(8708- )LH51,61,71..MTM..08S,09S,10S,15S..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460N - BRACKET, COOLER CONDENSER, NO.8 | ||||
| 88688-95J04 |
LH51..MRF..08S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH51,YH51..MRF..08S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J00 |
LH51,YH51..MRF..08S NO.1 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95J26 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-95J06 |
YH51..08S;LH51..5F..08S ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ & ｱｲｽﾒ-ｶﾂｷ ﾚｲｵﾝｿﾞｳｺ) |
1 | ||
| 88690-95J28 |
LH51,YH51..MRF..08S FR COOLER |
1 | ||
| 88690-95J29 |
LH51,YH51..MRF..08S RR COOLER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J09 |
LH51..MRF..DSL |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95J11 |
LH51..MRF..DSL |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-95J24 |
LH51,YH51..MRF..08S..(CBR,DSL) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88704-95J04 |
LH51..MRF..08S |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95J06 |
LH51..MRF..DSL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J51 |
LH51,YH51..MRF..08S |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95J68 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J57 |
LH51,YH51..MRF..08S |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J37 |
YH51..CTM,SCL;YH51..SRF..08S;LH51..(CTM,SCM)..DSL ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88578-30360 | ||||
| 88688-95J25 | ||||
| 88688-95J36 | ||||
| 88714-10010 | ||||
| 88714-12020 | ||||
| 88714-14070 | ||||
| 88714-22030 | ||||
| 88718-95J00 | ||||
| 88718-95J17 | ||||
| 90179-08123 | ||||
| 91655-40816 | ||||
| 93385-15010 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 99718-95J18 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J12 |
LH51..MRF..DSL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH51,YH51..MRF..08S |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 90179-08123 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH51..MRF..5F |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88578-95J08 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J14 |
LH51,YH51..MRF..08S..(CBR,DSL) FR CROSS MEMBER |
1 | ||
| 88460-95J06 |
LH51..MRF..DSL FR UNDER FLOOR |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH51..MRF..5F;YH51..MRF..08S |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95J00 |
LH51..MRF..5F |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-95J12 |
LH51..MRF..DSL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J20 |
LH51..MRF..DSL |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-95J14 |
LH51,YH51,57..08S |
1 | ||
| 88716K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88716-95J71 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| 88716L - PIPE, COOLER REFRIGERANT LIQUID, L | ||||
| 88716-95J72 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| 88716M - PIPE, COOLER REFRIGERANT LIQUID, M | ||||
| 88716-95J73 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| 88717L - PIPE, COOLER REFRIGERANT SUCTION, L | ||||
| 88717-95J34 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| 88717M - PIPE, COOLER REFRIGERANT SUCTION, M | ||||
| 88717-95J33 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J10 |
YH51,57..08S;LH51..5F..08S |
1 | ||
| Common parts | ||||
| 88592-87002 | ||||
| 88690-95J32 | ||||
| 88714-10050 | ||||
| 88714-89101 | ||||
| 88718-95J05 | ||||
| 88718-95J36 | ||||
| 88718-95J37 | ||||
| 88718-95J39 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 88899-95A13 | ||||
| 88899-95J05 | ||||
| 90044-64009 | ||||
| 90099-00145 | ||||
| 90179-08123 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-18020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
