LH51G-MES (1987)
Toyota Hiace Van,Wagon
(8708- )

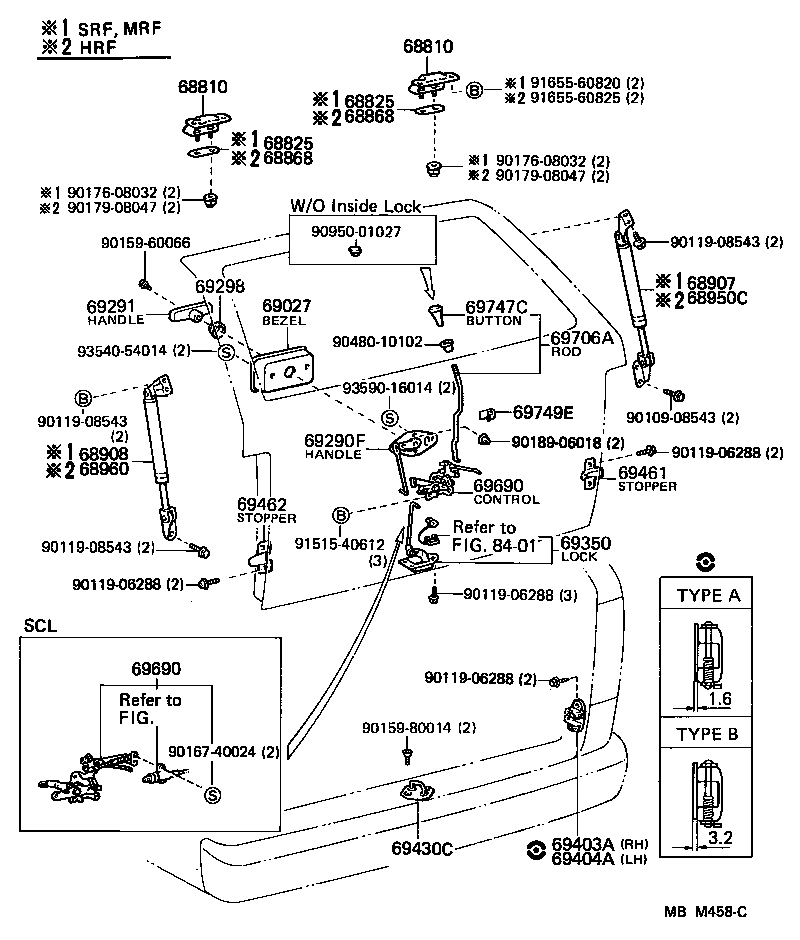

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68810-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 右側 |
1 | ||
| 68820-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 左側 |
1 | ||
| 68810-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 右側 |
1 | ||
| 68820-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 左側 |
1 | ||
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68810-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 右側 |
1 | ||
| 68820-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 左側 |
1 | ||
| 68810-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 右側 |
1 | ||
| 68820-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF 左側 |
1 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
2 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| 68907-95J07 |
LH61..VSG..03S;LH56,YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68907-95J07 |
LH51..VSG;LH61..VSG..03S;LH56,66..V5D..DX;YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH56,66..(GL,SGL)..05S;LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68907-95J01 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCL,SCM,SGL |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| 68908-95J01 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCL,SCM,SGL |
1 | ||
| 68908-95J07 |
LH51..VSG;LH61..VSG..03S;LH56,66..V5D..DX;YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH56,66..(GL,SGL)..05S;LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68908-95J07 |
LH61..VSG..03S;LH56,YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
1 | ||
| 69403-95J04 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ B |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69404-95J04 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ B |
1 | ||
| 69404-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69450-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 69462-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-95J00 |
LH51,61,71,YH51,57,61..WG..(08S,09S,10S) |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-95J00 |
LH51,61,71,YH51,57,61..WG..(08S,09S,10S) |
1 | ||
| Common parts | ||||
| 90109-08543 | ||||
| 90119-06288 | ||||
| 90119-08543 | ||||
| 90159-60066 | ||||
| 90159-80014 | ||||
| 90167-40024 | ||||
| 90176-08032 | ||||
| 90179-08047 | ||||
| 90189-06018 | ||||
| 90480-10102 | ||||
| 90950-01027 | ||||
| 91515-40612 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 93540-54014 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
