LH51G-MES (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MRF

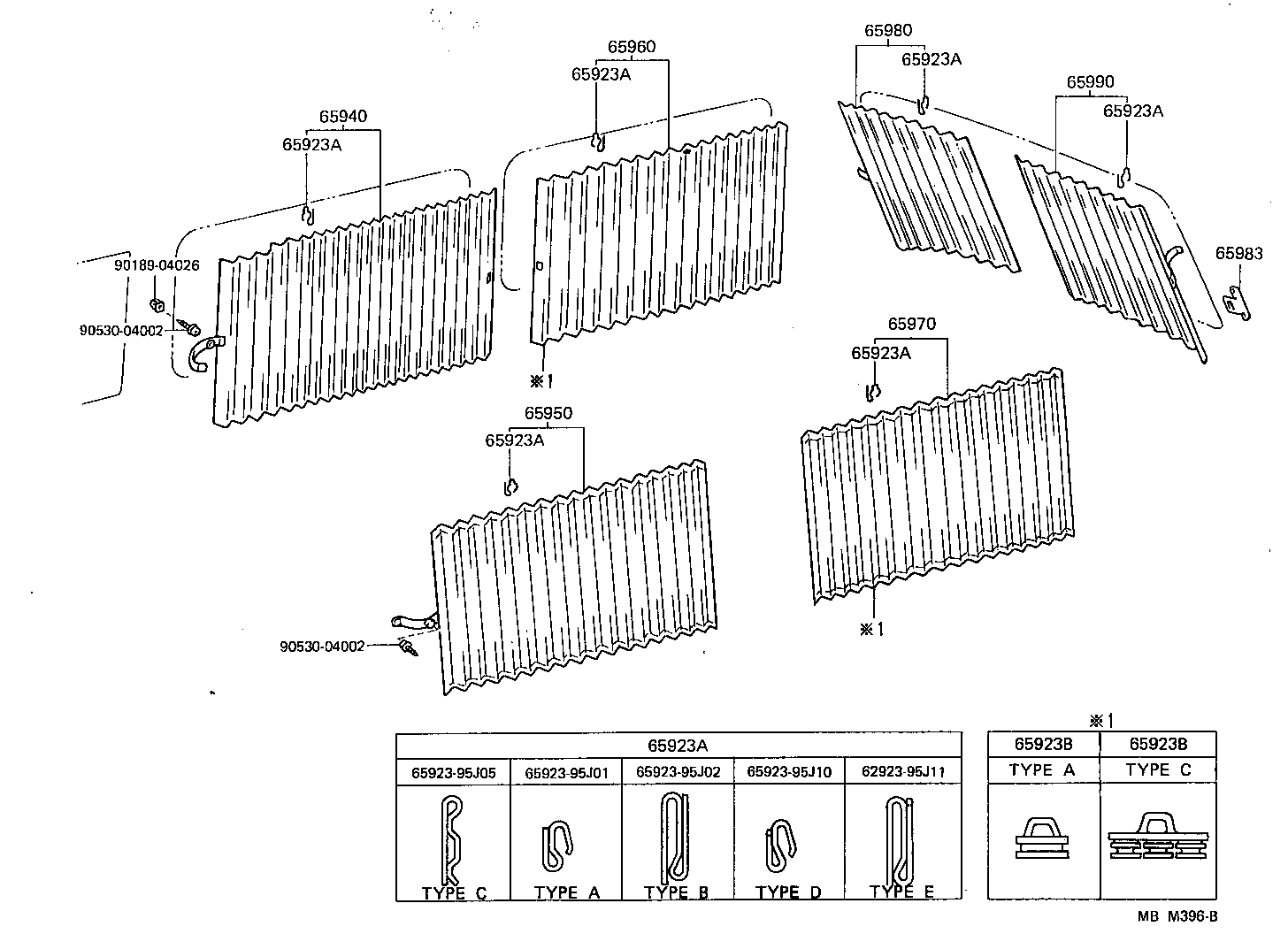

Click highlighted areas on diagram

diagram 6292395J11 6592395J01 6592395J02 6592395J05 6592395J10 65923A 65923A 65923A 65923A 65923A 65923A 65923A 65923B 65923B 65940 65950 65960 65970 65980 65983 65990 9018904026 9053004002 9053004002
Part # Description Qty Price
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923A - HOOK, CURTAIN, NO.1
65923-95J02

LH51,YH51..MRF..08S

ﾀｲﾌﾟ B

 41
65923-95J10

LH51,YH51..MRF..08S

ﾀｲﾌﾟ D

 6
65923-95J11

LH51,YH51..MRF..08S

ﾀｲﾌﾟ E

 5
65923-95J13

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ)

 12
65923-95J01

LH51,YH51..MRF..08S

ﾀｲﾌﾟ A

 98
65923-95J05

LH51,YH51..MRF..08S

ﾀｲﾌﾟ C

 2
65923B - HOOK, CURTAIN, NO.2
65923-95J14

LH51..MRF..08S

TYPE A

 24
65909-95J0008

LH51,YH51..MRF..08S

TYPE B,IVORY,IVORY,TRIM4#,8#

 9
65923B - HOOK, CURTAIN, NO.2
65923-95J14

LH51..MRF..08S

TYPE A

 24
65909-95J0008

LH51,YH51..MRF..08S

TYPE B,IVORY,IVORY,TRIM4#,8#

 9
65940 - CURTAIN ASSY, SIDE, FRONT RH
65940-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65940-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
65950 - CURTAIN ASSY, SIDE, FRONT LH
65950-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
65950-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65960 - CURTAIN ASSY, SIDE, REAR RH
65960-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65960-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
65970 - CURTAIN ASSY, SIDE, REAR LH
65970-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65970-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
65980 - CURTAIN ASSY, BACK DOOR, RH
65980-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
65980-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65983 - HANGER, BACK WINDOW CURTAIN
65983-95J00

LH51,YH51..MRF..08S

 2
65990 - CURTAIN ASSY, BACK DOOR, LH
65990-95J0704

LH51,YH51..MRF..08S

BLUE,TRIM8#

 1
65990-95J0706

LH51,YH51..MRF..08S

BROWN,TRIM4#

 1
Common parts
62923-95J11
65923-95J01
65923-95J02
65923-95J05
65923-95J10
90189-04026
90530-04002
