LH51G-MES (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L#..LH51,61,71

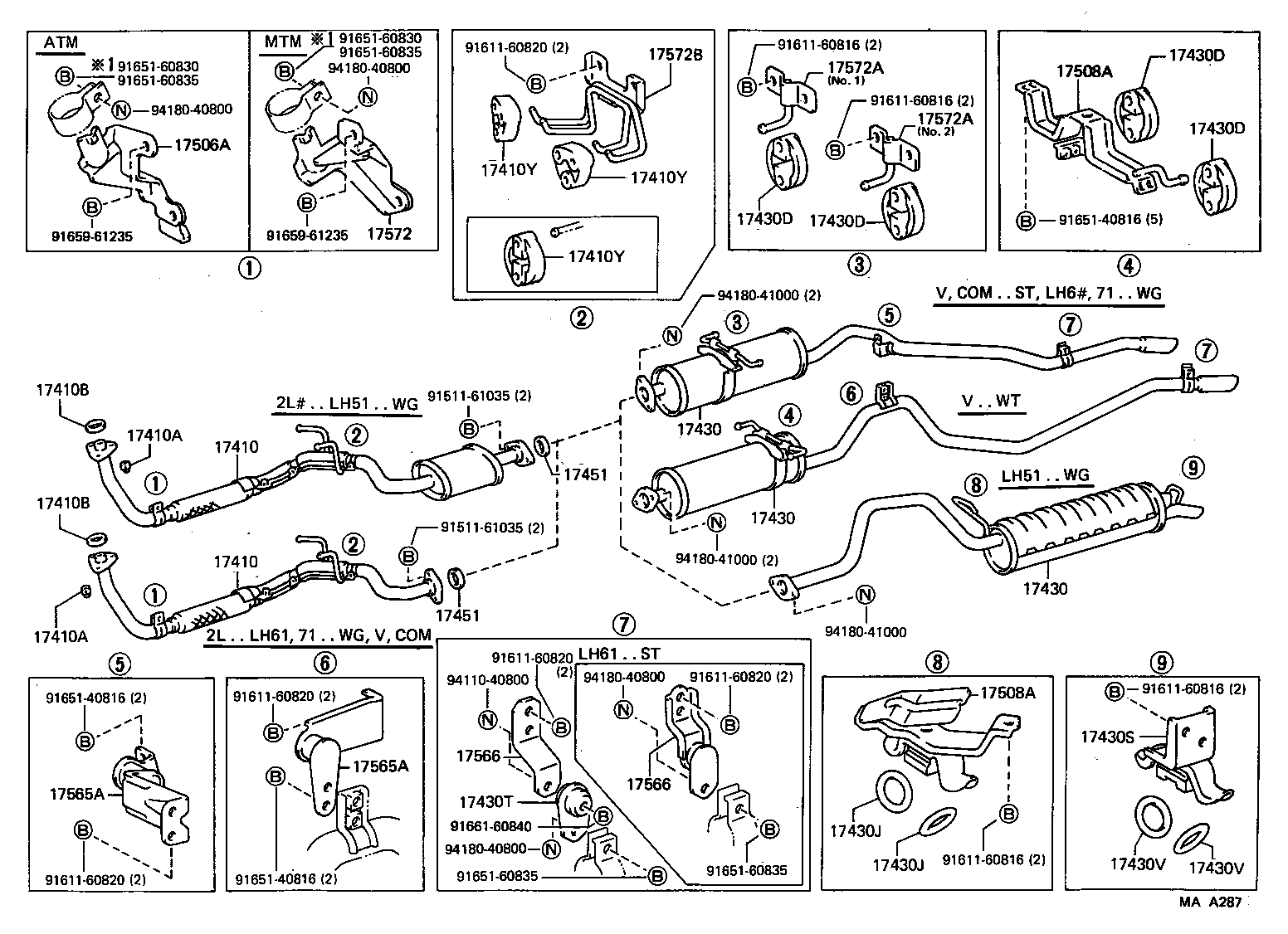

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410Y 17410Y 17410Y 17430 17430 17430 17430D 17430D 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17430V 17451 17451 17506A 17508A 17508A 17565A 17565A 17566 17566 17572 17572A 17572A 17572B 9151161035 9151161035 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9165140816 9165160830 9165160830 9165160835 9165160835 9165160835 9165160835 9165961235 9165961235 9166160840 9411840800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54223

2L..LH51..WG..MTM

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54223

2L..LH51..WG..MTM

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#,2Y,3Y#..LH5#,61,71,YH5#,6#,71

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#,2Y,3Y#..LH5#,61,71,YH5#,6#,71

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17566-26030

2L..LH51..WG

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17566-26030

2L..LH51..WG

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17566-26030

2L..LH51..WG

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54302

2L..LH51..WG..MTM

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54302

2L..LH51..WG..MTM

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54302

2L..LH51..WG..MTM

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2L#,3YU..LH51,YH51,57..WG

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2L#,3YU..LH51,YH51,57..WG

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-71010

2L#,3YU..LH51,YH51,57..WG

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L#,3YU..LH51,YH51,57..WG

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L#,3YU..LH51,YH51,57..WG

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L,2Y,3Y..LH5#,61,71,YH50,51,61,71

 1
90917-06004

2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L,2Y,3Y..LH5#,61,71,YH50,51,61,71

 1
90917-06004

2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-71010

2L#,3YU..LH51,YH51,57..WG

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-71010

2L#,3YU..LH51,YH51,57..WG

 1
17566 - BRACKET, TAIL PIPE, REAR
17566-71041

3YU..YH61;2L,2Y,3Y,3YJ..LH61,YH50,51,52,6#,71..ST

 1
17566 - BRACKET, TAIL PIPE, REAR
17566-71041

3YU..YH61;2L,2Y,3Y,3YJ..LH61,YH50,51,52,6#,71..ST

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54141

2L..LH66..05S;2L..LH5#,61,71..MTM;2L..LH66..(DX,SGL)..08S

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54170

2L..LH51..WG

 1
Common parts
91511-61035
91611-60816
91611-60820
91651-40816
91651-60830
91651-60835
91659-61235
91661-60840
94118-40800
94180-40800
94180-41000
