LH51G-ME (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L..LH51,61,71..WG..MTM

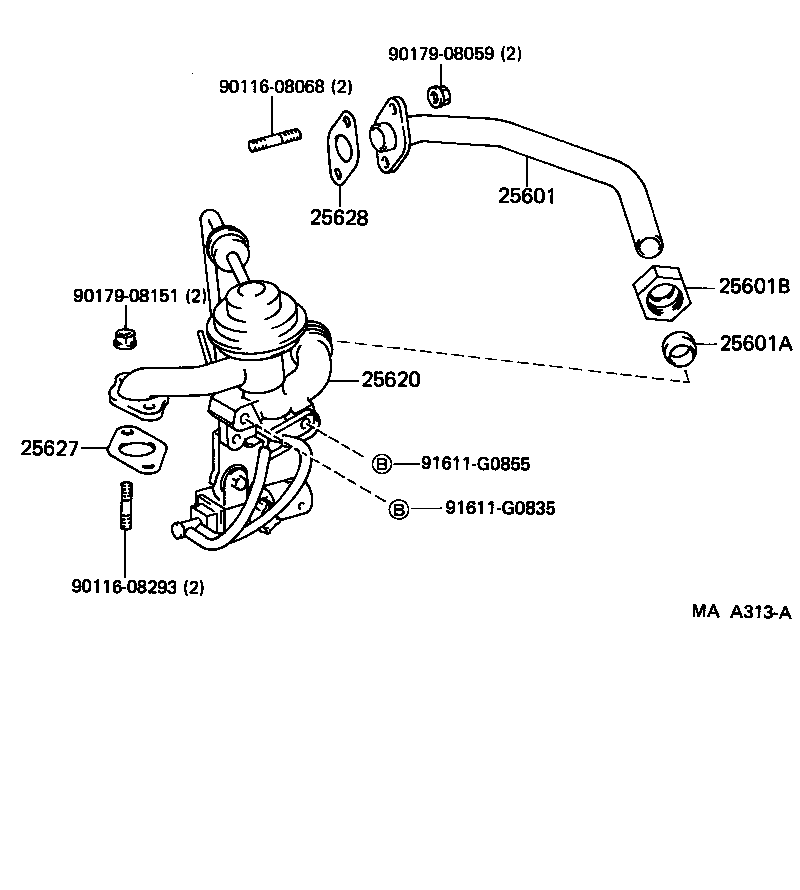

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25627 25628 9011608068 9011608293 9017908059 9017908151 91611G0835 91611G0855
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-54010

2L..LH51,61,71..WG..MTM

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25001

2L#..LH51,61,71..WG

 1
90410-25001

2L..LH61,71..10S;2L#..LH51..WG..MTM

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33001

2L..LH61,71..10S;2L#..LH51..WG..MTM

 1
90402-33001

2L#..LH51,61,71..WG

 1
25620 - VALVE ASSY, EGR
25800-54030

2L..LH51,61,71..WG..MTM

 1
25627 - GASKET, EGR VALVE
25627-54010

2L..LH61,71..10S;2L#..LH51..WG..MTM

 1
25627-54010

2L#..LH51,61,71..WG

 1
25628 - GASKET, EGR INLET
25628-54012

2L#..LH51,61,71..WG

 1
25628-54011

2L..LH61,71..10S;2L#..LH51..WG..MTM

 1
Common parts
90116-08068
90116-08293
90179-08059
90179-08151
91611-G0835
91611-G0855
