LH50V-QNFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

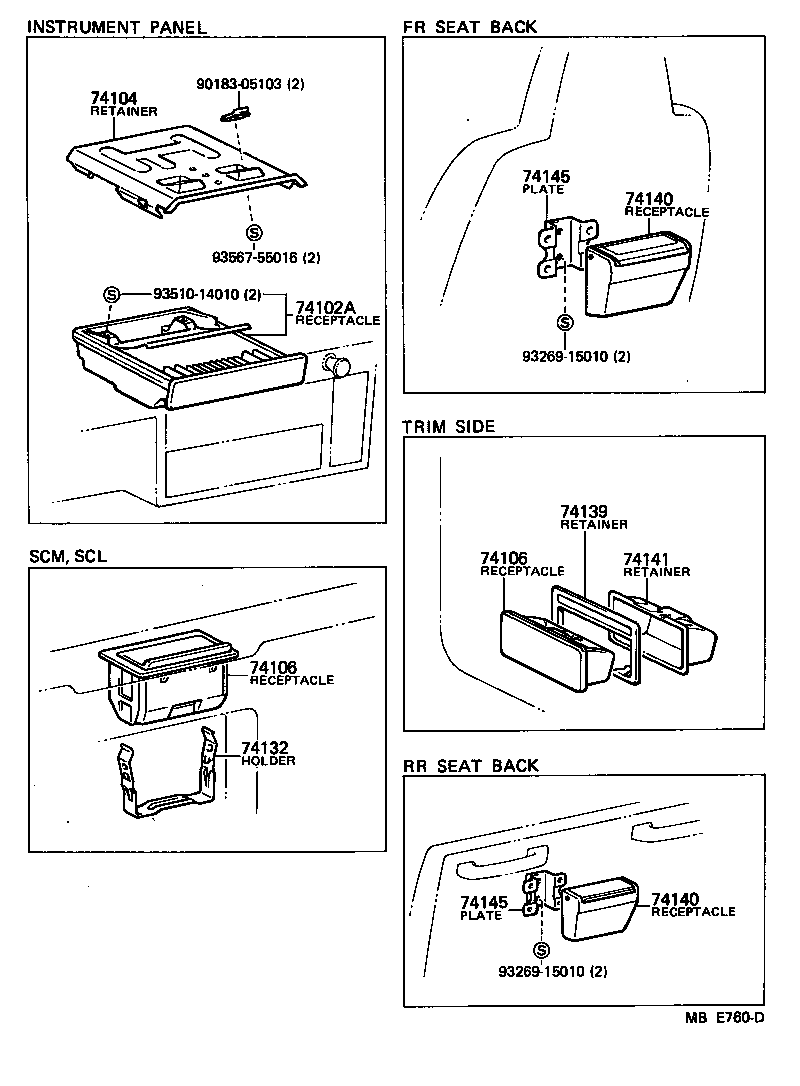

Click highlighted areas on diagram

diagram 74102A 74104 74106 74106 74132 74139 74140 74140 74141 74145 74145 9018305103 9326915010 9326915010 9351014010 9356755016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-95J00

LH5#,6#,7#,YH5#,6#,71

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-95J01

LH5#,6#,7#,YH50,51,61..CTM,GL,SCL,SCM

 1
74140 - RECEPTACLE ASSY, ASH(FOR SEAT)
74130-95J0001

LH50,6#,YH50,61..V5D..GL

BLACK,BLACK

 1
74130-95J0006

LH5#,6#,YH50,61..V5D..06S

BROWN,BROWN

 1
74140 - RECEPTACLE ASSY, ASH(FOR SEAT)
74130-95J0001

LH50,6#,YH50,61..V5D..GL

BLACK,BLACK

 1
74130-95J0006

LH5#,6#,YH50,61..V5D..06S

BROWN,BROWN

 1
74145 - PLATE, REAR ASH RECEPTACLE
74145-90B00

LH50,51,60,61,YH50,61..V5D..06S

 1
74145 - PLATE, REAR ASH RECEPTACLE
74145-90B00

LH50,51,60,61,YH50,61..V5D..06S

 1
Common parts
90183-05103
93269-15010
93510-14010
93567-55016
