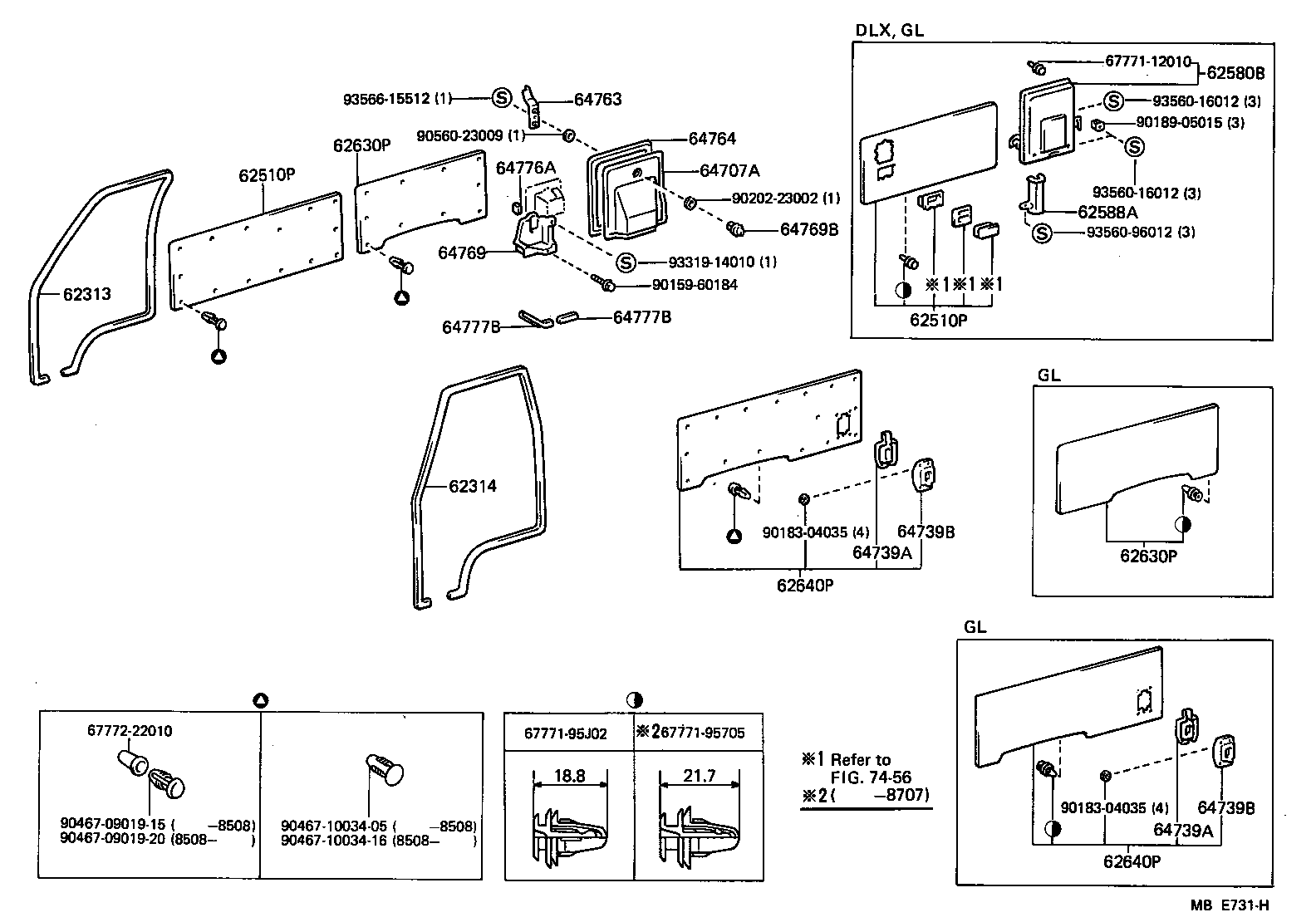

LH50V-QNE (1982)
Toyota Hiace Van,Wagon
(8212- )LH5#,YH5#..V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62313-95J0005 |
LH5#,61,71,YH50,52,6#,71..COM,V BEIGE,BEIGE |
1 | ||
| 62313-95J0005 |
LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD BEIGE,BEIGE |
1 | ||
| 62313-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62313-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 62313-95J0005 |
LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD BEIGE,BEIGE |
1 | ||
| 62313-95J0005 |
LH5#,61,71,YH50,52,6#,71..COM,V BEIGE,BEIGE |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J0605 |
LH50,60,YH50,61..V4D..VSG BEIGE,BEIGE |
1 | ||
| 62510-95J0805 |
LH50,60,YH50,61..V4D..VSG W/*REH,BEIGE,BEIGE |
1 | ||
| 62510-95J0804 |
LH50,6#,YH50,61..V4D..GL W/*REH,BLUE GRAY,BLUE |
1 | ||
| 62510-95J0604 |
LH50,6#,YH50,61..V4D..GL BLUE GRAY,BLUE |
1 | ||
| 62510-95J0615 |
LH5#,61,YH50..V4D..VSG BEIGE,BEIGE |
1 | ||
| 62510-95J0815 |
LH50,YH50..V4D..06S;LH51,61,YH52,6#..V4D..VSG W/*REH,BEIGE,BEIGE |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J0605 |
LH50,60,YH50,61..V4D..VSG BEIGE,BEIGE |
1 | ||
| 62510-95J0805 |
LH50,60,YH50,61..V4D..VSG W/*REH,BEIGE,BEIGE |
1 | ||
| 62510-95J0804 |
LH50,6#,YH50,61..V4D..GL W/*REH,BLUE GRAY,BLUE |
1 | ||
| 62510-95J0604 |
LH50,6#,YH50,61..V4D..GL BLUE GRAY,BLUE |
1 | ||
| 62510-95J0615 |
LH5#,61,YH50..V4D..VSG BEIGE,BEIGE |
1 | ||
| 62510-95J0815 |
LH50,YH50..V4D..06S;LH51,61,YH52,6#..V4D..VSG W/*REH,BEIGE,BEIGE |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0015 |
LH5#,61,71,YH50,61,71..V4D..06S BEIGE,BEIGE |
1 | ||
| 62580-95J0004 |
LH50,6#,YH50,61..V4D..GL..06S BLUE GRAY,BLUE |
1 | ||
| 62588A - COVER, SIDE HEATER, LOWER | ||||
| 62588-95J0004 |
LH50,61,YH50,61..V4D..GL..06S BLUE GRAY,BLUE |
1 | ||
| 62588-95J0015 |
LH5#,61,YH50,61..V4D..06S BEIGE,BEIGE |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J0705 |
LH50,YH50..GL BEIGE,BEIGE |
1 | ||
| 62630-95J0704 |
LH5#,YH50..GL BLUE GRAY,BLUE |
1 | ||
| 62630-95J0715 |
LH5#,YH50..GL BEIGE,BEIGE |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J0705 |
LH50,YH50..GL BEIGE,BEIGE |
1 | ||
| 62630-95J0704 |
LH5#,YH50..GL BLUE GRAY,BLUE |
1 | ||
| 62630-95J0715 |
LH5#,YH50..GL BEIGE,BEIGE |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J0505 |
LH50,YH50..GL BEIGE,BEIGE |
1 | ||
| 62640-95J0515 |
LH5#,YH50..GL BEIGE,BEIGE |
1 | ||
| 62640-95J0514 |
LH5#,YH50..GL BLUE GRAY,BLUE GRAY |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J0505 |
LH50,YH50..GL BEIGE,BEIGE |
1 | ||
| 62640-95J0515 |
LH5#,YH50..GL BEIGE,BEIGE |
1 | ||
| 62640-95J0514 |
LH5#,YH50..GL BLUE GRAY,BLUE GRAY |
1 | ||
| 64707A - COVER SUB-ASSY, QUARTER TRIM TOOL | ||||
| 64707-95J01 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 64739A - COVER, DECK TRIM REAR WASHER | ||||
| 85365-95J0005 |
LH50,60,70,YH5#,61,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85365-95J0015 |
LH5#,61,71,YH5#,6#,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85365-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 64739A - COVER, DECK TRIM REAR WASHER | ||||
| 85365-95J0005 |
LH50,60,70,YH5#,61,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85365-95J0015 |
LH5#,61,71,YH5#,6#,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85365-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER | ||||
| 85366-95J0005 |
LH50,60,70,YH5#,61,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85366-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 85366-95J0015 |
LH5#,61,71,YH5#,6#,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER | ||||
| 85366-95J0005 |
LH50,60,70,YH5#,61,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 85366-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 85366-95J0015 |
LH5#,61,71,YH5#,6#,71..DLX,GL BEIGE,BEIGE |
1 | ||
| 64763 - STOPPER, TOOL COVER | ||||
| 64763-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 64764 - PACKING, TOOL COVER | ||||
| 64764-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 64769 - CASE SUB-ASSY, TOOL BAG | ||||
| 64709-95J00 |
LH5#,YH5# |
1 | ||
| 64769B - KNOB, TOOL COVER | ||||
| 64769-1301001 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD BLACK,BLACK |
1 | ||
| 64776A - SPACER, TOOL BAG CASE | ||||
| 64776-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 58426-95701 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD *H,L=40 |
1 | ||
| 58426-95700 |
LH5#,6#,7#,YH5#,6#,71 L=170 |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 58426-95701 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD *H,L=40 |
1 | ||
| 58426-95700 |
LH5#,6#,7#,YH5#,6#,71 L=170 |
1 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 67771-95705 | ||||
| 67771-95J02 | ||||
| 67772-22010 | ||||
| 90159-60184 | ||||
| 90183-04035 | ||||
| 90189-05015 | ||||
| 90202-23002 | ||||
| 90467-0901915 | ||||
| 90467-0901920 | ||||
| 90467-1003405 | ||||
| 90467-1003416 | ||||
| 90560-23009 | ||||
| 93319-14010 | ||||
| 93560-16012 | ||||
| 93560-96012 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 7456 | ||||
