LH50V-QDFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

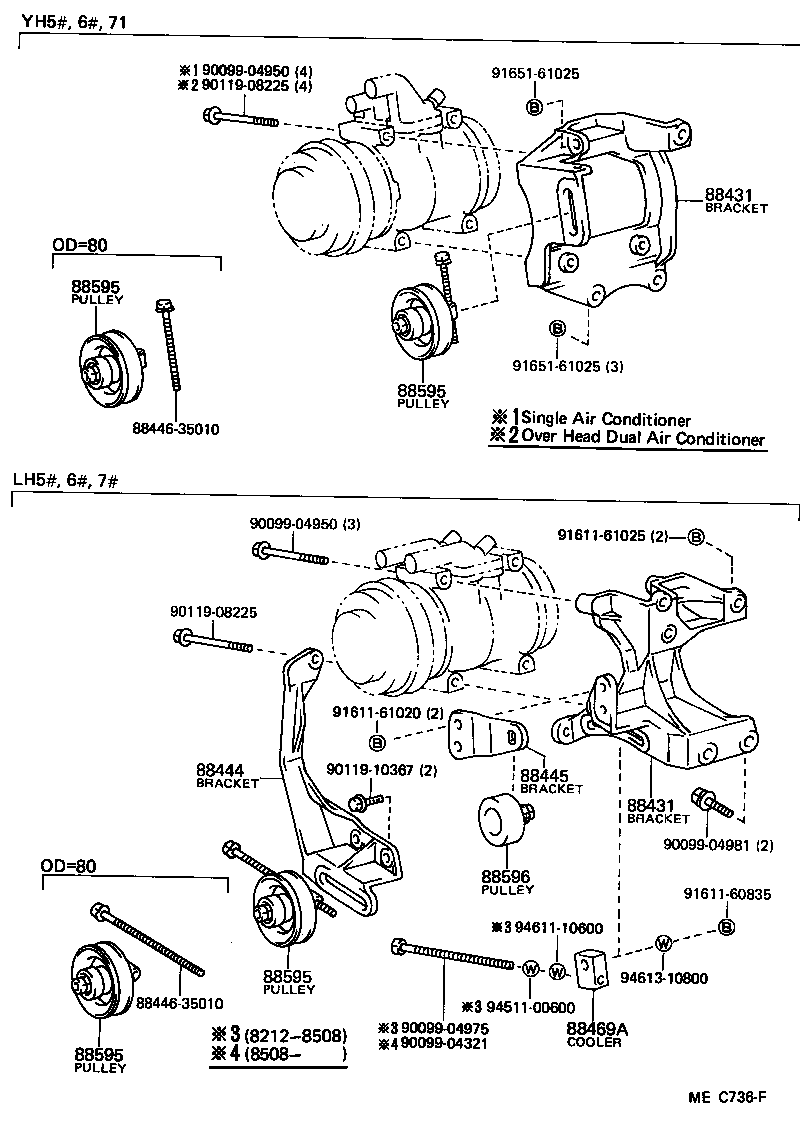

ILLUST NO. 2 OF 2(8212- )

Click highlighted areas on diagram

diagram 88431 88431 88444 88445 8844635010 8844635010 88469A 88595 88595 88595 88595 88596 9009904321 9009904950 9009904950 9009904975 9009904981 9011908225 9011908225 9011910367 9161160835 9161161020 9161161025 9165161025 9165161025 9451100600 9461110600 9461310800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26170

LH50,51,60,61,7#

 1
88431-28050

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26170

LH50,51,60,61,7#

 1
88431-28050

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88444 - BRACKET, IDLE PULLEY
88444-26060

LH50,51,60,61,7#

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LH50,51,60,61,7#

 1
88469A - COLLAR, ADJUSTING
88469-30280

LH50,51,60,61,7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-25010

LH5#,6#,7#

OD=90

 1
88440-28050

YH5#,6#,71

OD=90

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-25010

LH5#,6#,7#

OD=90

 1
88440-28050

YH5#,6#,71

OD=90

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-25010

LH5#,6#,7#

OD=90

 1
88440-28050

YH5#,6#,71

OD=90

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-25010

LH5#,6#,7#

OD=90

 1
88440-28050

YH5#,6#,71

OD=90

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LH50,51,60,61,7#

 1
Common parts
88446-35010
90099-04321
90099-04950
90099-04975
90099-04981
90119-08225
90119-10367
91611-60835
91611-61020
91611-61025
91651-61025
94511-00600
94611-10600
94613-10800

ILLUST NO. 1 OF 2(8212- )

Click highlighted areas on diagram

diagram 1605 88301 88302 88320 88330 88330B 88330C 88403 88899J 9009907114 9331915008 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88412-22030

LH50,51,60,61,7#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30380

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88411-14050

LH50,51,60,61,7#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-26120

LH50,51,60,61,7#..DSL

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

LH50,51,60,61,7#

 1
88410-30380

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

LH50,51,60,61,7#,YH5#,6#,71

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

LH50,51,60,61,7#,YH5#,6#,71

W/*ODAC

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

LH50,51,60,61,7#

 1
88403-14030

YH5#,6#,71..V

W/SINGLE AIR CONDITIONER

 1
Common parts
90099-07114
93319-15008
94511-00800
Linked diagrams
1605
