LH50V-QDFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

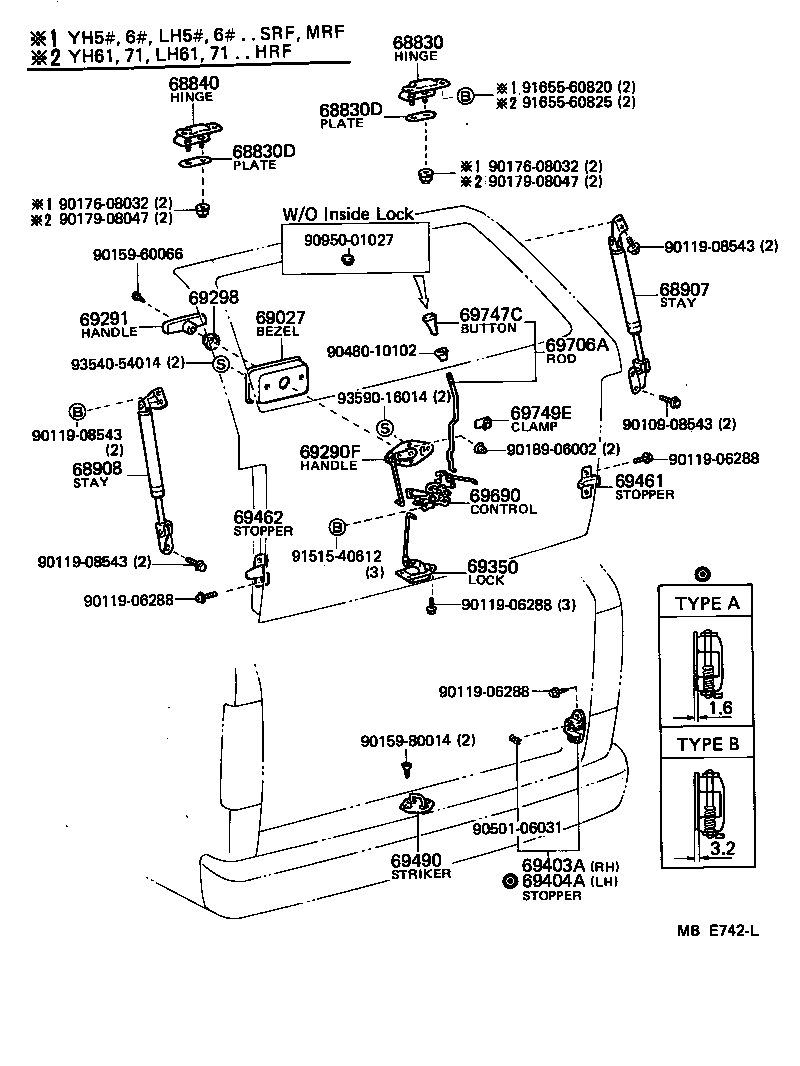

Click highlighted areas on diagram

diagram 68830 68830D 68830D 68840 68907 68908 69027 69290F 69291 69298 69350 69403A 69404A 69461 69462 69490 69690 69706A 69747C 69749E 9010908543 9011906288 9011906288 9011906288 9011906288 9011908543 9011908543 9011908543 9015960066 9015980014 9017608032 9017608032 9017908047 9017908047 9018906002 9048010102 9050106031 9095001027 9151540612 9165560820 9165560825 9354054014 9359016014
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-95J00

LH5#,6#,YH5#,6#..MRF,SRF

 1
68830D - PLATE, BACK DOOR HINGE
68825-95700

LH5#,6#,YH5#,6#..HRF,SRF

T=2.8

 2
68830D - PLATE, BACK DOOR HINGE
68825-95700

LH5#,6#,YH5#,6#..HRF,SRF

T=2.8

 2
68840 - HINGE ASSY, BACK DOOR, LH
68820-95J00

LH5#,6#,YH5#,6#..MRF,SRF

 1
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-95J02

LH5#,6#,YH5#,6#..(MRF,SRF)..(CTM,DLX,GL,SCM)

COLD SPEC,W/RR WIPER

 1
68907-95J00

LH5#,6#,YH5#,6#..SRF..(CTD,DLX,STD)

 1
68907-95J01

LH50,51,60,61,YH5#,6#..MRF,SRF

W/RR WIPER

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-95J02

LH5#,6#,YH5#,6#..(MRF,SRF)..(CTM,DLX,GL,SCM)

COLD SPEC,W/RR WIPER

 1
68908-95J01

LH50,51,60,61,YH5#,6#..MRF,SRF

W/RR WIPER

 1
68908-95J00

LH5#,6#,YH5#,6#..SRF..(CTD,DLX,STD)

 1
69027 - BEZEL SUB-ASSY, BACK DOOR INSIDE HANDLE
69027-95J0005

LH50,60,70,YH50,61,71..COM,V

BEIGE,BEIGE

 1
69290F - HANDLE ASSY, BACK DOOR INSIDE
69290-95J00

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0005

LH50,60,70,YH50,61,71..COM,V

BEIGE,BEIGE

 1
69291-95J0015

LH5#,61,71,YH50,52,6#,71..COM,V

BEIGE,BEIGE

 1
69350 - LOCK ASSY, BACK DOOR
69350-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69450-95J00

LH5#,6#,7#,YH5#,6#,71

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95J01

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69706-95J00

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69747-2002001

LH5#,6#,7#,YH5#,6#,71..COM,V

BLACK,BLACK

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
Common parts
90109-08543
90119-06288
90119-08543
90159-60066
90159-80014
90176-08032
90179-08047
90189-06002
90480-10102
90501-06031
90950-01027
91515-40612
91655-60820
91655-60825
93540-54014
93590-16014
