LH50V-QDB (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

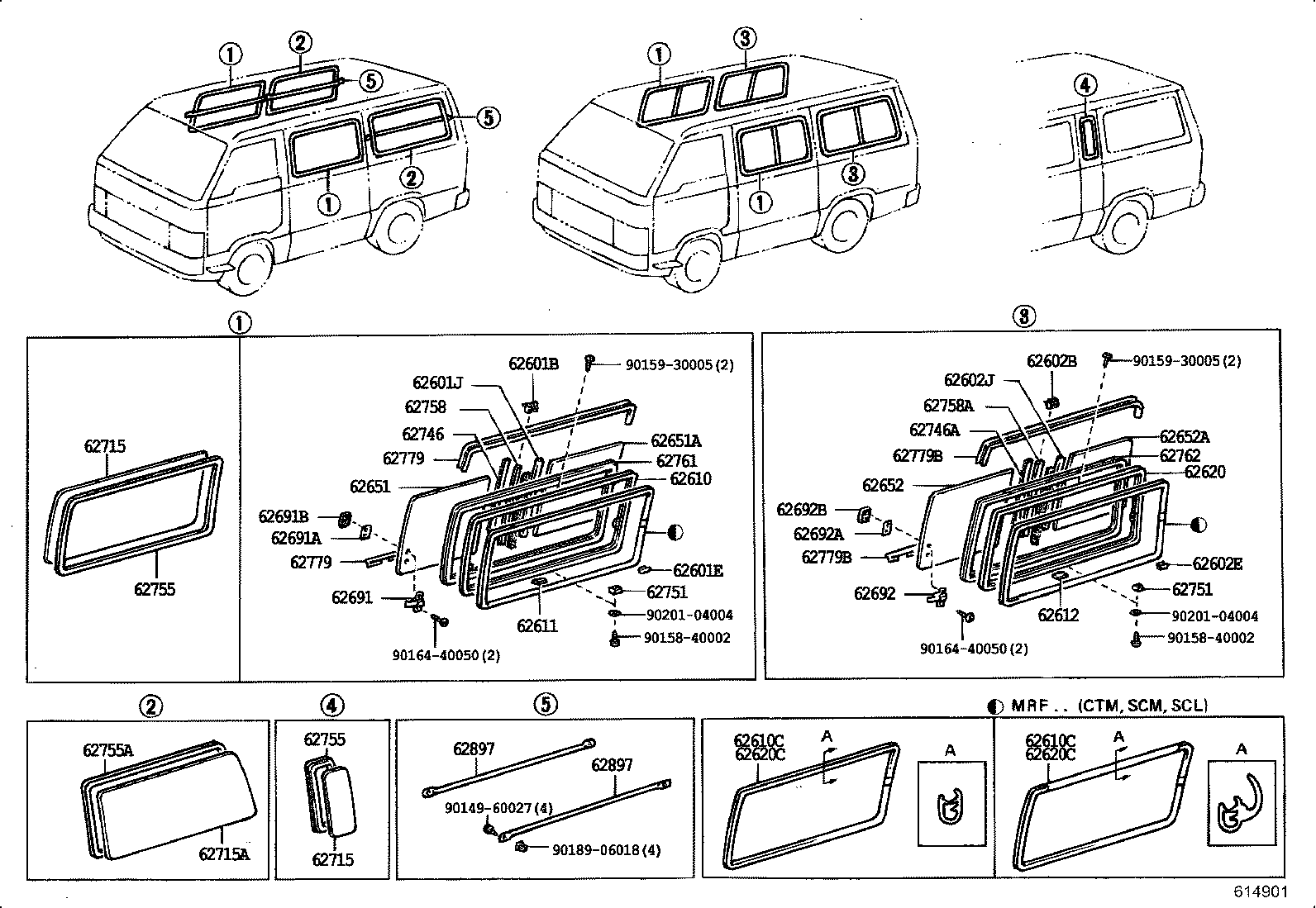

Click highlighted areas on diagram

diagram 62601B 62601E 62601J 62602B 62602E 62602J 62610 62610C 62610C 62611 62612 62620 62620C 62620C 62651 62651A 62652 62652A 62691 62691A 62691B 62692 62692A 62692B 62715 62715 62715A 62746 62746A 62751 62751 62755 62755 62755A 62758 62758A 62761 62762 62779 62779 62779B 62779B 62897 62897 9014960027 9015840002 9015840002 9015930005 9015930005 9016440050 9016440050 9018906018 9020104004 9020104004
Part # Description Qty Price
62620C - CLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
62377-95J0001

LH50,51,YH51..DLX

RH,BLACK,BLACK

 1
62378-95J0001

LH50,51,YH51..DLX

LH,BLACK,BLACK

 1
62620C - CLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
62377-95J0001

LH50,51,YH51..DLX

RH,BLACK,BLACK

 1
62378-95J0001

LH50,51,YH51..DLX

LH,BLACK,BLACK

 1
Common parts
90149-60027
90158-40002
90159-30005
90164-40050
90189-06018
90201-04004
