LH50G-SGS (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8212- )ATM

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-40010

LH50,51,61,YH51,61..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

LH50,51,61,YH51,61..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

LH50,YH51,61..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

LH50,51,61,YH51,61..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

LH50,YH51,61..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

LH50,51,61,YH51,61..ATM

 1
35557 - PAWL, PARKING LOCK
35557-26010

LH50,51,61,YH51,61..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

LH50,YH51,61..ATM

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-26010

LH50,51,61,YH51,61..ATM

 1
35585 - ROD, PARKING LOCK
35501-22020

LH50..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

LH50,51,61,YH51,61..ATM

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

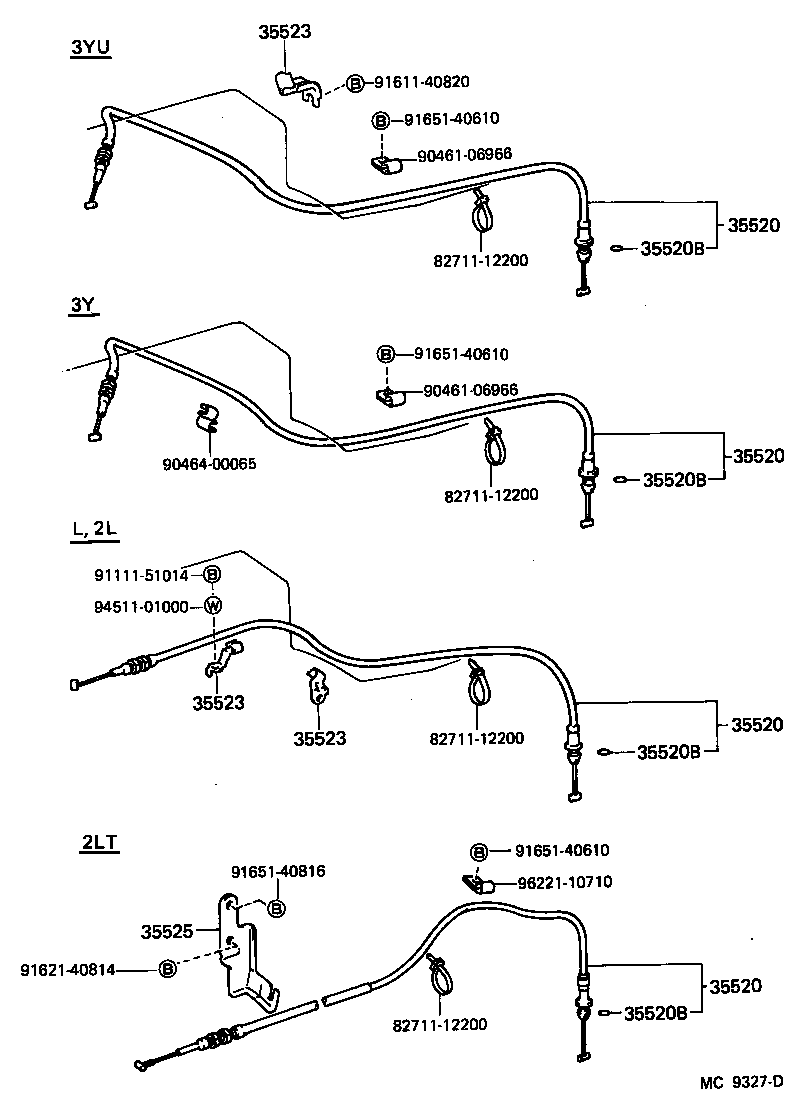

ILLUST NO. 2 OF 2(8212- )ATM

Click highlighted areas on diagram

diagram 35520 35520 35520 35520 35520B 35520B 35520B 35520B 35523 35523 35523 35525 8271112200 8271112200 8271112200 8271112200 9046106966 9046106966 9046400065 9111151014 9161140820 9162140814 9165140610 9165140610 9165140610 9165140816 9451101000 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-30022

LH50,51,61..ATM..DSL

 1
35520 - CABLE ASSY, THROTTLE
35520-30022

LH50,51,61..ATM..DSL

 1
35520 - CABLE ASSY, THROTTLE
35520-30022

LH50,51,61..ATM..DSL

 1
35520 - CABLE ASSY, THROTTLE
35520-30022

LH50,51,61..ATM..DSL

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

LH50,YH51,61..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

LH50,YH51,61..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

LH50,YH51,61..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

LH50,YH51,61..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-26010

LH50,51,61..ATM..DSL

ENGINE OIL FILTER

 1
35523-30010

LH50,51,61..ATM..DSL

INTAKE MANIFOLD

 1
35523 - CLAMP, THROTTLE CABLE
35523-26010

LH50,51,61..ATM..DSL

ENGINE OIL FILTER

 1
35523-30010

LH50,51,61..ATM..DSL

INTAKE MANIFOLD

 1
35523 - CLAMP, THROTTLE CABLE
35523-26010

LH50,51,61..ATM..DSL

ENGINE OIL FILTER

 1
35523-30010

LH50,51,61..ATM..DSL

INTAKE MANIFOLD

 1
Common parts
82711-12200
90461-06966
90464-00065
91111-51014
91611-40820
91621-40814
91651-40610
91651-40816
94511-01000
96221-10710
