LH50G-QGS (1982)
Toyota Hiace Van,Wagon

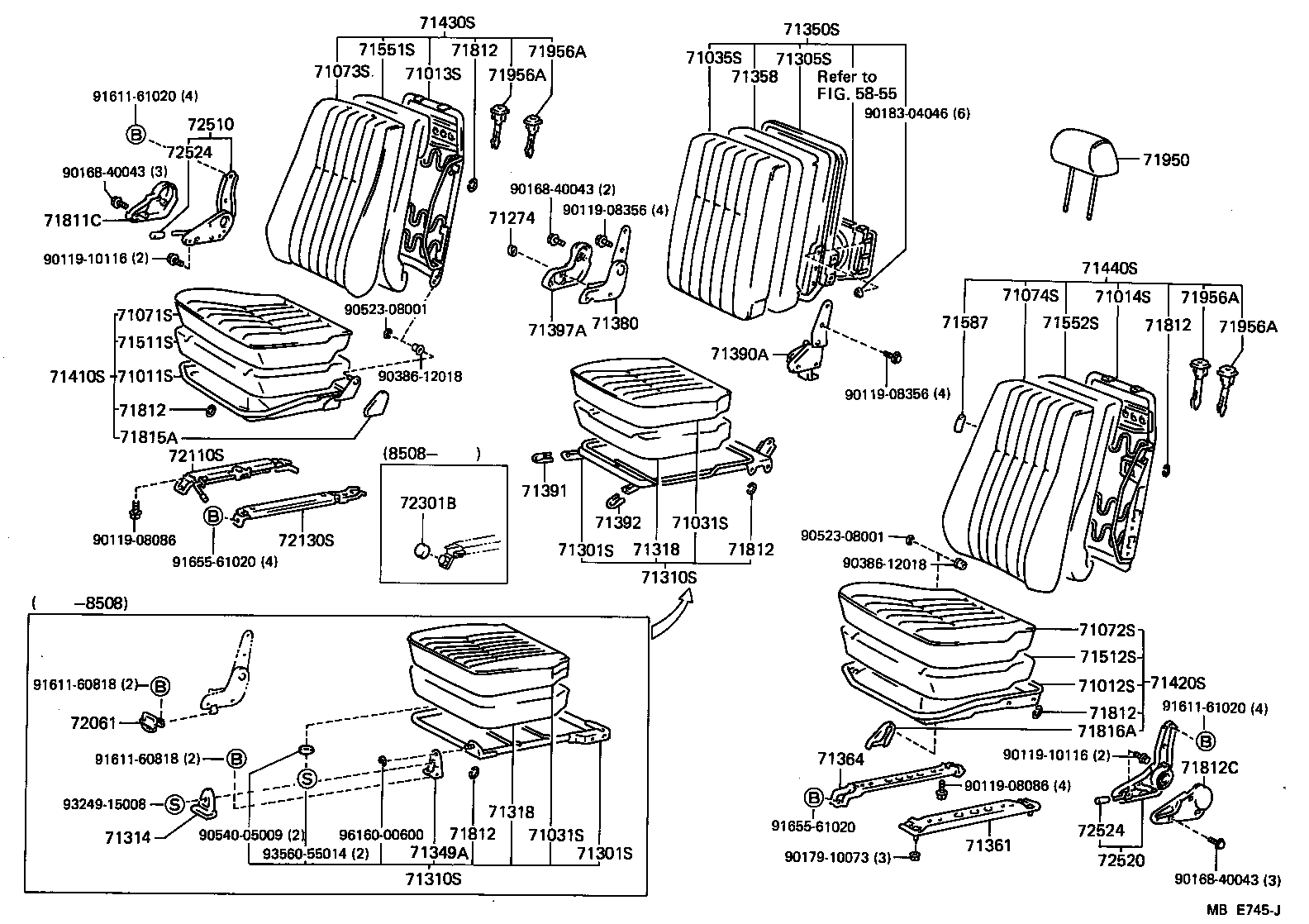

ILLUST NO. 1 OF 2(8212-8401)CTM,SCM ; (8401- )CTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J01 |
LH50,YH51..CTM,SCM |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J01 |
LH5#,YH51..CTM,SCM |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J01 |
LH5#,YH51..CTM |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71031-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71031-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71035-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71035-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71071-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71072-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71073-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71074-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0004 |
LH5#,YH51..09S BLUE GRAY,BLUE |
2 | ||
| 71274-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
2 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71301-95J02 |
LH5#,YH51..CTM |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71301-95J02 |
LH5#,YH51..CTM |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-95J01 |
LH50,51,YH51..CTM |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71310-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71310-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71314 - COVER, CENTER SEAT BRACKET | ||||
| 71314-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
1 | ||
| 71314-95J0004 |
LH5#,YH51..09S BLUE GRAY,BLUE |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71318-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71318-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 71349A - BRACKET, WALK THROUGH, NO.1 | ||||
| 71349-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71350-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71358-95J00 |
LH50,60,70,YH5#,61,71..4H,4HC,5H |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 71364 - BRACKET, FRONT SEAT SET, NO.4 | ||||
| 71364-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J01 |
LH5#,YH51..CTM |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71390-95J0104 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
1 | ||
| 71390-95J0106 |
LH5#,YH51..CTM BROWN,BROWN |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71395-95J0004 |
LH5#,YH51..09S BLUE GRAY,BLUE |
1 | ||
| 71395-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71410-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71420-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71401-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95J0406 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 71402-95J0404 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J02 |
LH5#,YH51..CTM |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J04 |
LH5#,YH51..CTM |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71811-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71812-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71815-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 71816-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0004 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
2 | ||
| 71910-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
2 | ||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
2 | ||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
2 | ||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
2 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
2 | ||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
2 | ||
| 72061 - STRIKER SUB-ASSY, CENTER SEAT LOCK | ||||
| 72061-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 72130S - TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT) | ||||
| 72130-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95J0106 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72510-95J0104 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-95J0004 |
LH50,YH51..CTM BLUE GRAY,BLUE |
1 | ||
| 72520-95J0006 |
LH50,YH51..CTM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08356 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90183-04046 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 90540-05009 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91655-61020 | ||||
| 93249-15008 | ||||
| 93560-55014 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 5855 | ||||

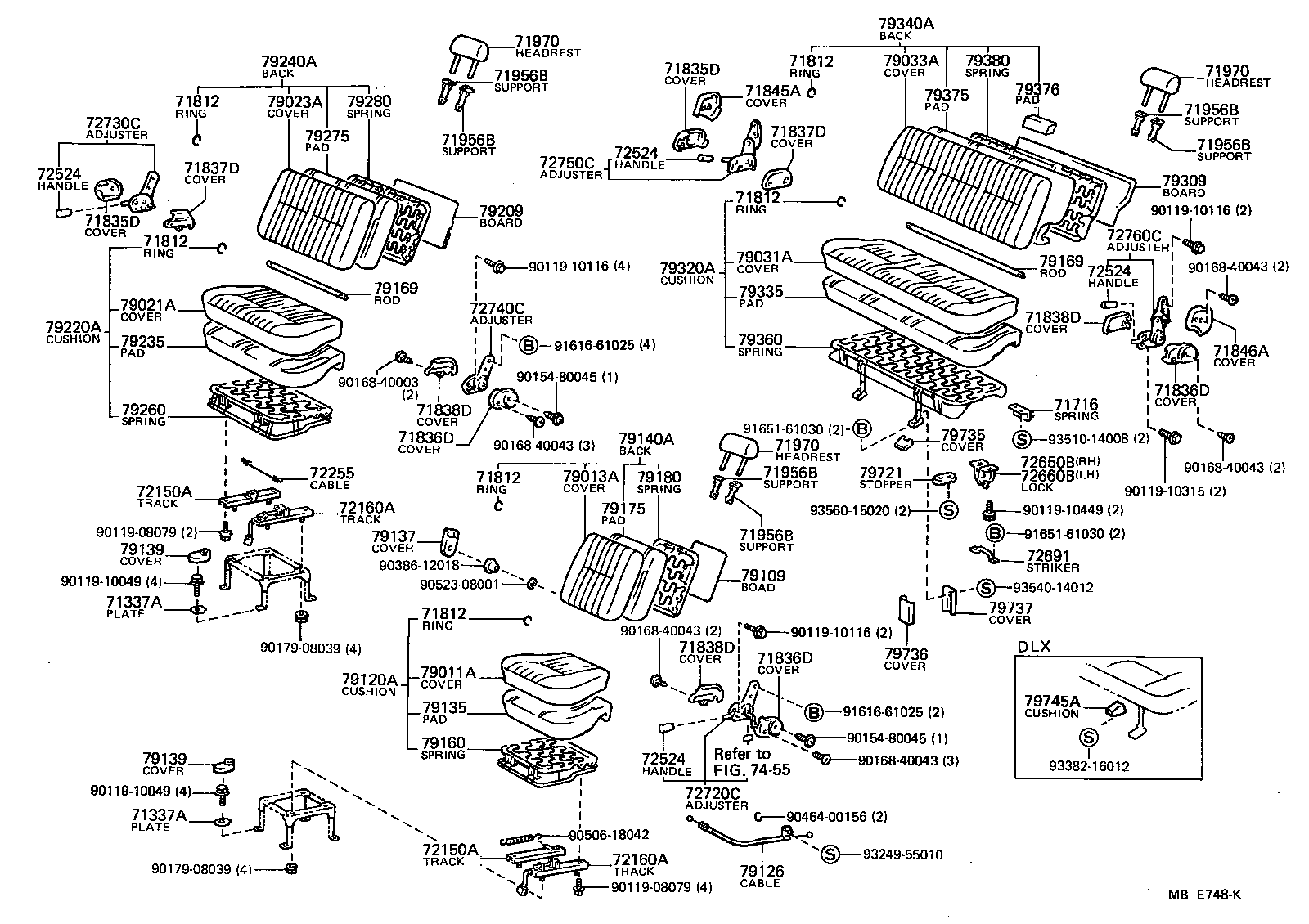

ILLUST NO. 2 OF 2(8212-8508)LH5#,YH51..09S ; (8508- )WG..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71337A - PLATE, REAR SEAT LEG | ||||
| 71337-95J00 |
LH5#,YH51..CTM |
8 | ||
| 71337A - PLATE, REAR SEAT LEG | ||||
| 71337-95J00 |
LH5#,YH51..CTM |
8 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 58706-90C00 |
LH50,51,61,YH51,61..WG..(08S,09S,10S) |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0204 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-95J0206 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71835-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0204 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-95J0206 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71835-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0004 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837-95J0006 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0004 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837-95J0006 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71845A - COVER, REAR SEAT RECLINING, UPPER RH | ||||
| 71845-9570004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 71845-9570006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71846A - COVER, REAR SEAT RECLINING, UPPER LH | ||||
| 71846-9570006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71846-9570004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J03 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72150-95J02 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72150-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J03 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72150-95J02 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72150-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72160-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160-95J01 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72160-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160-95J01 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72255 - CABLE, REAR SEAT TRACK LEVER | ||||
| 72255-95J01 |
LH5#,YH51..09S |
1 | ||
| 72255-95J00 |
LH50,51,YH51..CTM,SCL,SCM SWING SEAT |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95J00 |
LH5#,YH51..WG |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95J00 |
LH5#,YH51..08S,09S |
1 | ||
| 72691 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 72691-95J00 |
LH50,51,YH51..08S,09S |
2 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72720-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72730-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-95J02 |
LH5#,YH51..09S |
1 | ||
| 72740-95J00 |
LH5#,YH51..CTM,SCM *SS |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72750-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72760-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79011-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79013-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J0906 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79021-95J0904 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79021-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79021-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-95J0704 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79023-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79023-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79023-95J0706 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79031-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79033-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
1 | ||
| 79109-95J0004 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
1 | ||
| 79109-95J0206 |
LH5#,YH51..CTM,SCM SWING SEAT,BROWN,BROWN |
1 | ||
| 79109-95J0204 |
LH5#,YH51..CTM,SCM SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79120-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79126 - CABLE, NO.1 SEAT LOCK | ||||
| 79126-95J01 |
LH50,51,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79126-95J00 |
LH5#,YH51..09S |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79137-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 79139 - COVER, REAR SEAT LEG | ||||
| 79139-95J0004 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
8 | ||
| 79139-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
8 | ||
| 79139 - COVER, REAR SEAT LEG | ||||
| 79139-95J0004 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
8 | ||
| 79139-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
8 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79140-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J00 |
LH50,YH51..WG |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 72753-95J00 |
LH5#,YH51..WG NO.2 SEAT |
1 | ||
| 72753-95J01 |
LH5#,YH51..WG NO.3 SEAT |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 72753-95J00 |
LH5#,YH51..WG NO.2 SEAT |
1 | ||
| 72753-95J01 |
LH5#,YH51..WG NO.3 SEAT |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J01 |
LH50,YH51..CTM,SCM |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79209-95J0106 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79209-95J0104 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79220-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79220-95J0904 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79220-95J0906 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79240-95J0706 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79240-95J0704 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79240-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95J00 |
LH5#,YH51..09S |
1 | ||
| 79260-95J03 |
LH50,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-95J01 |
LH50,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79280-95J02 |
LH5#,YH51..CTM |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 79309-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79320-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79335-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79340-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-95J00 |
LH50,YH51..WG |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79375-95J01 |
LH50,YH51..09S |
1 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79380-95J01 |
LH50,YH51..CTM,SCM |
1 | ||
| 79721 - STOPPER, NO.3 SEAT | ||||
| 79721-95J00 |
LH50,51,YH51..08S,09S |
2 | ||
| 79735 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79735-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79735-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| 79736 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79736-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79736-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| 79737 - COVER, NO.3 SEAT LEG, NO.3 | ||||
| 79737-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79737-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10049 | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10449 | ||||
| 90154-80045 | ||||
| 90168-40003 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90464-00156 | ||||
| 90506-18042 | ||||
| 90523-08001 | ||||
| 91616-61025 | ||||
| 91651-61030 | ||||
| 93249-55010 | ||||
| 93382-16012 | ||||
| 93510-14008 | ||||
| 93540-14012 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 7455 | ||||

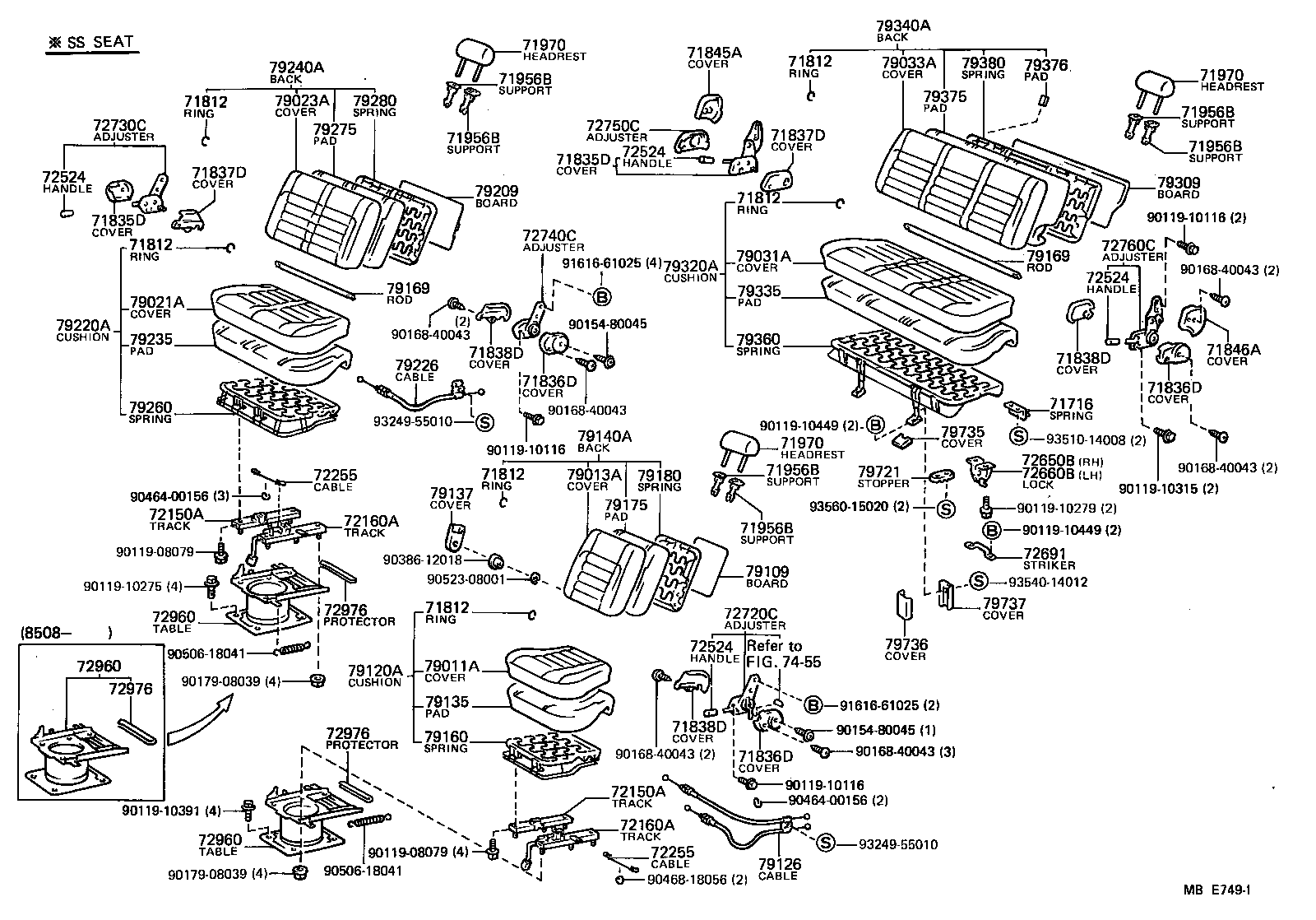

ILLUST NO. 2 OF 2(8212-8401)CTM,SCM ; (8401- )CTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 58706-90C00 |
LH50,51,61,YH51,61..WG..(08S,09S,10S) |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0204 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-95J0206 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71835-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0204 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-95J0206 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71835-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71835-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0006 |
LH5#,YH51..CTM,SCM NO.1 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0004 |
LH5#,YH51..WG NO.1 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-9570006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 71836-95J0104 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71836-95J0106 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0004 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837-95J0006 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0004 |
LH5#,YH51..WG NO.2 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71837-95J0006 |
LH5#,YH51..CTM,SCM NO.2 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72708-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0004 |
LH5#,YH51..WG NO.1,NO.2 SEAT,BLUE GRAY,BLUE |
2 | ||
| 72709-95J0006 |
LH5#,YH51..CTM,SCM NO.3 SEAT,BROWN,BROWN |
1 | ||
| 72709-95J0004 |
LH5#,YH51..WG NO.3 SEAT,BLUE GRAY,BLUE |
1 | ||
| 71838-95J0006 |
LH5#,YH51..CTM,SCM NO.1,NO.2 SEAT,BROWN,BROWN |
2 | ||
| 71845A - COVER, REAR SEAT RECLINING, UPPER RH | ||||
| 71845-9570004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 71845-9570006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71846A - COVER, REAR SEAT RECLINING, UPPER LH | ||||
| 71846-9570006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 71846-9570004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BROWN,BROWN |
4 | ||
| 71956-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ無,W/O LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002014 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BLUE GRAY,BLUE |
4 | ||
| 71990-3002036 |
LH5#,YH51..CTM,SCM ﾛｯｸ付,W/LOCK,BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
4 | ||
| 71910-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
4 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J03 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72150-95J02 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72150-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J03 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72150-95J02 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72150-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72160-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160-95J01 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH5#,YH51..09S NO.2 SEAT |
1 | ||
| 72160-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT |
2 | ||
| 72160-95J01 |
LH5#,YH51..09S NO.1 SEAT |
1 | ||
| 72255 - CABLE, REAR SEAT TRACK LEVER | ||||
| 72255-95J01 |
LH5#,YH51..09S |
1 | ||
| 72255-95J00 |
LH50,51,YH51..CTM,SCL,SCM SWING SEAT |
2 | ||
| 72255 - CABLE, REAR SEAT TRACK LEVER | ||||
| 72255-95J01 |
LH5#,YH51..09S |
1 | ||
| 72255-95J00 |
LH50,51,YH51..CTM,SCL,SCM SWING SEAT |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72525-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95J00 |
LH5#,YH51..WG |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95J00 |
LH5#,YH51..08S,09S |
1 | ||
| 72691 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 72691-95J00 |
LH50,51,YH51..08S,09S |
2 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72720-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72730-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-95J02 |
LH5#,YH51..09S |
1 | ||
| 72740-95J00 |
LH5#,YH51..CTM,SCM *SS |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72750-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 72760-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.2 SEAT |
1 | ||
| 72960-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.1 SEAT |
1 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.2 SEAT |
1 | ||
| 72960-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.1 SEAT |
1 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-95J01 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.2 SEAT |
1 | ||
| 72960-95J00 |
LH5#,YH51..CTM,SCM SWING SEAT,NO.1 SEAT |
1 | ||
| 72976 - PROTECTOR, REAR SEAT TURN TABLE | ||||
| 72976-95J01 |
LH50,51,YH51..CTM,SCM *SS,NO.2 SEAT |
1 | ||
| 72976-95J00 |
LH50,51,YH51..CTM,SCM *SS,NO.1 SEAT |
1 | ||
| 72976 - PROTECTOR, REAR SEAT TURN TABLE | ||||
| 72976-95J01 |
LH50,51,YH51..CTM,SCM *SS,NO.2 SEAT |
1 | ||
| 72976-95J00 |
LH50,51,YH51..CTM,SCM *SS,NO.1 SEAT |
1 | ||
| 72976 - PROTECTOR, REAR SEAT TURN TABLE | ||||
| 72976-95J01 |
LH50,51,YH51..CTM,SCM *SS,NO.2 SEAT |
1 | ||
| 72976-95J00 |
LH50,51,YH51..CTM,SCM *SS,NO.1 SEAT |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79011-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79013-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J0906 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79021-95J0904 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79021-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79021-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-95J0704 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79023-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79023-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79023-95J0706 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79031-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79033-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-95J0006 |
LH5#,YH51..CTM BROWN,BROWN |
1 | ||
| 79109-95J0004 |
LH5#,YH51..CTM BLUE GRAY,BLUE |
1 | ||
| 79109-95J0206 |
LH5#,YH51..CTM,SCM SWING SEAT,BROWN,BROWN |
1 | ||
| 79109-95J0204 |
LH5#,YH51..CTM,SCM SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79120-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79126 - CABLE, NO.1 SEAT LOCK | ||||
| 79126-95J01 |
LH50,51,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79126-95J00 |
LH5#,YH51..09S |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79137-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79140-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J00 |
LH50,YH51..WG |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 72753-95J00 |
LH5#,YH51..WG NO.2 SEAT |
1 | ||
| 72753-95J01 |
LH5#,YH51..WG NO.3 SEAT |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 72753-95J00 |
LH5#,YH51..WG NO.2 SEAT |
1 | ||
| 72753-95J01 |
LH5#,YH51..WG NO.3 SEAT |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J01 |
LH50,YH51..CTM,SCM |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79209-95J0106 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79209-95J0104 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79220-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79220-95J0904 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79220-95J0906 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79226 - CABLE, NO.2 SEAT LOCK | ||||
| 79226-95J00 |
LH50,51,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79240-95J0706 |
LH50,YH51..CTM FB,SWING SEAT,BROWN,BROWN |
1 | ||
| 79240-95J0704 |
LH50,YH51..CTM FB,SWING SEAT,BLUE GRAY,BLUE |
1 | ||
| 79240-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95J00 |
LH5#,YH51..09S |
1 | ||
| 79260-95J03 |
LH50,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-95J01 |
LH50,YH51..CTM,SCM SWING SEAT |
1 | ||
| 79280-95J02 |
LH5#,YH51..CTM |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
1 | ||
| 79309-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79320-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79335-95J01 |
LH50,51,YH51..09S |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-95J0104 |
LH50,YH51..CTM FB,BLUE GRAY,BLUE |
1 | ||
| 79340-95J0106 |
LH50,YH51..CTM FB,BROWN,BROWN |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-95J00 |
LH50,YH51..WG |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79375-95J01 |
LH50,YH51..09S |
1 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79380-95J01 |
LH50,YH51..CTM,SCM |
1 | ||
| 79721 - STOPPER, NO.3 SEAT | ||||
| 79721-95J00 |
LH50,51,YH51..08S,09S |
2 | ||
| 79735 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79735-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79735-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| 79736 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79736-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79736-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| 79737 - COVER, NO.3 SEAT LEG, NO.3 | ||||
| 79737-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
2 | ||
| 79737-95J0004 |
LH5#,YH51..WG BLUE GRAY,BLUE |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10116 | ||||
| 90119-10275 | ||||
| 90119-10279 | ||||
| 90119-10315 | ||||
| 90119-10391 | ||||
| 90119-10449 | ||||
| 90154-80045 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90464-00156 | ||||
| 90468-18056 | ||||
| 90506-18041 | ||||
| 90523-08001 | ||||
| 91616-61025 | ||||
| 93249-55010 | ||||
| 93510-14008 | ||||
| 93540-14012 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
