LH50G-QGS (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )MRF

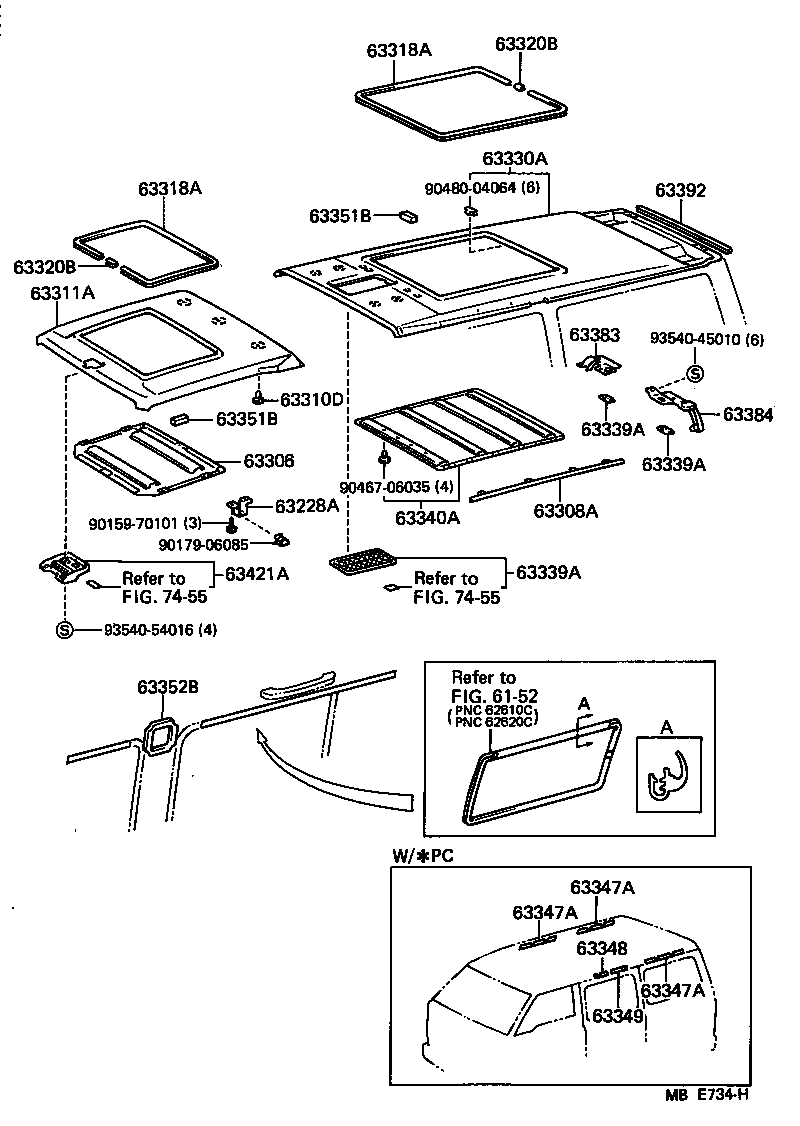

Click highlighted areas on diagram

diagram 6152 63228A 63306 63308A 63310D 63311A 63318A 63318A 63320B 63320B 63330A 63339A 63339A 63339A 63340A 63347A 63347A 63347A 63348 63349 63351B 63351B 63352B 63383 63384 63392 63421A 7455 7455 9015970101 9017906085 9046706035 9048004064 9354045010 9354054016
Part # Description Qty Price
63228A - BRACKET, ROOF HEADLINING, NO.1
63228-95J00

LH50,YH51..MRF..09S

 3
63308A - TRIM SUB-ASSY, ROOF HEADLINING, NO.1
63308-95J0003

LH5#,YH51..MRF

GRAY,GRAY

 1
63308-95J0008

LH5#,YH51..MRF

IVORY,IVORY

 1
63310D - CLIP, ROOF HEADLINING
90467-0502103

LH50,51,YH51..MRF

GRAY,GRAY

 3
90467-0502108

LH5#,YH51..MRF

IVORY,IVORY

 3
63311A - HEADLINING, ROOF NO.1
63311-95J0203

LH50,YH51..MRF..09S

GRAY,GRAY

 1
63311-95J0208

LH50,YH51..MRF..09S

IVORY,IVORY

 1
63318A - MOULDING, TILT ROOF OPENING TRIM
63318-95J0303

LH50,51,YH51..MRF..(08S,09S)

RR,GRAY,GRAY

 1
63318-95J0308

LH5#,YH51..MRF

RR,IVORY,IVORY

 1
63318A - MOULDING, TILT ROOF OPENING TRIM
63318-95J0303

LH50,51,YH51..MRF..(08S,09S)

RR,GRAY,GRAY

 1
63318-95J0308

LH5#,YH51..MRF

RR,IVORY,IVORY

 1
63320B - JOINT, SUN ROOF OPENING TRIM
63319-14011

LH50,51,YH51..MRF

 2
63320B - JOINT, SUN ROOF OPENING TRIM
63319-14011

LH50,51,YH51..MRF

 2
63330A - HEADLINING ASSY, ROOF, REAR
63330-95J0703

LH50,YH51..MRF..09S

GRAY,GRAY

 1
63330-95J0708

LH50,YH51..MRF..09S

IVORY,IVORY

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-95J0003

LH50,51,YH51..MRF..(08S,09S)

FR,GRAY,GRAY

 1
63339-95J0008

LH5#,YH51..MRF

FR,IVORY,IVORY

 1
63339-9570008

LH5#,YH51..MRF

RR,IVORY,IVORY

 2
63339-9570003

LH50,51,YH51..MRF..(08S,09S)

RR,GRAY,GRAY

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-95J0003

LH50,51,YH51..MRF..(08S,09S)

FR,GRAY,GRAY

 1
63339-95J0008

LH5#,YH51..MRF

FR,IVORY,IVORY

 1
63339-9570008

LH5#,YH51..MRF

RR,IVORY,IVORY

 2
63339-9570003

LH50,51,YH51..MRF..(08S,09S)

RR,GRAY,GRAY

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-95J0003

LH50,51,YH51..MRF..(08S,09S)

FR,GRAY,GRAY

 1
63339-95J0008

LH5#,YH51..MRF

FR,IVORY,IVORY

 1
63339-9570008

LH5#,YH51..MRF

RR,IVORY,IVORY

 2
63339-9570003

LH50,51,YH51..MRF..(08S,09S)

RR,GRAY,GRAY

 2
63340A - HEADLINING ASSY, SUN ROOF, REAR
63340-95J0008

LH5#,YH51..MRF

IVORY,IVORY

 1
63340-95J0003

LH5#,YH51..MRF

GRAY,GRAY

 1
63351B - PAD, ROOF HEADLINING
63351-95J01

LH50,YH51..MRF..09S

50X50X90

 3
63351-95J00

LH50,51,YH51..MRF

20X12X30

 2
63351B - PAD, ROOF HEADLINING
63351-95J01

LH50,YH51..MRF..09S

50X50X90

 3
63351-95J00

LH50,51,YH51..MRF

20X12X30

 2
63383 - RETAINER, ROOF HEADLINING, REAR RH
63383-95J00

LH50,51,YH51..CTM,SCM

 1
63384 - RETAINER, ROOF HEADLINING, REAR LH
63384-95J00

LH50,51,YH51..CTM,SCM

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-95J0108

LH5#,YH51..MRF

IVORY,IVORY

 1
63392-95J0103

LH50,51,YH51..MRF..(08S,09S)

GRAY,GRAY

 1
63421A - ORNAMENT, ROOF CONSOLE
63421-95J0203

LH50,YH51..MRF..09S

GRAY,GRAY

 1
63421-95J0208

LH50,YH51..MRF..09S

IVORY,IVORY

 1
Common parts
90159-70101
90179-06085
90467-06035
90480-04064
93540-45010
93540-54016
Linked diagrams
6152
7455
