LH50G-PE (1982)
Toyota Hiace Van,Wagon

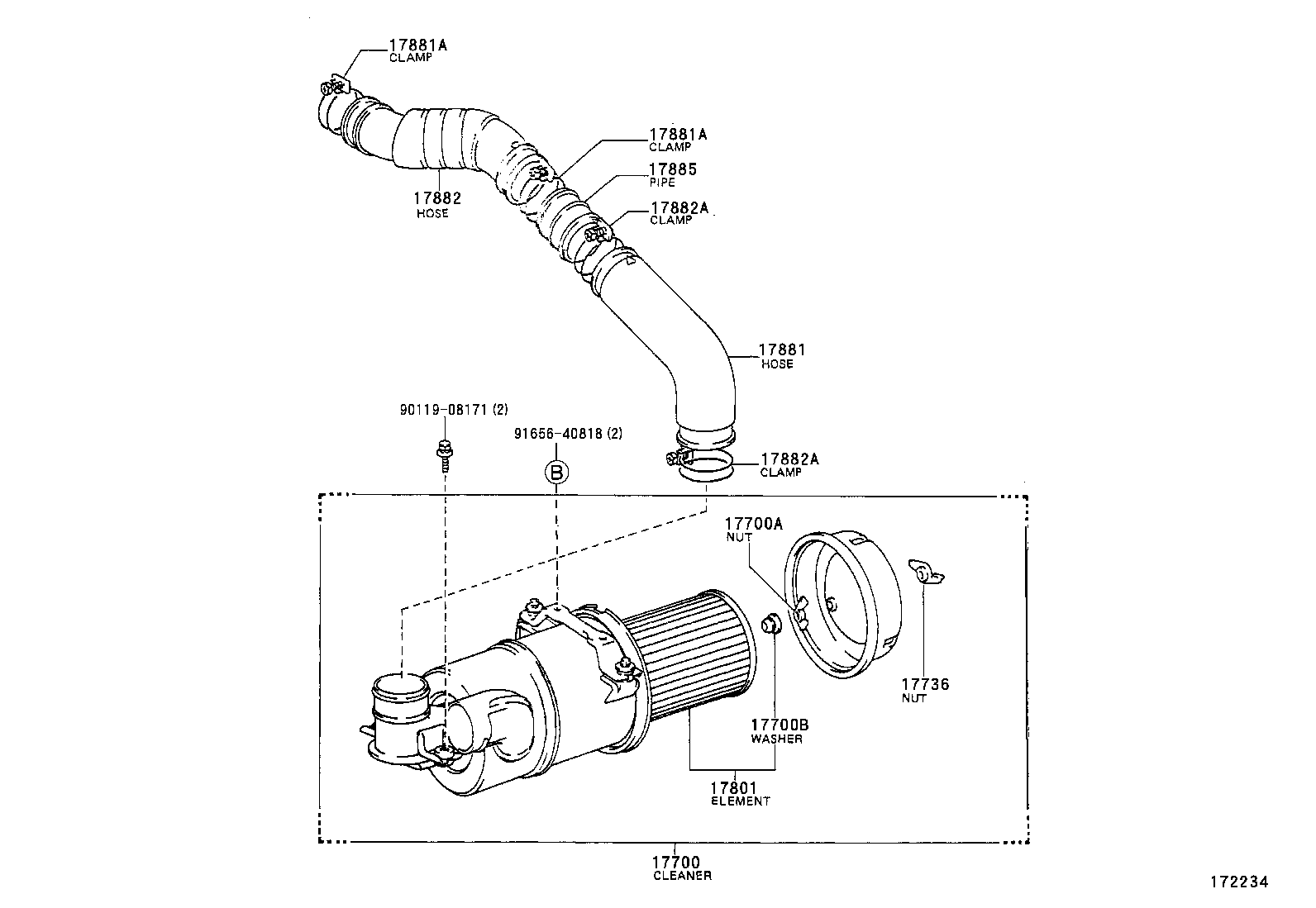

ILLUST NO. 1 OF 2(8212- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54220 |
L,2L#..LH5#,6#,7#..ST |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
L,2L#..LH5#,6#,71 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
L,2L#..LH5#,6#,71 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
L,2L#..LH5#,6#,71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54170 |
L,2L..LH5#,6#,7#..ST |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L,2L..LH5#,6#,7# INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10780 |
L,2L..LH5#,6#,7# PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L,2L..LH5#,6#,7# INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10780 |
L,2L..LH5#,6#,7# PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54120 |
L,2L..LH50,51,60,61,7# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-54080 |
L,2L#..LH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
ILLUST NO. 2 OF 2(8212- )L,2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 53299-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 53299-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17911A - HOSE, COOL AIR INTAKE, NO.1 | ||||
| 17882-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17882-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 53775-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 53775-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17911D - BRACKET, COOL AIR INTAKE HOSE, NO.1 | ||||
| 53709-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 53709-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1 | ||||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1 | ||||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 96111-10780 |
L,2L..LH5#,6#,7# |
2 | ||
| 17911G - SEAL, COOL AIR INTAKE HOSE | ||||
| 17755-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17755-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17911G - SEAL, COOL AIR INTAKE HOSE | ||||
| 17755-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17755-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 17767-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17767-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 17767-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17767-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17793-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17793-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17793-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17793-95J00 |
L,2L#..LH5#,6#,7# |
1 | ||
| 17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17780-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17780-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 53285-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| 53285-95J00 |
L,2L..LH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90387-10100 | ||||
| 90480-16005 | ||||
| 91611-40620 | ||||
| 91616-40614 | ||||
| 91631-40825 | ||||
| 91656-40818 | ||||
