LH50G-MES (1982)
Toyota Hiace Van,Wagon

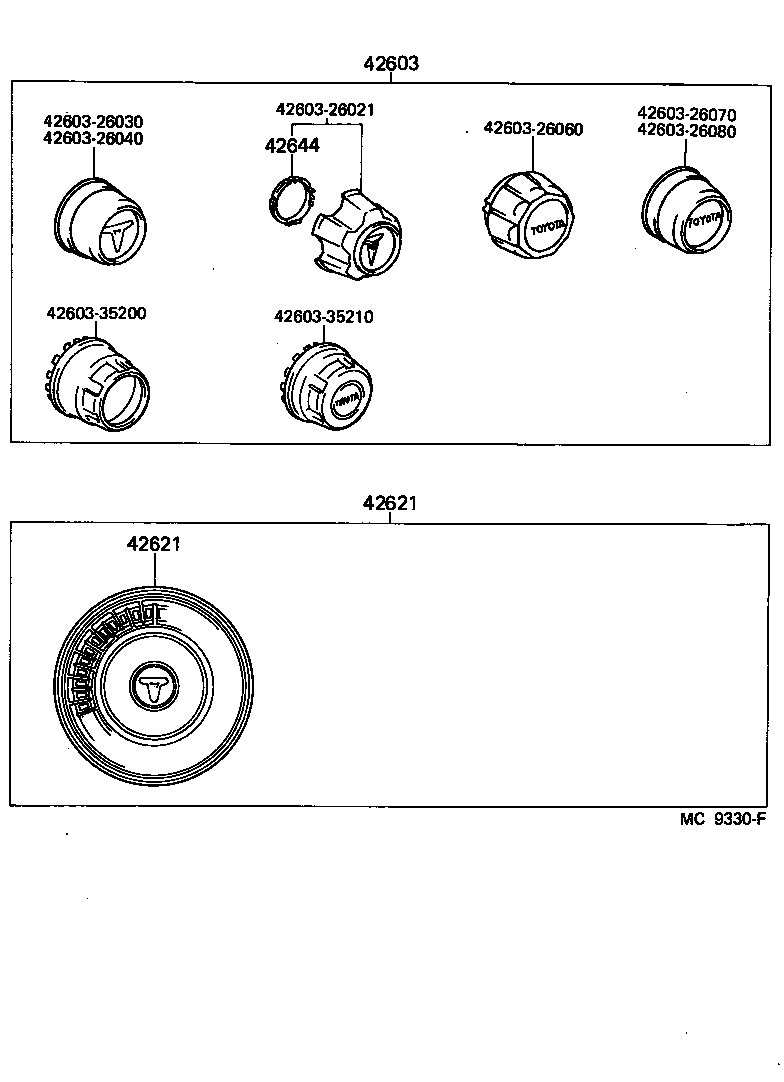

ILLUST NO. 1 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-26021 |
LH50,YH51..CTM,SCM 195SR14 TIRE |
4 | ||
| 42603-26040 |
LH5#,YH51..CTM,SCM |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-26150 |
LH50,YH51..WG |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-26150 |
LH50,YH51..WG |
4 | ||
| 42644 - HOLDER, WHEEL HUB ORNAMENT | ||||
| 42644-30050 |
LH50,YH51..CTM,SCM |
4 | ||
| Common parts | ||||
| 42603-26021 | ||||
| 42603-26030 | ||||
| 42603-26040 | ||||
| 42603-26060 | ||||
| 42603-26070 | ||||
| 42603-26080 | ||||
| 42603-35200 | ||||
| 42603-35210 | ||||

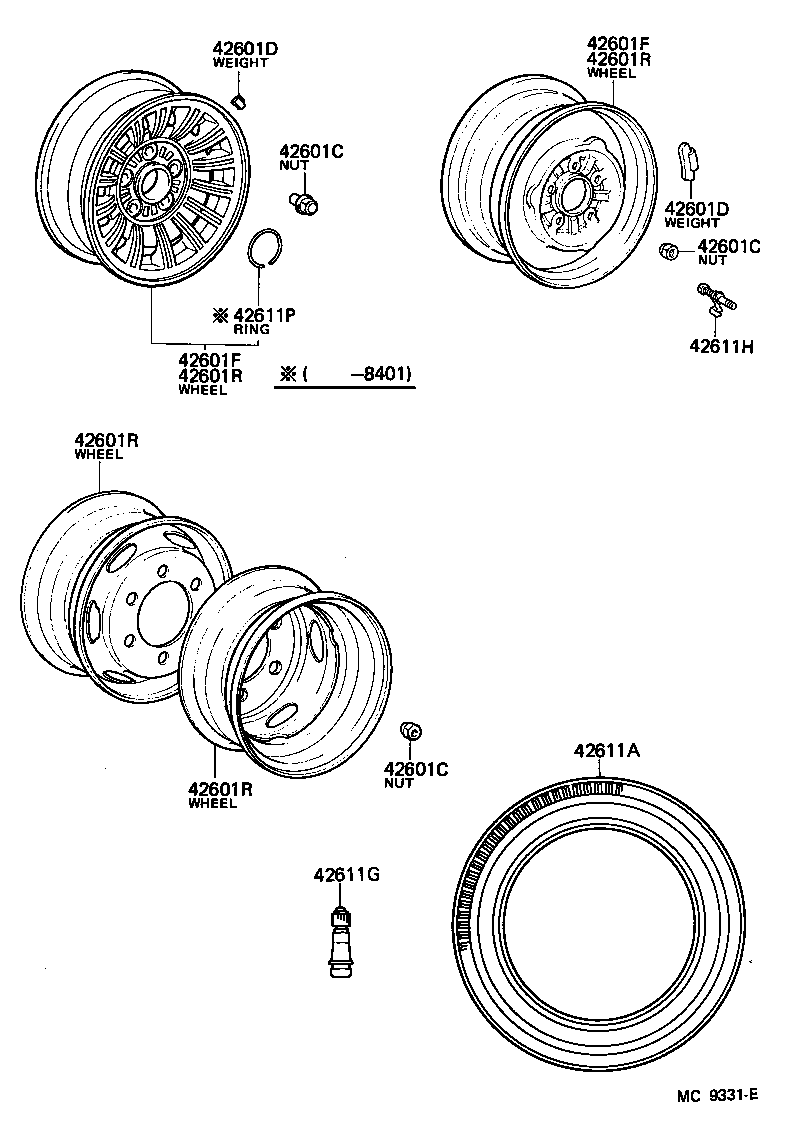

ILLUST NO. 2 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
LH50,YH51..WG STD NUT |
20 | ||
| 90942-01027 |
LH5#,6#,7#,YH5#,6#,71 CAP NUT,BLACK |
20 | ||
| 90942-01021 |
LH5#,YH51 CAP NUT |
20 | ||
| 90942-01042 |
LH50,YH51..CTM,SCM W/ALUMI WHEEL |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
LH50,YH51..WG STD NUT |
20 | ||
| 90942-01027 |
LH5#,6#,7#,YH5#,6#,71 CAP NUT,BLACK |
20 | ||
| 90942-01021 |
LH5#,YH51 CAP NUT |
20 | ||
| 90942-01042 |
LH50,YH51..CTM,SCM W/ALUMI WHEEL |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
LH50,YH51..WG STD NUT |
20 | ||
| 90942-01027 |
LH5#,6#,7#,YH5#,6#,71 CAP NUT,BLACK |
20 | ||
| 90942-01021 |
LH5#,YH51 CAP NUT |
20 | ||
| 90942-01042 |
LH50,YH51..CTM,SCM W/ALUMI WHEEL |
20 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03095 |
LH50,YH51..CTM,SCM 40G,40G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
LH50,YH51..CTM,SCM 60G,60G,ALUMI WHEEL |
1 | ||
| 90942-03096 |
LH50,YH51..CTM,SCM 50G,50G,ALUMI WHEEL |
1 | ||
| 90942-03092 |
LH50,YH51..CTM,SCM 10G,10G,ALUMI WHEEL |
1 | ||
| 90942-03093 |
LH50,YH51..CTM,SCM 20G,20G,ALUMI WHEEL |
1 | ||
| 90942-03017 |
LH50,51,60,61,7#,YH5#,6#,71 20G,厚さ=8,20G |
1 | ||
| 90942-03022 |
LH50,51,60,61,7#,YH5#,6#,71 40G,厚さ=9.5,40G |
1 | ||
| 90942-03094 |
LH50,YH51..CTM,SCM 30G,30G,ALUMI WHEEL |
1 | ||
| 90942-03041 |
LH50,51,60,61,7#,YH5#,6#,71 10G,厚さ=7.5,10G |
1 | ||
| 90942-03029 |
LH50,51,60,61,7#,YH5#,6#,71 70G,厚さ=9.5,70G |
1 | ||
| 90942-03020 |
LH50,51,60,61,7#,YH5#,6#,71 30G,厚さ=10,30G |
1 | ||
| 90942-03027 |
LH50,51,60,61,7#,YH5#,6#,71 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
LH50,51,60,61,7#,YH5#,6#,71 80G,厚さ=9.5,80G |
1 | ||
| 90942-03025 |
LH50,51,60,61,7#,YH5#,6#,71 50G,厚さ=9.5,50G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03095 |
LH50,YH51..CTM,SCM 40G,40G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
LH50,YH51..CTM,SCM 60G,60G,ALUMI WHEEL |
1 | ||
| 90942-03096 |
LH50,YH51..CTM,SCM 50G,50G,ALUMI WHEEL |
1 | ||
| 90942-03092 |
LH50,YH51..CTM,SCM 10G,10G,ALUMI WHEEL |
1 | ||
| 90942-03093 |
LH50,YH51..CTM,SCM 20G,20G,ALUMI WHEEL |
1 | ||
| 90942-03017 |
LH50,51,60,61,7#,YH5#,6#,71 20G,厚さ=8,20G |
1 | ||
| 90942-03022 |
LH50,51,60,61,7#,YH5#,6#,71 40G,厚さ=9.5,40G |
1 | ||
| 90942-03094 |
LH50,YH51..CTM,SCM 30G,30G,ALUMI WHEEL |
1 | ||
| 90942-03041 |
LH50,51,60,61,7#,YH5#,6#,71 10G,厚さ=7.5,10G |
1 | ||
| 90942-03029 |
LH50,51,60,61,7#,YH5#,6#,71 70G,厚さ=9.5,70G |
1 | ||
| 90942-03020 |
LH50,51,60,61,7#,YH5#,6#,71 30G,厚さ=10,30G |
1 | ||
| 90942-03027 |
LH50,51,60,61,7#,YH5#,6#,71 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
LH50,51,60,61,7#,YH5#,6#,71 80G,厚さ=9.5,80G |
1 | ||
| 90942-03025 |
LH50,51,60,61,7#,YH5#,6#,71 50G,厚さ=9.5,50G |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
2 | ||
| 42601-3516201 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B,BLACK |
2 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
2 | ||
| 42601-3516201 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B,BLACK |
2 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
3 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71..ST 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601-35162 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
3 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71..ST 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601-35162 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
3 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71..ST 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601-35162 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
3 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71..ST 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601-35162 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B |
3 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-26090 |
LH5#,6#,YH51,61..WG 195SR14 |
5 | ||
| 42652-40030 |
LH5#,YH51..WG 205/70 SR14 |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
LH5#,6#,7#,YH5#,6#,71..ST |
5 | ||
| 42611P - RING, SET | ||||
| 90522-69001 |
LH50,YH51..CTM,SCM |
5 | ||

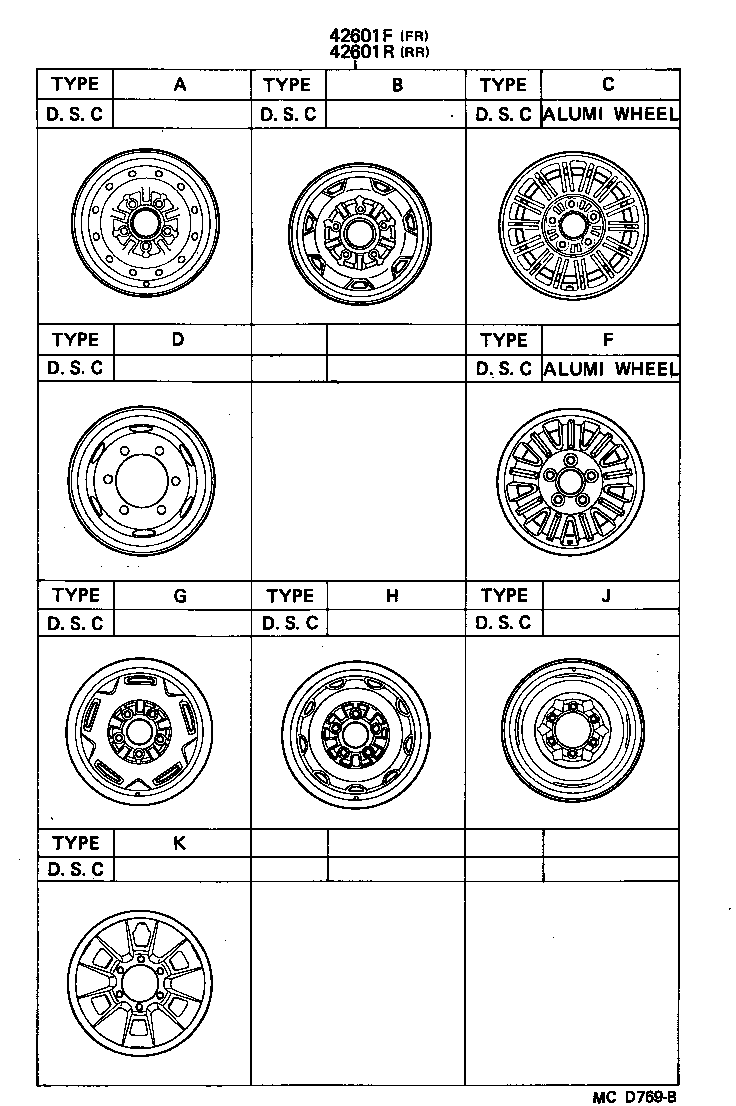

ILLUST NO. 3 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
2 | ||
| 42601-3516201 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B,BLACK |
2 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-26190 |
LH50,YH51..CTM,SCM 5.5JJ-14,ALUMI,TYPE C |
3 | ||
| 42601-26180 |
LH5#,6#,7#,YH5#,6#,71..ST 14X4.5J,5.5J-14,TYPE A |
3 | ||
| 42601-35162 |
LH5#,6#,YH51,61..WG 5.5JJ-14,TYPE B |
3 | ||
