YY101-PSMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)YY101

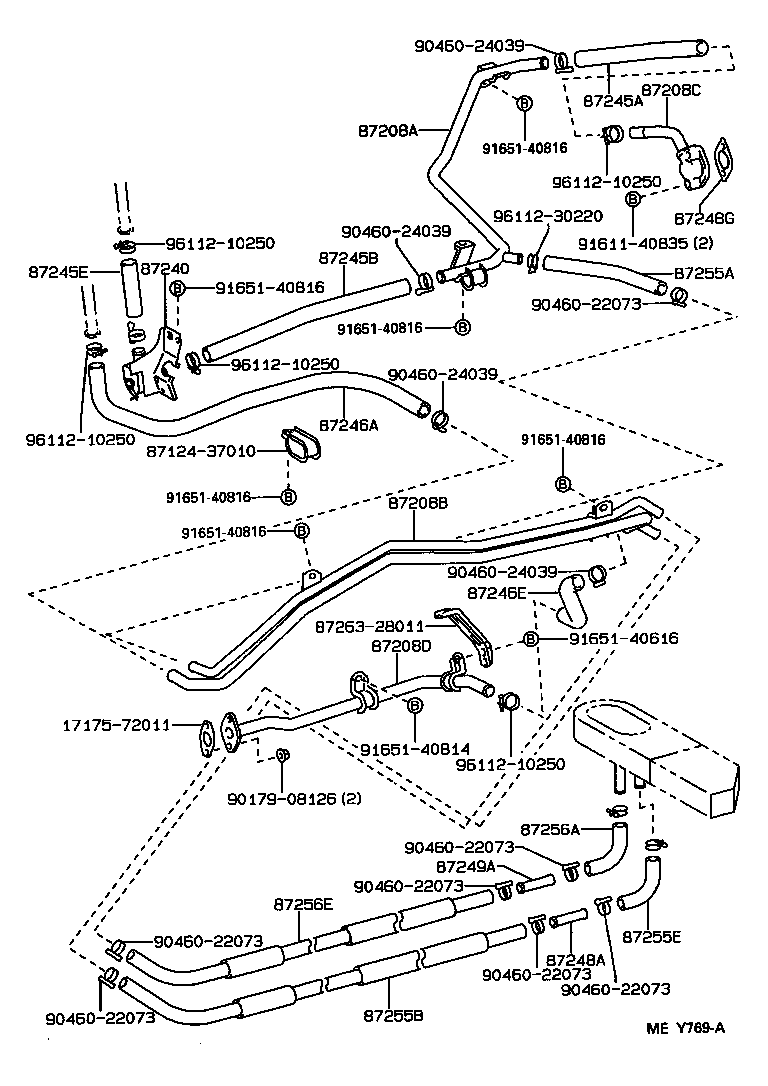

Click highlighted areas on diagram

diagram 1717572011 8712437010 87208A 87208B 87208C 87208D 87240 87245A 87245B 87245E 87246A 87246E 87248A 87248G 87249A 87255A 87255B 87255E 87256A 87256E 8726328011 9017908126 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9161140835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611230220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-25050

YY101

 1
87208-25070

YY101..TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-25080

YY101..TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208-25060

YY101

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-28500

YY101

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-28021

YY101

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

LY101,111,151,161,YY101

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY151,161,YY101

長さ=300

 1
99556-30300

YY101

長さ=300

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

YY101

長さ=500

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY101,111,151,161,YY101

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-31000

YY101

長さ=1000

 1
87245-25080

YY101

長さ=740

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25090

YY101

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95401

LY101,111,151,161,YY101..TW1,TW2

 1
87248G - GASKET, WATER INLET PIPE
11493-71011

YY101

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401

LY101,111,151,161,YY101..TW1,TW2

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-30300

YY101..TW2

長さ=300

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-25110

YY101..TW2

長さ=1040

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-92600

LY101,111,151,161,YY101..TW1,TW2

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600

LY101,111,151,161,YY101..TW1,TW2

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-25120

LY101,111,151,161,YY101..TW1,TW2

長さ=960

 1
Common parts
17175-72011
87124-37010
87263-28011
90179-08126
90460-22073
90460-24039
91611-40835
91651-40616
91651-40814
91651-40816
96112-10250
96112-30220
