YY101-PSMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

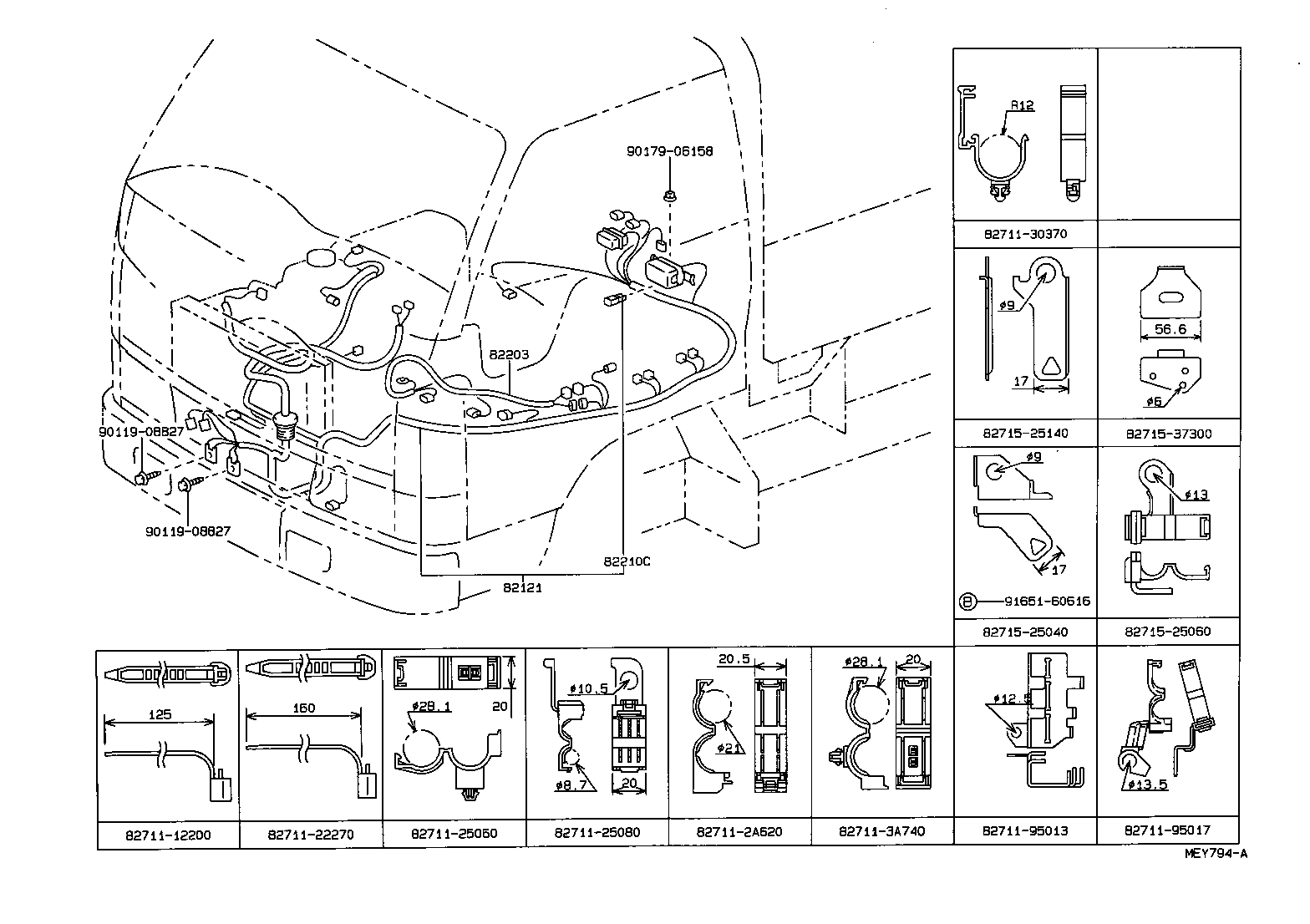

ILLUST NO. 1 OF 5(9505-9610)YY101

Click highlighted areas on diagram

diagram 82121 82203 82210C 8271112200 8271122270 8271125060 8271125080 827112A620 8271130370 827113A740 8271195013 8271195017 8271525040 8271525060 8271525140 8271537300 9011908827 9011908827 9017906158 9165160616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-26281

YY101

 1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-26050

YY101

 1
82210C - FUSIBLE LINK
90982-08202

LY101,111,151,161,YY101

60A,ｵｽ端子,黄

 1
90982-08189

LY101,111,151,161,YY101

40A,ﾒｽ端子,緑

 1
Common parts
82711-12200
82711-22270
82711-25060
82711-25080
82711-2A620
82711-30370
82711-3A740
82711-95013
82711-95017
82715-25040
82715-25060
82715-25140
82715-37300
90119-08827
90179-06158
91651-60616

ILLUST NO. 2 OF 5(9505-9610)

Click highlighted areas on diagram

COWL,INSTRUMENT PANEL WIRE

diagram 82131 82141 82666A 827112B640 8271132610 8271137080 8271137090 8271537350 8271537470 9011906390 9011906390 9011906595 9011906595 9095006001 9162140616 9356715016 9359056014
Part # Description Qty Price
82131 - WIRE, COWL
82131-26013

YY101

 1
82131-26292

YY101

ｱﾘ(*PW) OR ｱﾘ(*EL)

 1
82141 - WIRE, INSTRUMENT PANEL
82141-25010

LY101,111,YY101

 1
82141-37020

LY101,111,YY101

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-)

 1
82666A - HOLDER, CONNECTOR NO.2
82666-95D00

LY101,111,151,161,YY101

 2
Common parts
82711-2B640
82711-32610
82711-37080
82711-37090
82715-37350
82715-37470
90119-06390
90119-06595
90950-06001
91621-40616
93567-15016
93590-56014

ILLUST NO. 3 OF 5(9505-9610)

Click highlighted areas on diagram

DOOR,ROOF,FLOOR WIRE

diagram 82151 82152 82162 82163 82163A 82171 8271122270 827112B660 827113H370 8271237010 82817U 82817X 82817X 82821A 9048030320
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-25080

LY101,111,151,161,YY101

ｱﾘ(*EL)

 1
82151-37090

LY101,111,151,161,YY101

ｱﾘ(*PW & *EL)

 1
82151-37080

LY101,111,151,161,YY101

ｱﾘ(*PW)

 1
82152 - WIRE, FRONT DOOR, LH
82152-37130

LY101,111,151,161,YY101

ｱﾘ(*PW)

 1
82152-25060

LY101,111,151,161,YY101

ｱﾘ(*EL)

 1
82152-37140

LY101,111,151,161,YY101

ｱﾘ(*PW & *EL)

 1
82162 - WIRE, FLOOR, NO.2
82162-37020

LY101,111,151,161,YY101..TW1,TW2

 1
82163 - WIRE, FLOOR, NO.3
82163-37011

LY101,111,151,161,YY101..TW1,TW2

 1
82163A - WIRE, FLOOR, NO.4
82163-95010

LY101,111,151,161,YY101..TW1,TW2

 1
82171 - WIRE, ROOF, NO.1
82171-37110

LY101,111,151,161,YY101..TW1,TW2

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-28640

LY101,111,151,161,YY101..TW1,TW2

 1
82817-28640

LY101,111,151,161,YY101..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 2
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-28640

LY101,111,151,161,YY101..TW1,TW2

 1
82817-28640

LY101,111,151,161,YY101..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 2
82821A - COVER, CONNECTOR
82821-37020

LY101,111,151,161,YY101

 1
Common parts
82711-22270
82711-2B660
82711-3H370
82712-37010
90480-30320

ILLUST NO. 4 OF 5(9505-9610)

Click highlighted areas on diagram

BODY WIRE

diagram 82164 8271112200 8271122270 8271125030 8271137050 8271195A06 8271528430 9011908827 9011908827 9011908A46 9046310012 9046310032 9046315003
Part # Description Qty Price
82164 - WIRE, FRAME
82164-26072

YY101..T3,TW2

 1
Common parts
82711-12200
82711-22270
82711-25030
82711-37050
82711-95A06
82715-28430
90119-08827
90119-08A46
90463-10012
90463-10032
90463-15003

ILLUST NO. 5 OF 5(9505-9610)YY101

Click highlighted areas on diagram

CABLE BOND

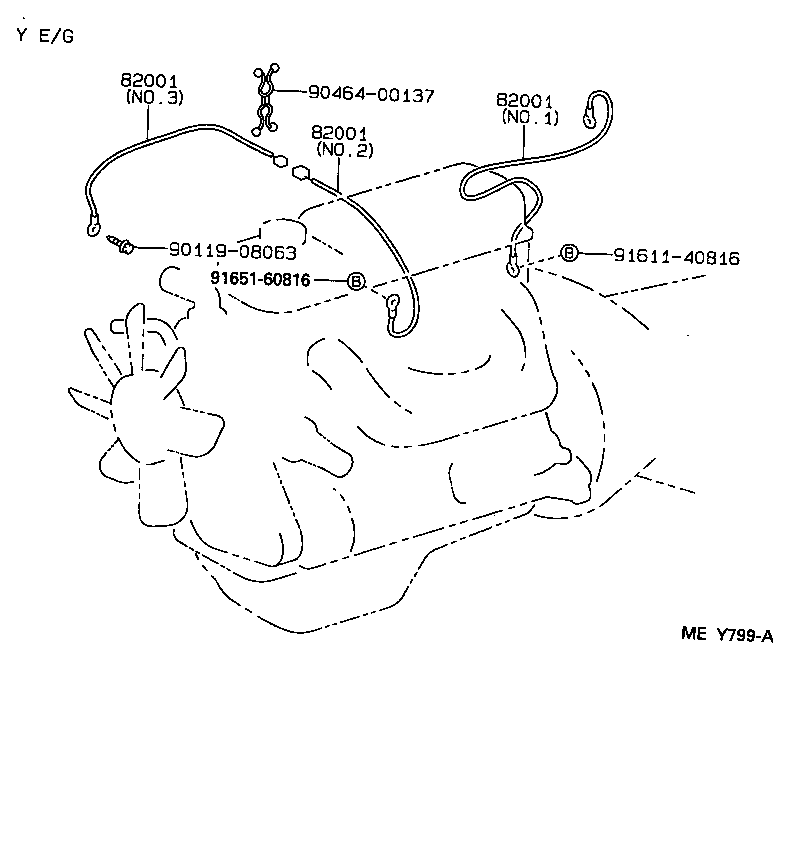

diagram 82001 82001 82001 9011908063 9046400137 9161140816 9165160816
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07181

YY101

NO.1

 1
90980-07317

YY101

NO.3

 1
90980-07325

YY101

NO.2

 1
82001 - CABLE, BOND, NO.1
90980-07181

YY101

NO.1

 1
90980-07317

YY101

NO.3

 1
90980-07325

YY101

NO.2

 1
82001 - CABLE, BOND, NO.1
90980-07181

YY101

NO.1

 1
90980-07317

YY101

NO.3

 1
90980-07325

YY101

NO.2

 1
Common parts
90119-08063
90464-00137
91611-40816
91651-60816
