YY101-PSMAS (1995)
Toyota Hiace Truck

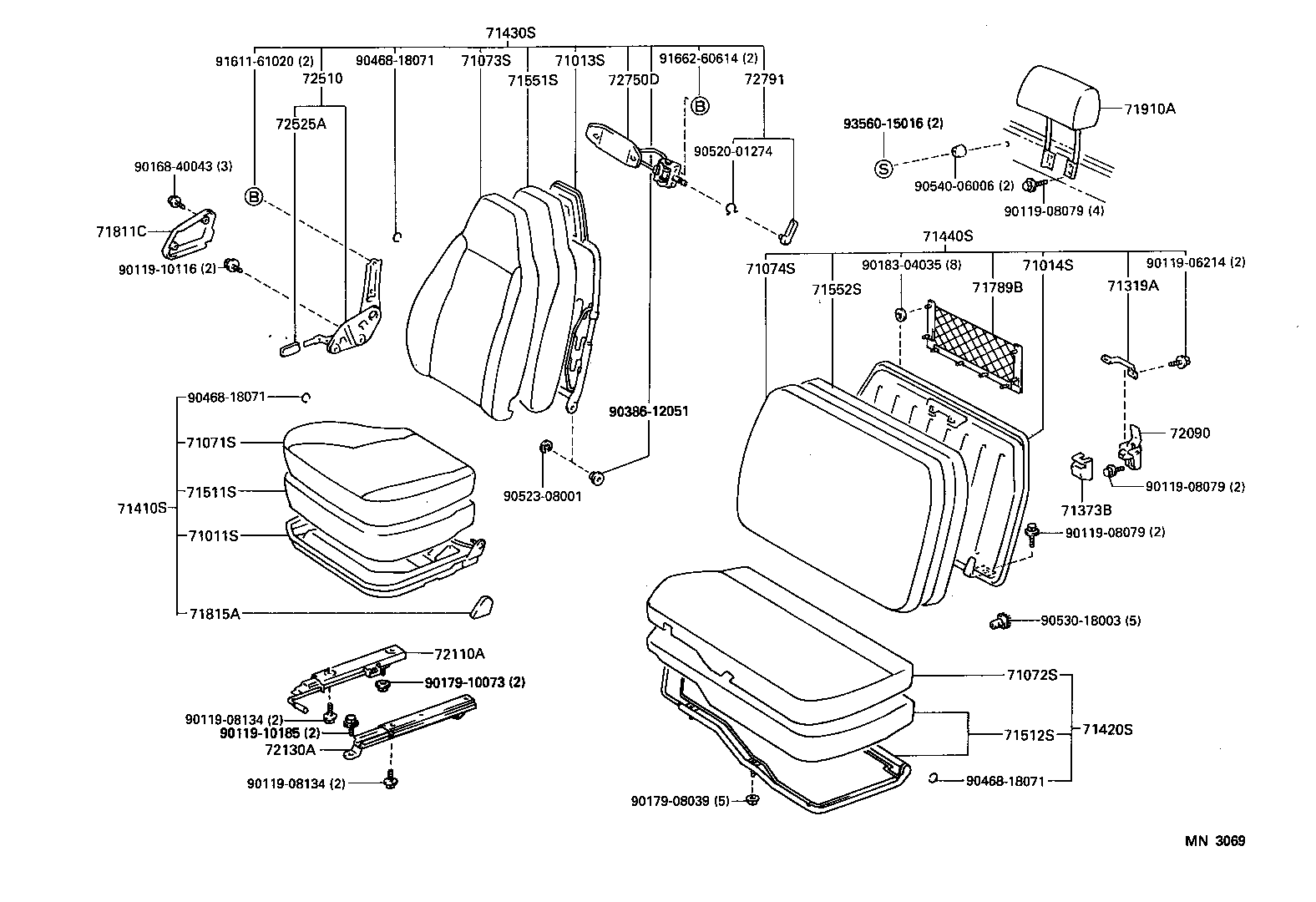

ILLUST NO. 1 OF 2(9505- )TW1,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-37020 |
LY101,111,151,161,YY101 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-37060 |
LY101,111,151,161,YY101 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-9541801 |
LY101,111,151,161,YY101..TW1,TW2 BLACK,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37160B0 |
LY101,111,151,161,YY101 BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37400B0 |
LY101,111,151,161,YY101 BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37330B0 |
LY101,111,151,161,YY101..TW1,TW2 BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37550B0 |
LY101,111,151,161,YY101..TW1,TW2 BLUISH GRAY,TRIM1# |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95404 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-95400B0 |
LY101,111,151,161,YY101..TW1,TW2 GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37270B0 |
LY101,111,151,161,YY101 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37400B0 |
LY101,111,151,161,YY101 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37380B0 |
LY101,111,151,161,YY101..TW1,TW2 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37620B0 |
LY101,111,151,161,YY101..TW1,TW2 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37020 |
LY101,111,151,161,YY101 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-37020 |
LY101,111,151,161,YY101 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37040 |
LY101,111,151,161,YY101 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-95403 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71789B - POCKET, FRONT SEAT BACK BOARD | ||||
| 71789-22010 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J00B0 |
LY101,111,151,161,YY101 BLUISH GRAY,TRIM1# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J00B0 |
LY101,111,151,161,YY101 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26020B1 |
LY101,111,151,161,YY101..TW1,TW2 GRAY,TRIM1# |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-95400B0 |
LY101,111,151,161,YY101..TW1,TW2 GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
LY101,111,151,161,YY101 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
LY101,111,151,161,YY101 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37010B0 |
LY101,111,151,161,YY101 BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LY101,111,151,161,YY101 BLUISH GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37010 |
LY101,111,151,161,YY101 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20030B0 |
LY101,111,151,161,YY101 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90183-04035 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 90530-18003 | ||||
| 90540-06006 | ||||
| 91611-61020 | ||||
| 91662-60614 | ||||
| 93560-15016 | ||||
ILLUST NO. 2 OF 2(9505- )TW1,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-37080B0 |
LY101,111,151,161,YY101..TW1,TW2 BLUISH GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-37080B0 |
LY101,111,151,161,YY101..TW1,TW2 BLUISH GRAY,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-95401 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-95401 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71308C - LEG SUB-ASSY, REAR SEAT, FRONT | ||||
| 71308-95400 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95011 |
LY101,111,151,161,YY101..TW1,TW2 |
2 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-95400 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95A31 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-37100B0 |
LY101,111,151,161,YY101..TW1,TW2 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-37080B0 |
LY101,111,151,161,YY101..TW1,TW2 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-37010 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71611-95401 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
LY101,111,151,161,YY101..TW1,TW2 |
6 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-95404 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-95400 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-95402 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH | ||||
| 71777-95400 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH | ||||
| 71778-95400 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LY101,111,151,161,YY101..TW1,TW2 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LY101,111,151,161,YY101..TW1,TW2 |
2 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90109-08157 | ||||
| 90109-10084 | ||||
| 90119-10185 | ||||
| 90119-10258 | ||||
| 90119-10395 | ||||
| 90206-12035 | ||||
| 90468-18071 | ||||
| 90506-23037 | ||||
| 90523-06017 | ||||
| 93311-16010 | ||||
