YY101-PSMAS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3Y
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )T1,TW2

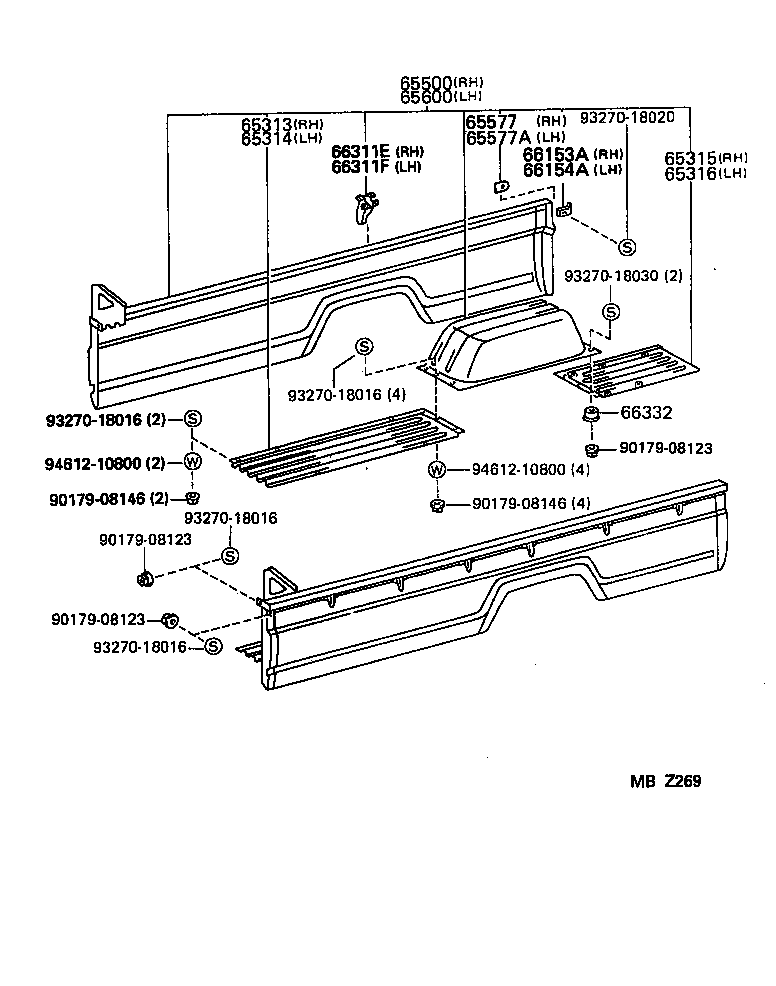

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65313 - PANEL, FLOOR FRONT CORNER, RH | ||||
| 65313-25020 |
LY101,151,YY101..TW2 |
1 | ||
| 65314 - PANEL, FLOOR FRONT CORNER, LH | ||||
| 65314-25030 |
LY101,151,YY101..TW2 |
1 | ||
| 65315 - PANEL, FLOOR REAR CORNER, RH | ||||
| 65315-25010 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 65316 - PANEL, FLOOR REAR CORNER, LH | ||||
| 65316-25010 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-25080 |
LY101,151,YY101..TW2 |
1 | ||
| 65577 - RETAINER, TAIL GATE LATCH FEMALE | ||||
| 65577-95012 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 65577A - RETAINER, TAIL GATE FEMALE | ||||
| 65577-95012 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-25080 |
LY101,151,YY101..TW2 |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-95012 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 66154A - LATCH, TAIL GATE FEMALE, LH | ||||
| 66153-95012 |
LY101,151,YY101..T1,TW2 |
1 | ||
| 66311E - HOOK, ROPE | ||||
| 66311-90K00 |
LY101,151,YY101..TW2 |
4 | ||
| 66311F - HOOK, ROPE, NO.2 | ||||
| 66311-90K00 |
LY101,151,YY101..TW2 |
4 | ||
| 66332 - CUSHION, RUBBER | ||||
| 66332-95A00 |
LY101,151,YY101..T1,TW2 |
4 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 93270-18016 | ||||
| 93270-18020 | ||||
| 93270-18030 | ||||
| 94612-10800 | ||||
