YY101-PSMAS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3Y
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )3Y

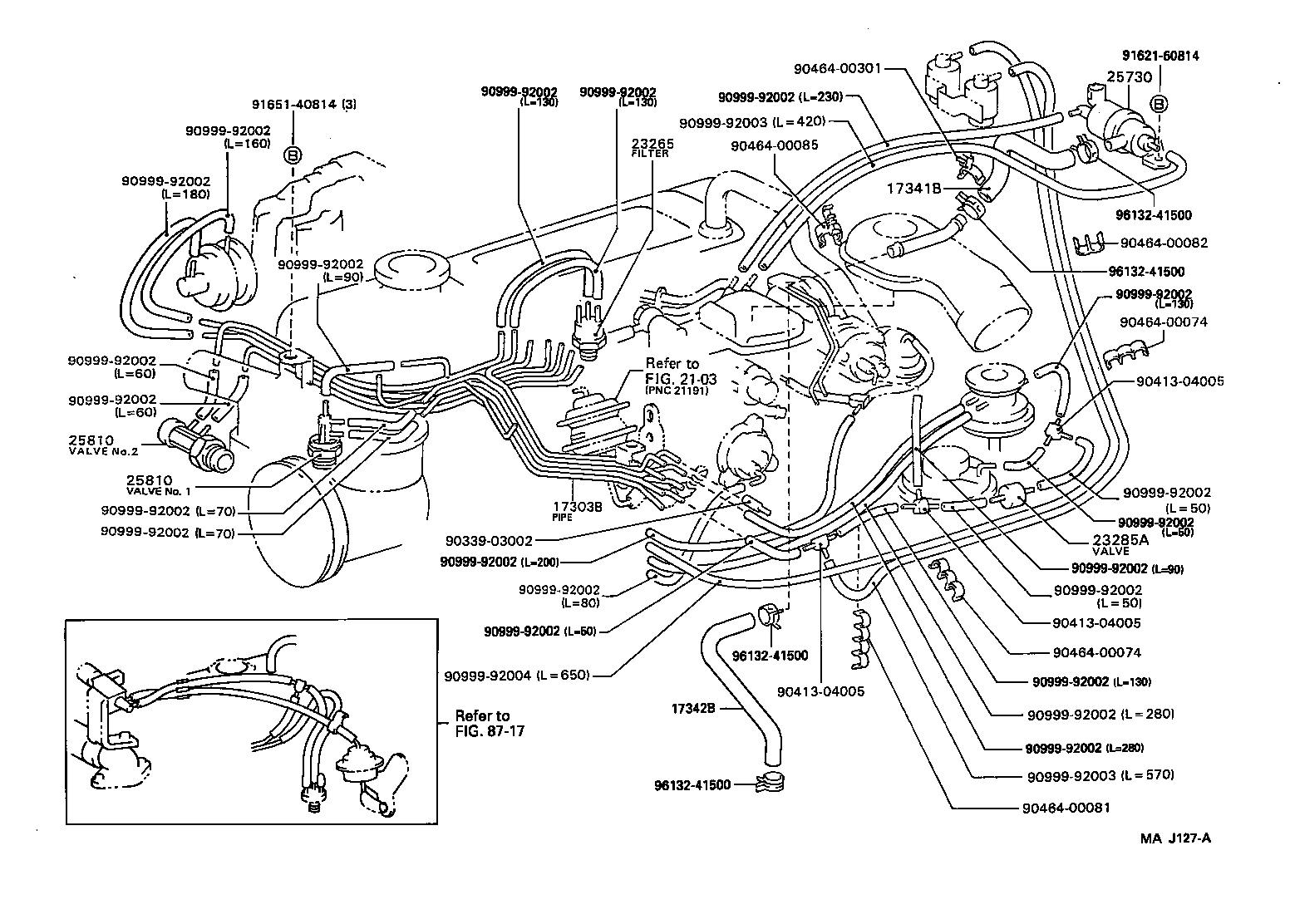

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(9505- )3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71011 |
3Y..YY101 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-73100 |
3Y..YY101 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-73090 |
3Y..YY101 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3Y..YY101 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3Y..YY101 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-73030 |
3Y..YY101 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
3Y..YY101 NO.1 |
1 | ||
| 25820-37010 |
3Y..YY101 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
3Y..YY101 NO.1 |
1 | ||
| 25820-37010 |
3Y..YY101 NO.2 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00085 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91621-60814 | ||||
| 91651-40814 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2103 | ||||
| 8717 | ||||
