YY101-PSMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

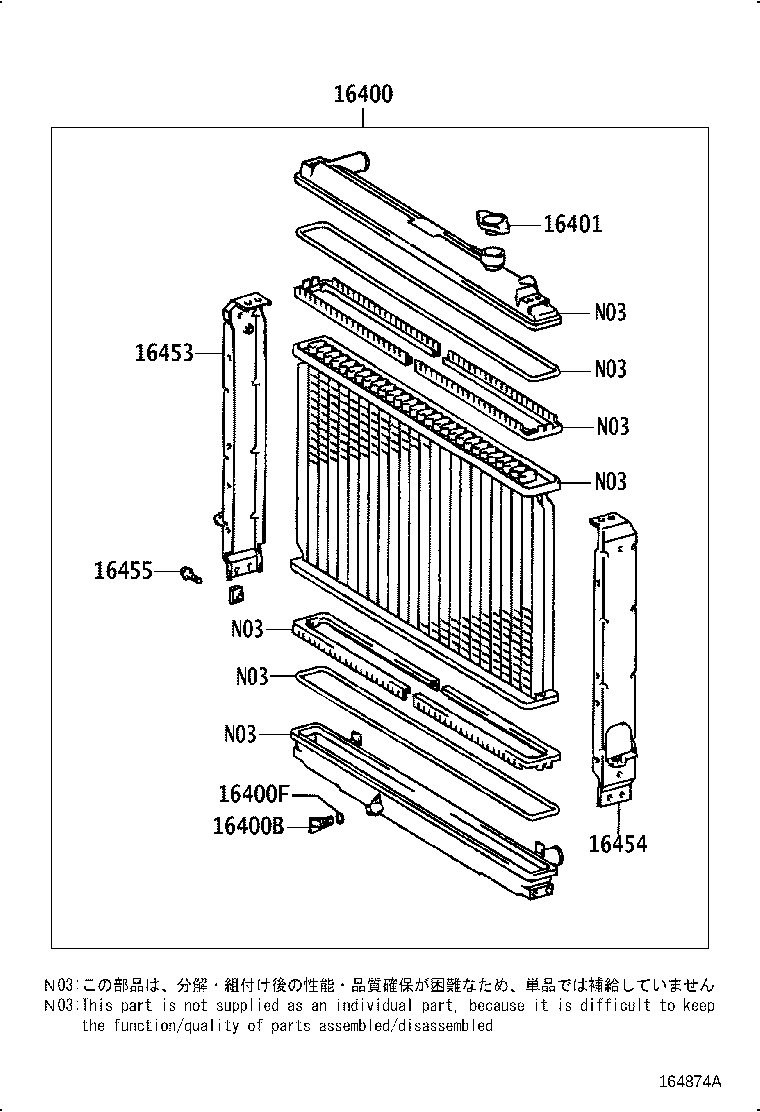

ILLUST NO. 2 OF 2(9505- )3Y

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16453 16454 16455
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-73460

3Y..YY101

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

3Y..YY101

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

3Y..YY101

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

3Y..YY101

 1
16453 - PLATE, RADIATOR SIDE
16453-73460

3Y..YY101

 1
16454 - PLATE, RADIATOR SIDE
16454-73460

3Y..YY101

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67020

3Y..YY101

 8

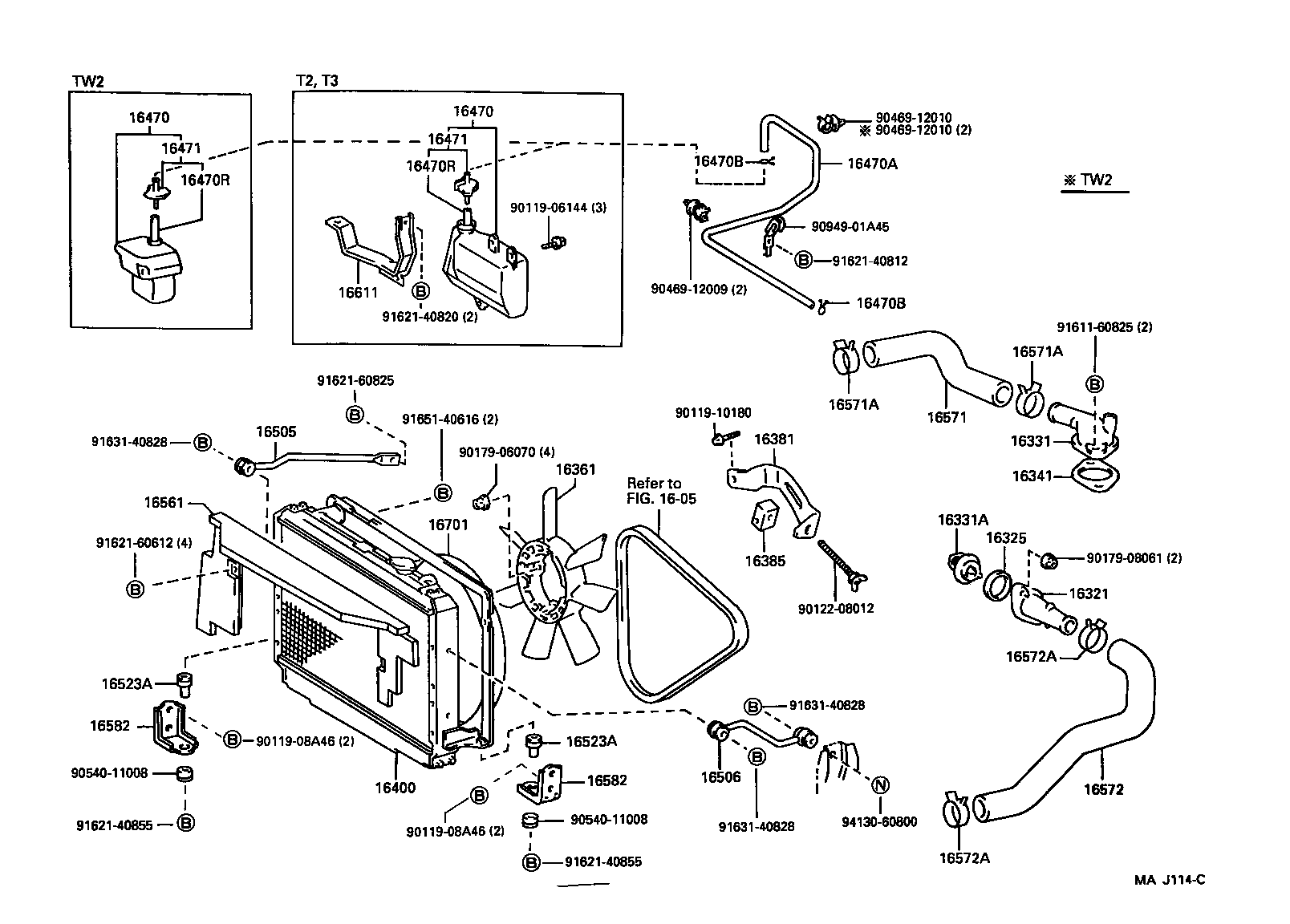

ILLUST NO. 1 OF 2(9505- )3Y

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16470 16470 16470A 16470B 16470B 16470R 16470R 16471 16471 16505 16506 16523A 16523A 16561 16571 16571A 16571A 16572 16572A 16572A 16582 16582 16611 16701 9011906144 9011908A46 9011908A46 9011910180 9012208012 9017906070 9017908061 9046912009 9046912010 9046912010 9054011008 9054011008 9094901A45 9161160825 9162140812 9162140820 9162140855 9162140855 9162160612 9162160825 9163140828 9163140828 9163140828 9165140616 9413060800
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

3Y..YY101

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3Y..YY101

 1
16331 - OUTLET, WATER
16331-71010

3Y..YY101

 1
16331A - THERMOSTAT
90916-03046

3Y..YY101

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71011

3Y..YY101

 1
16361 - FAN
16361-38010

3Y..YY101

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

3Y..YY101

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

3Y..YY101

 1
16400 - RADIATOR ASSY
16400-73460

3Y..YY101

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58080

3Y..YY101..TW2

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58080

3Y..YY101..TW2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-54130

3Y..YY101..TW2

長さ=1550

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3Y..YY101

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3Y..YY101

 2
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

3Y..YY101..TW2

長さ=600

 1
90445-12078

3Y..YY101..TW2

長さ=600

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

3Y..YY101..TW2

長さ=600

 1
90445-12078

3Y..YY101..TW2

長さ=600

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-58060

3Y..YY101..TW2

 1
16405-58050

3Y..YY101..TW2

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-58060

3Y..YY101..TW2

 1
16405-58050

3Y..YY101..TW2

 1
16505 - SUPPORT SUB-ASSY, RADIATOR, RH
16505-54020

3Y..YY101

 1
16506 - SUPPORT SUB-ASSY, RADIATOR, LH
16506-54010

3Y..YY101

 1
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3Y..YY101

 2
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3Y..YY101

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-71010

3Y..YY101

 1
16571 - HOSE, RADIATOR, INLET
16571-73120

3Y..YY101

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3Y..YY101

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3Y..YY101

 2
16572 - HOSE, RADIATOR, OUTLET
16572-73100

3Y..YY101

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

3Y..YY101

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

3Y..YY101

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54030

3Y..YY101

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54030

3Y..YY101

 2
16701 - SHROUD SUB-ASSY, FAN
16711-73120

3Y..YY101

 1
Common parts
90119-06144
90119-08A46
90119-10180
90122-08012
90179-06070
90179-08061
90469-12009
90469-12010
90540-11008
90949-01A45
91611-60825
91621-40812
91621-40820
91621-40855
91621-60612
91621-60825
91631-40828
91651-40616
94130-60800
Linked diagrams
1605
