YY101-PSMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3Y

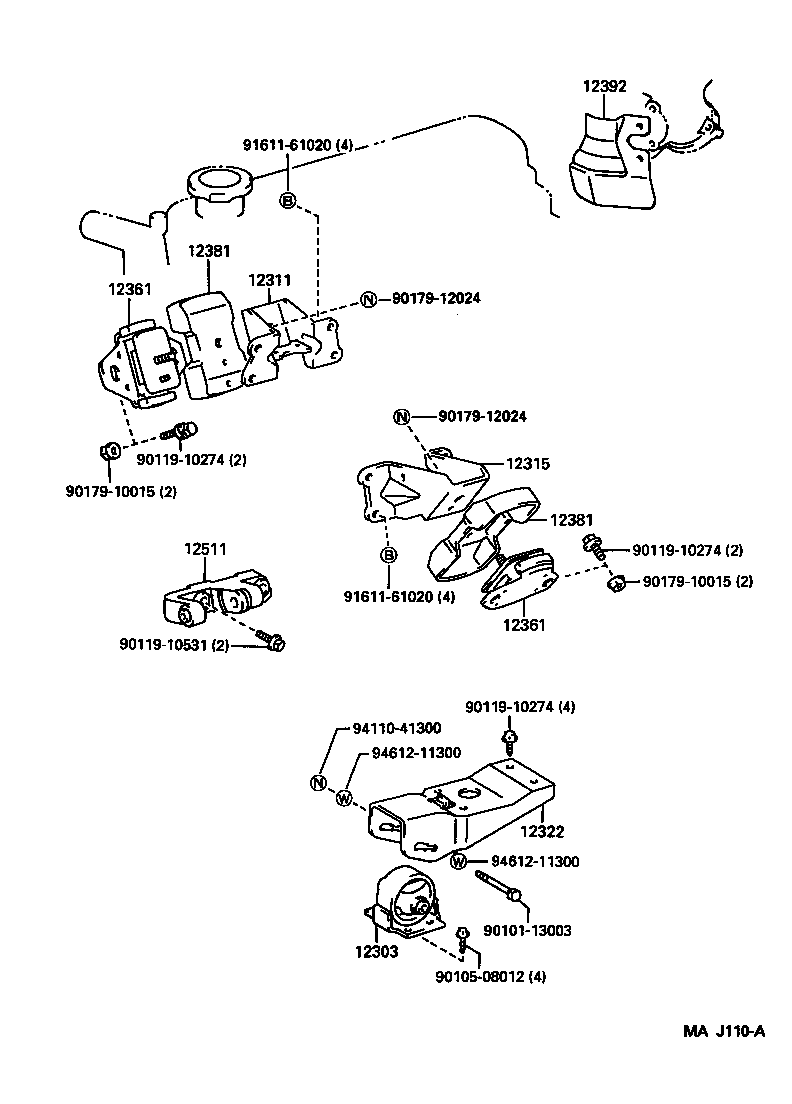

Click highlighted areas on diagram

diagram 12303 12311 12315 12322 12361 12361 12381 12381 12392 12511 9010113003 9010508012 9011910274 9011910274 9011910274 9011910531 9017910015 9017910015 9017912024 9017912024 9161161020 9161161020 9411041300 9461211300 9461211300
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-67020

3Y..YY101

 1
12303-67021

3Y..YY101

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3Y..YY101

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3Y..YY101

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

3Y..YY101

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

3Y..YY101

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

3Y..YY101

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

3Y..YY101

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

3Y..YY101

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

3Y..YY101

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

3Y..YY101

 1
Common parts
90101-13003
90105-08012
90119-10274
90119-10531
90179-10015
90179-12024
91611-61020
94110-41300
94612-11300
